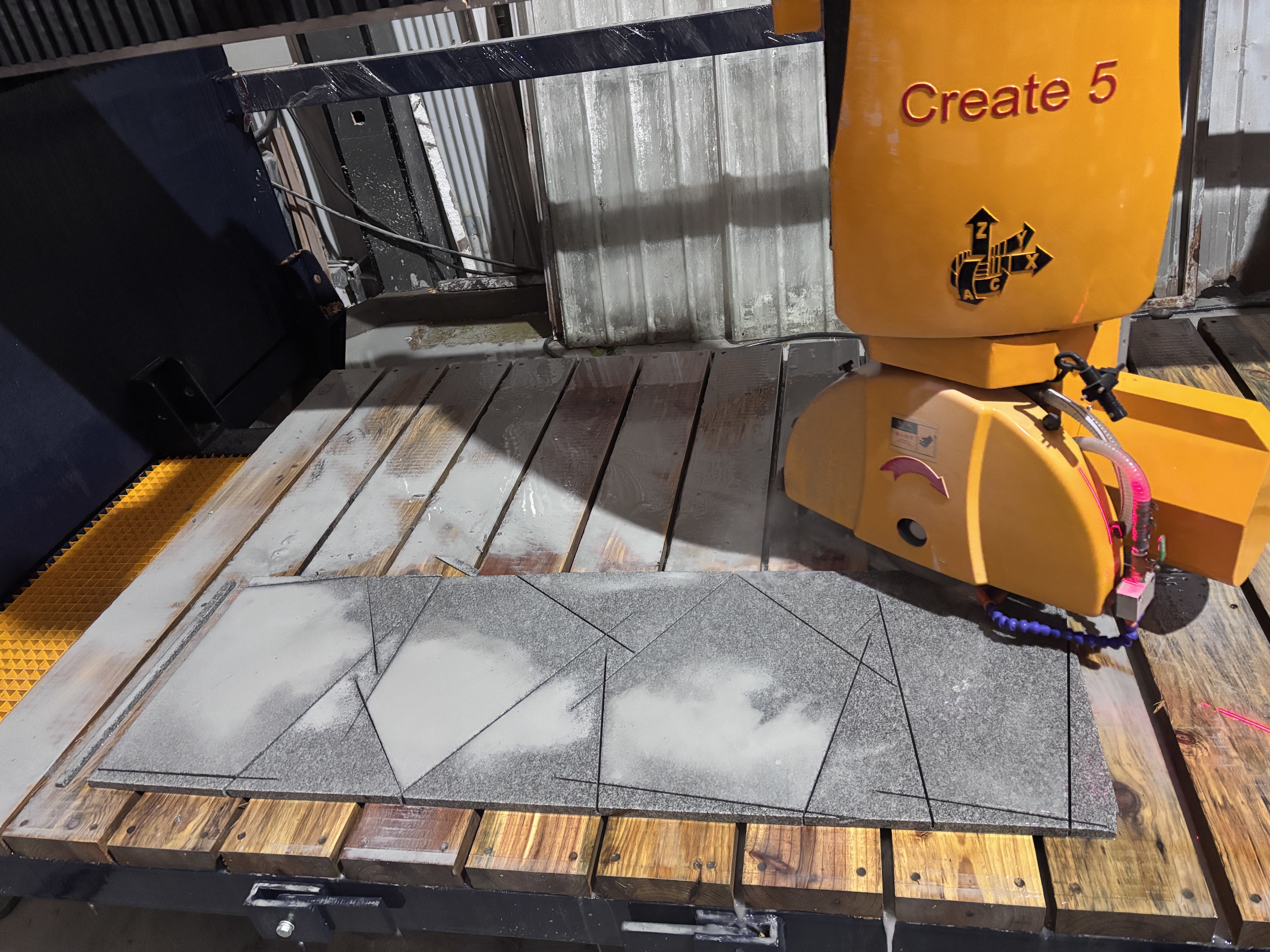

5 Axis CNC Stone Bridge Saw – Advanced Slab Processing Center
Engineered for precision architectural stonework and custom countertop fabrication, this compact 5-axis CNC bridge cutting system combines full five-axis linkage with high-rigidity mechanical components. Designed for complex three-dimensional shaping, curved panel profiling, sink cutouts, and mitered edge creation, it ensures peak operational stability and repeatable accuracy while reducing labor overhead in modern fabrication facilities.
Product Features & Mechanical Advantages
Synchronized 5-Axis Linkage Control – Delivers fluid multi-directional movement for straight cuts, compound bevels, circular contours, and intricate 3D architectural profiles.
Precision Linear Motion Architecture – Equipped with high-grade linear guideways, precision ball screws, and an oil-sealed rail system to minimize mechanical wear and absorb operational vibration.
Power-Loss Coordinate Retention – Absolute bus servo motors safeguard precise spatial data, eliminating re-zeroing procedures and preventing material loss during unannounced power outages.
Compact Footprint, High Output – Maximizes floor-space efficiency without compromising structural stability or heavy-duty cutting capacity.
Intelligent Operational Interface – Streamlined digital controls lower the learning curve for operators while improving daily throughput and edge-finishing consistency.
The XIANDA 5-axis bridge cutting machine totally changes how stone works—due to its advanced 5-axis CNC system and stable build. It’s made for all those complex designs, like curved panels, countertops, washbasins, and custom edges. And it’s not just precise—it stays steady and reliable too.
It’s small in size but packs a punch when it comes to function. For fabricators, this machine makes work way more efficient, cuts down on manual labor, and lets you crank out top-quality stuff without any hassle.
Description
The XIANDA 5-axis bridge cutting machine is a brand-new solution for stone processing, built to handle what modern workshops need. It has a top-notch 5-axis CNC control system, so even when you're cutting complex stone designs, it moves smooth, stays accurate, and gets the job done fast.
It comes with high-precision linear guides, ball screw transmission, and an oil-immersed track. All that makes the machine run steady, last a long time, and hold up well over years of use. There's also this absolute bus servo with power-off memory—fancy terms, but basically, even if the power goes out, it doesn't lose its place. That means less downtime and more work getting done.
This machine can do all sorts of jobs: curved panels, vanity tops, washbasins, and those tricky detailed edges. It's got lots of functions but doesn't take up much space, and the controls are easy to figure out. For fabricators, that means making more stuff without sacrificing quality.
Xianda 5 axis bridge cutting machine your best stone cutting machine solution.
Technical data
| Parameter | Unit | Create 600 |
|---|
| Blade diameter range | mm | Φ350-Φ600 |
| Max processing size | mm | 3500*2000*180 |
| Lifting stroke | mm | 500 |
| Worktable size | mm | 3500*2000 |
| Table tilting degree | ° | 0,85° |
| Head rotating degree | ° | 0~360° |
| Head tilting degree | ° | 0~90° |
| Air speed | m/min | 25 |
| Repeated accuracy of positioning | mm | ＜0.1mm/1000 |
| Main motor | kw | 22(Permanent magnet motor) |
| Gross power | Kw | 30 |
| Water consumption | mm³/h | ≈2 |
| Outline dimension | Mm | 5850*3650*3750 |
| Gross weight | Kg | ≈8000 |
5 Axis CNC Stone Bridge Saw – Frequently Asked Questions (FAQ)
Q1: What materials can the 5-axis CNC bridge cutting machine process?
A: It is engineered to handle a wide range of natural and engineered stones, including granite, marble, quartz, sintered stone, quartzites, and porcelain slabs.
Q2: What cutting operations can the 5-axis linkage system perform?
A: Unlike 3-axis or 4-axis saws, full 5-axis linkage enables multi-directional blade and tool movement. It executes straight rips, mitered edge bevels (0°--90°), 360° circular contours, sink cutout profiling, arc cutting, and complex 3D architectural shapes.
Production lead time
Within 15–30 days of receiving the deposit.
Quality Control
- We have our own experienced QC.
- Our machine will be strictly inspected.
- We will provide a Testing Video for each machines before shipping out if required by customer.
Warranty
The equipment and its components are covered by a one-year warranty.
Why Xianda being reliable?
Since its establishment in 1985, the company has always aimed at "top technology and excellent quality" and has won many certifications such as ISO Quality Gold Award and CE. Xianda has won many titles such as "China Recommended Construction Manufacturing Enterprise" and "3A Enterprise Credit Rating".
