Granite Laser Stone Cutting Machine 380V Bridge Cutting Machine

1
MOQ
To Be Negotiable
Price
Granite Laser Stone Cutting Machine 380V Bridge Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: ZDQJ-600
Control: PLC
Blade Diameter: Φ300-Φ600
Max Processing Size: 3200*2000*180mm
Dimension Of Worktable: 3200*2000mm
Workable Tilting Degree: 0-85°
Worktable Rotation Degree(Optional): 0-90° / 0-360°
Main Motor: 18.5kw
Gross Motor: 24kw
Water Consumption: 4m3/H
Outline Dimension: 6000*4800*3100mm
Gross Weight: 5500kg
Transport Package: Load In A 20 Feet Container
Specification: 6000*4800*3100mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Bridge Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Highlight:

Granite Laser Stone Cutting Machine

,

380V Bridge Cutting Machine

,

Laser Stone Cutting Machine 380V
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API
Model Number: ZDQJ-600
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/Year
Product Description
Granite Laser Stone Cutting Machine 380V Bridge Cutting Machine
Product Specifications
Attribute Value
Model NO. ZDQJ-600
Control PLC
Blade Diameter Φ300-Φ600
Max Processing Size 3200*2000*180mm
Dimension of Worktable 3200*2000mm
Workable Tilting Degree 0-85°
Worktable Rotation Degree(Optional) 0-90° / 0-360°
Main Motor 18.5kw
Gross Motor 24kw
Water Consumption 4m3/H
Outline Dimension 6000*4800*3100mm
Gross Weight 5500kg
Transport Package Load in a 20 Feet Container
Specification 6000*4800*3100mm
Trademark UNIQUE
Origin Jinjiang, Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
Type Bridge Cutting Machine
Usage Granite
Application Machinery & Hardware
Source Voltage 380V
Automation Automatic
Cutting Ability High Speed
Customization Available
Product Overview
Granite Laser Stone Cutting Machine 380V Bridge Cutting Machine 0

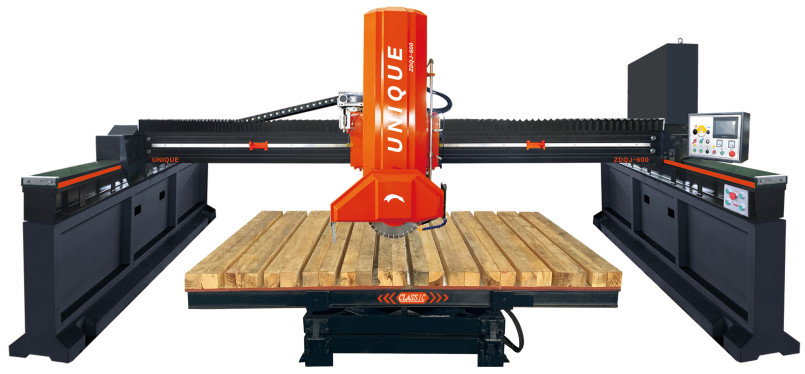

The ZDQJ-450 infrared automatic stone bridge cutting machine features three types, utilizing a PLC system with human-machine interface. It incorporates ultra-high precision rotary encoder positioning and infrared devices, with Chinese & English dual operation language. The machine uses an inverter to control left-right feeding, adjusting speed according to stone material, and features a hydraulic lifting system equipped through 4 guide posts with unique side beam protection.
Main spare parts utilize imported high-quality materials. The machine delivers high cutting efficiency, precision, and stability, with easy operation - ideal for high-value granite and large-size marble processing.
Bridge cutting machine, stone cutting machine, bridge saw
Technical Parameters
Parameter Unit ZDQJ-450 ZDQJ-600 ZDQJ-700
Blade diameter mm 300-450 350-600 350-700
Max processing size mm 3200*2000*120 3200*2000*180 3200*2000*230
Dimension of worktable mm 3200*2000 3200*2000 3200*2000
Worktable tilting degree ° 0-85° 0-85° 0-85°
Worktable rotation degree ° 0-90°/0-360° 0-90°/0-360° 0-90°/0-360°
Main motor kw 15 18.5 18.5
Gross motor kw 21 24 24
Water consumption m³/h 4 4 4
Outline dimension mm 6000*4800*2900 6000*4800*3100 6000*4800*3200
Gross weight kg 5250 5500 5750
Our Service
  • Training for machine installation and operation
  • Engineers available for overseas machinery service
  • 24-hour online after-sales support
For any inquiries, please contact our sales or customer service departments at any time.
