Home /Products/Bridge Saw Cutting Machine/Bridge Multi Blade Block Cutting Machine Granite Marble Stone Cutter

Bridge Multi Blade Block Cutting Machine Granite Marble Stone Cutter

1
MOQ
To Be Negotiable
Price
Bridge Multi Blade Block Cutting Machine Granite Marble Stone Cutter
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: BTC-2200
Cutting Ability: High Speed
Control: PLC
Color: Black And Yellow
Max Blade Diameter: 2500mm/2800mm
Max Processing Length: 3000/3200/3500mm
Max Processing Width: 2200/2500mm
Max Lifting Travel: 1100/1300mm
Main Motor: 37/45/55kw
Gross Motor: 47/56/66kw
Water Consumption: 15m³/H
Gross Weight: 12000/14000/14500kgs
Specification: 7350/7850x4500/4800x3400/3700mm
Trademark: UNIQUE
Origin: Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Warranty: 12 Months
Type: Bridge Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Customization: Available | Customized Request
Highlight:

Granite Stone Cutter 3200mm

,

Block Cutting Machine 2500mm

,

Granite Stone Cutter 3500mm
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: ISO
Model Number: BTC-2200
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/Year
Product Description
Bridge Multi Blade Block Cutting Machine Granite Marble Stone Cutter
Product Specifications
Attribute Value
Model NO. BTC-2200
Cutting Ability High Speed
Control PLC
Color Black and Yellow
Max Blade Diameter 2500mm/2800mm
Max Processing Length 3000/3200/3500mm
Max Processing Width 2200/2500mm
Max Lifting Travel 1100/1300mm
Main Motor 37/45/55kw
Gross Motor 47/56/66kw
Water Consumption 15m³/H
Gross Weight 12000/14000/14500kgs
Specification 7350/7850x4500/4800x3400/3700mm
Trademark UNIQUE
Origin Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
Warranty 12 Months
Type Bridge Cutting Machine
Usage Granite
Application Machinery & Hardware
Source Voltage 380V
Automation Automatic
Customization Available
Product Description

Multi-blade large stone block cutting machine for marble and granite blocks

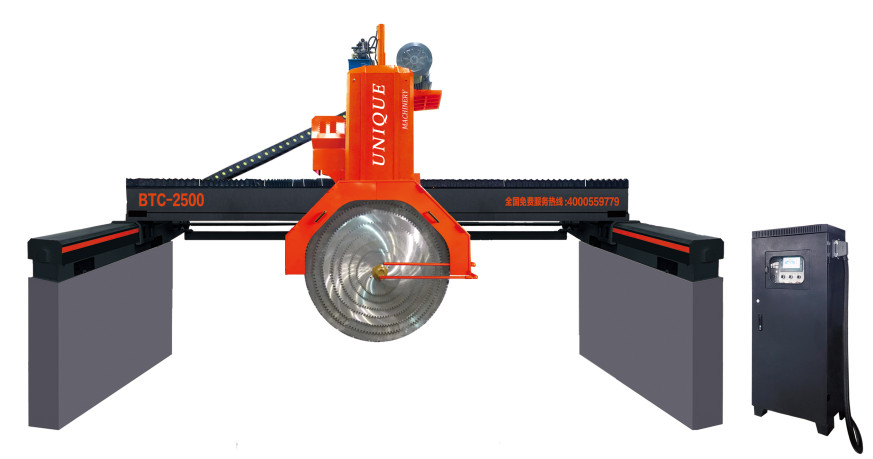

Bridge Multi Blade Block Cutting Machine Granite Marble Stone Cutter 0

The BTC-2500/2800 uses an inverter to control left-right feeding and adjusts speed according to the stone material. It features:

  • Hydraulic lifting system (screw lifting system optional)
  • High-precision screw nut driving for forward-backward slicing
  • Automatic slicing operation
  • Main spare parts made from imported high-quality materials
  • Blocks can be placed directly on the ground, eliminating need for worktables
  • High cutting efficiency and slicing precision
  • Excellent plate flatness after cutting
  • High stability and easy operation
  • Specially designed for cutting granite and marble blocks with high wave
Technical Parameters
Parameter Unit BTC-2500 BTC-2800
Max blade diameter mm φ2500 φ2800
Max processing length mm 3000/3500 3200
Max processing width mm 2200/2500 2200/2500
Max lifting stroke mm 1100/1300 1300
Main motor kw 37/45/55 45/55
Gross motor kw 47/56/66 56/66
Outline dimension mm 7350/7850x4500/4800x3400/3700 7800x4500/4800x3700
Water consumption m³/h 15 15
Gross weight kg 12000/14000 14500
Certifications
Bridge Multi Blade Block Cutting Machine Granite Marble Stone Cutter 1
Our Services
Machine testing video available before shipment
32 years of manufacturing experience with over 70% market share in China for special shape stone cutting machines
Top 5 stone cutting machine manufacturer with ISO & CE certification
Products exported to more than 20 countries with over 10 years overseas experience
Competitive pricing and quantity discounts available
Annual production capacity exceeding 1000 sets
24-hour online after-sales support
Professional installation guidance and operator training
Dedicated quality complaint resolution team
Frequently Asked Questions
Does this product support customization?
Yes, we offer customization options for this machine.
How do you ship the products?
We arrange professional shipping for all orders.
What is the warranty for the product?
This product comes with a 12-month warranty.
