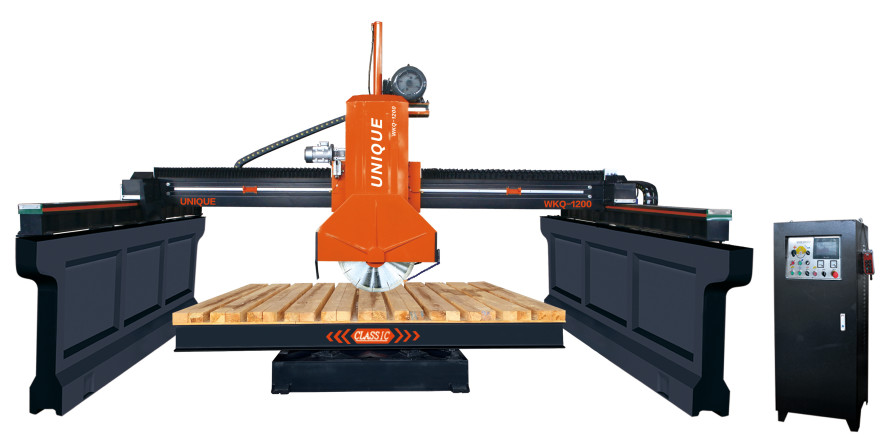

Middle Block Bridge Saw Cutting Machine 3200x2000mm

1
MOQ
To Be Negotiable
Price
Middle Block Bridge Saw Cutting Machine 3200x2000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: WKQ-1200
Control: PLC
Blade Diameter: Φ300-Φ450
Max Processing Size: 3200*2000**4500mm
Dimension Of Worktable: 3200*2000mm
Workable Tilting Degree: 0-85°
Worktable Rotation Degree(Optional): 0-90°
Main Motor: 28kw
Gross Motor: 22kw
Water Consumption: 4m3/H
Outline Dimension: 6000*4800*4400mm
Gross Weight: 6850
Transport Package: Load In A 20 Feet Container
Specification: 6000*4800*2900mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Bridge Cutting Machine
Usage: Granite
Application: Construction
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Highlight:

Middle Block Bridge Saw Cutting Machine

,

bridge saw tile cutter 28kw

,

Bridge Saw Cutting Machine 3200x2000mm
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API
Model Number: WKQ-1200
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/Year
Product Description
Middle Block Bridge Saw Cutting Machine 3200x2000mm
Product Specifications
Attribute Value
Model NO. WKQ-1200
Control System PLC
Blade Diameter Φ300-Φ450
Max Processing Size 3200×2000×4500mm
Worktable Dimension 3200×2000mm
Workable Tilting Degree 0-85°
Worktable Rotation Degree (Optional) 0-90°
Main Motor Power 28kw
Gross Motor Power 22kw
Water Consumption 4m³/H
Machine Dimensions 6000×4800×4400mm
Gross Weight 6850kg
Transport Package 20 Feet Container
Voltage Requirement 380V
Automation Automatic
Cutting Ability High Speed
Customization Available
Product Description

The WKQ-1200 Middle Block Bridge Saw Cutting Machine features an optimized structural design with PLC control system and human-machine interface. This industrial-grade stone cutting solution offers:

  • Bilingual operation (Chinese/English) with infrared device
  • Ultra-high precision rotary encoder for accurate cutting
  • Inverter-controlled left-right feeding with adjustable speed
  • Hydraulic lifting system with slide plate mechanism
  • Unique side beam protection device
  • Premium imported components for enhanced durability

Ideal for cutting shaped stone products, tombstones, and curb stones with high efficiency and stability.

Technical Parameters
Parameter Unit Value
Blade Diameter mm 1200
Max Lifting Distance mm 760
Worktable Dimension mm 3200×2000
Worktable Tilting Degree ° 0-85°
Worktable Rotation Degree ° 0-90°/0-360°
Main Motor Power kw 22
Gross Motor Power kw 28
Water Consumption m³/h 4
Machine Dimensions mm 6400×4800×4400
Gross Weight kg 6800
Keywords: stone cutting machine, bridge saw, stone machinery, stone cutter
After-Sales Service
Professional machine installation and operation training
Overseas engineer support available
24-hour online after-sales service
Frequently Asked Questions
Customization options available
Standard shipping in 20-foot containers
Comprehensive warranty coverage
For any inquiries, please contact our sales or customer service department. We respond promptly to all questions.
