Bridge Granite Block Cutting Machine 300mm To 450mm

1
MOQ
To Be Negotiable
Price
Bridge Granite Block Cutting Machine 300mm To 450mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: WKQ-1200
Control: PLC
Blade Diameter: Φ300-Φ450
Dimension Of Worktable: 3200*2000mm
Worktable Rotation Degree(Optional): 0-90°
Main Motor: 22kw
Gross Motor: 29kw
Water Consumption: 4m3/H
Outline Dimension: 6200*4800*4400mm
Gross Weight: 6800kg
Transport Package: Load In A 20 Feet Container
Specification: 6000*4800*2900mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Bridge Cutting Machine
Usage: Granite
Application: Construction
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Highlight:

granite block cutting machine 300mm

,

stone block cutting machine 450mm

,

granite block cutting machine 450mm
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API
Model Number: WKQ-1200
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/Year
Product Description
Bridge Granite Block Cutting Machine 300mm To 450mm
Product Specifications
Attribute Value
Model NO. WKQ-1200
Control PLC
Blade Diameter Φ300-Φ450
Dimension of Worktable 3200*2000mm
Worktable Rotation Degree (Optional) 0-90°
Main Motor 22kw
Gross Motor 29kw
Water Consumption 4m3/H
Outline Dimension 6200*4800*4400mm
Gross Weight 6800kg
Transport Package Load in a 20 Feet Container
Specification 6000*4800*2900mm
Trademark UNIQUE
Origin Jinjiang, Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
Type Bridge Cutting Machine
Usage Granite
Application Construction
Source Voltage 380V
Automation Automatic
Cutting Ability High Speed
Customization Available
Product Description

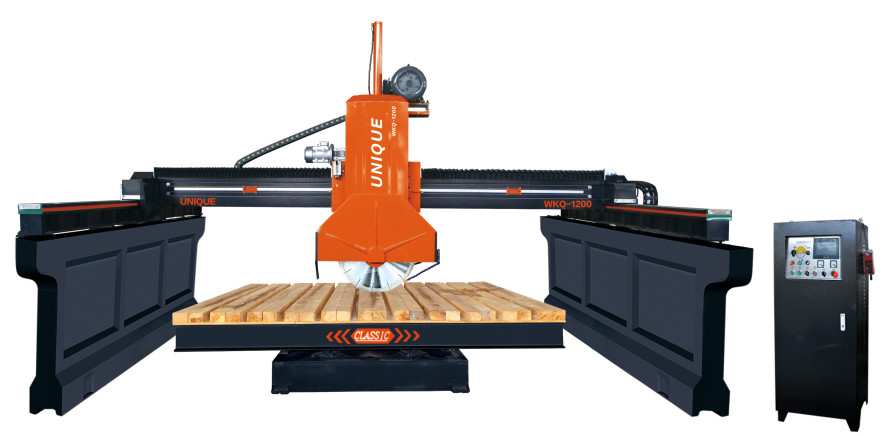

Middle block stone cutting machine & stone machine & bridge saw, which is designed with reasonable structure, featuring:

  • PLC system with Human-machine interface
  • Chinese & English dual operation language
  • Infrared device for precision
  • Ultra-high precision rotary encoder
  • Inverter-controlled left-right feeding with speed adjustment
  • Hydraulic lifting system with slide plate
  • Unique side beam protection device
  • Main spare parts made from imported high-quality materials

The machine features high cutting efficiency, excellent stability, easy operation, and is specially designed for cutting shaped stone products, tombstones, and curb stones.

Technical Parameters
Parameter Unit WKQ-1200
Blade diameter mm 1200
Max Lifting Distance mm 760
Dimension of worktable mm 3200*2000
Worktable tilting degree ° 0-85°
Worktable rotation degree ° 0-90°/0-360°
Main motor kw 22
Gross motor kw 28
Water consumption m³/h 4
Outline dimension mm 6400*4800*4400
Gross weight kg 6800
Our Service
  • Training for machine installation and operation
  • Engineers available for overseas machinery service
  • 24-hour online after-sales service

If you have any problems, please contact our sales department or customer service department at any time.

Frequently Asked Questions
Does this product support customization?
How do you ship the products?
What is the warranty for the product?

Once we receive your question, our team will respond as soon as possible.
