Mono Block Laser Bridge Saw Cutting Machine Marble Granite Stone Slab

1
MOQ
To Be Negotiable
Price
Mono Block Laser Bridge Saw Cutting Machine Marble Granite Stone Slab
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: ZDBL-450
Control: PLC
Blade Diameter: Φ300-Φ600
Max Processing Size: 3200*2000*100mm
Dimension Of Worktable: 3200*2000mm
Workable Tilting Degree: 0-85°
Worktable Rotation Degree(Optional): 0-90° / 0-360°
Main Motor: 15kw
Gross Motor: 20.5kw
Water Consumption: 4m3/H
Outline Dimension: 5850*3500*2650mm
Gross Weight: 6500kg
Transport Package: Load In A 40 Feet Container
Specification: 5850*3500*2650mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Bridge Cutting Machine
Usage: Granite
Application: Construction
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Highlight:

Laser Bridge Saw Cutting Machine

,

Marble Granite stone slab cutting machine

,

15kw Bridge Saw Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API
Model Number: ZDBL-450
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/Year
Product Description
Mono Block Laser Bridge Saw Cutting Machine for Marble Granite Stone Slab
Product Specifications
Model NO. ZDBL-450
Control System PLC
Blade Diameter Φ300-Φ600
Max Processing Size 3200×2000×100mm
Worktable Dimension 3200×2000mm
Workable Tilting Degree 0-85°
Worktable Rotation Degree (Optional) 0-90° / 0-360°
Main Motor Power 15kw
Gross Motor Power 20.5kw
Water Consumption 4m³/H
Machine Dimensions 5850×3500×2650mm
Gross Weight 6500kg
Transport Package 40 Feet Container
Origin Jinjiang, Fujian, China
Supply Capacity 1000 Sets/Year
Product Overview

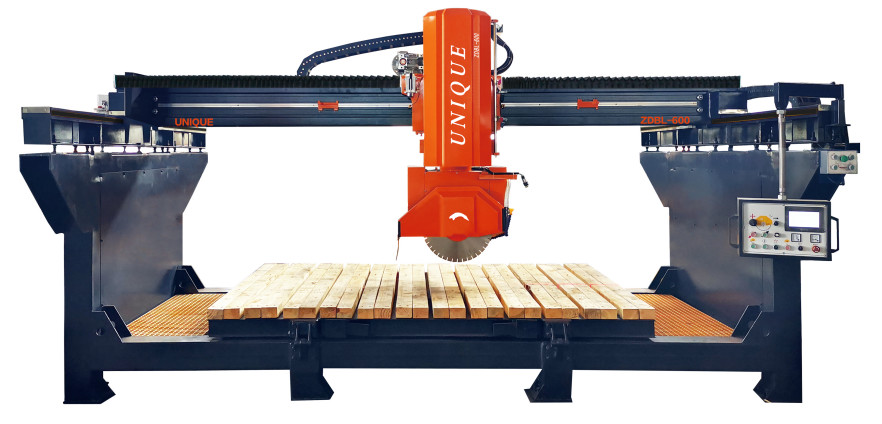

ZDBL-450 Mono-Block Laser Bridge CNC Cutting Machine

The ZDBL-450 is an integrated bridge cutting machine designed for precision cutting of marble and granite slabs. It features:

  • PLC control system with intelligent human-machine interface
  • Double hydraulic lifting mechanism with chrome guide sleeve for durability
  • Multi-layer sealed guide sleeve design for waterproof, dustproof operation
  • High-precision linear slide track with encoder control for accurate movement
  • Magnetic railing ruler for material-specific speed adjustment
  • Dedicated stone machinery motor with 0°-90° cutting head rotation
  • 0°-45° blade tilt capability for expanded application range
  • Compact structure for efficient, high-precision cutting
Technical Parameters
Parameter Unit ZDBL-450 ZDBL-600
Blade diameter mm 300-450 350-600
Max processing size mm 3200×2000×100 3200×2000×180
Worktable dimension mm 3200×2000 3200×2000
Worktable tilting degree ° 0-85° 0-85°
Main motor power kw 15 18.5
Gross motor power kw 21 24
Water consumption m³/h 4 4
Machine dimensions mm 6000×4800×2900 6000×4800×3100
Gross weight kg 5250 5500
Our Services
  • Comprehensive machine installation and operation training
  • Overseas engineering support for machinery servicing
  • 24/7 online after-sales service support
  • Dedicated customer service team available for immediate assistance
Frequently Asked Questions
Does this product support customization?

Yes, we offer customization options to meet specific requirements.

How do you ship the products?

Our machines are shipped in 40-foot containers with secure packaging.

What is the warranty for the product?

Please contact our sales department for specific warranty information.
