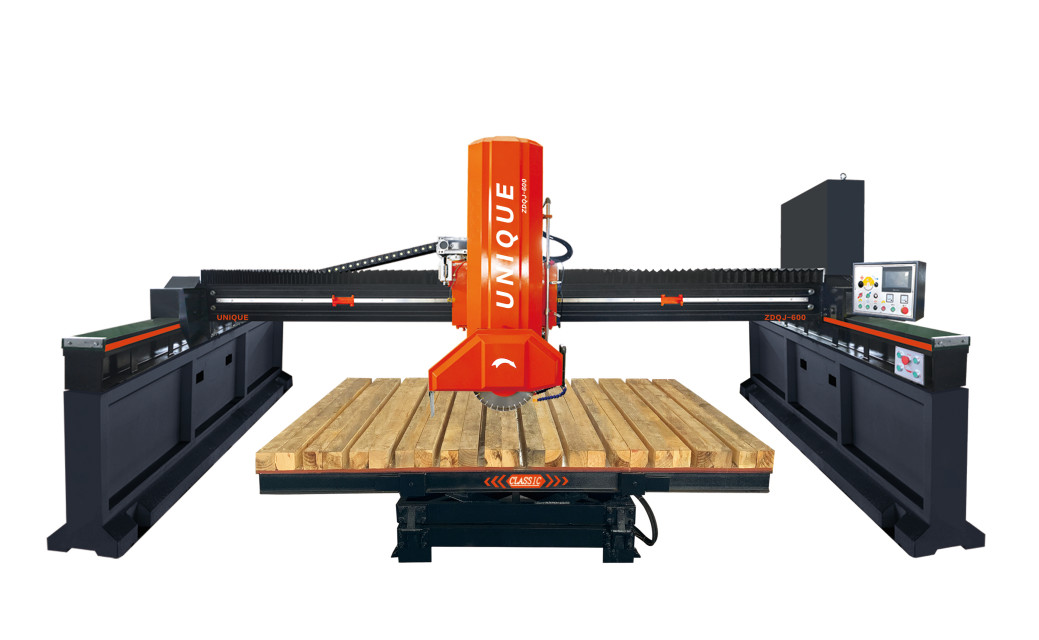

ZDQJ-450 infrared automatic stone bridge cutting machine has three type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
|
Parameter
|
Unit
|
ZDQJ-450
|
ZDQJ-600
|
ZDQJ-700
|
|
Blade diameter
|
mm
|
300-450
|
350-600
|
350-700
|
|
Max processing size
|
mm
|
3200*2000*120
|
3200*2000*180
|
3200*2000*230
|
|
Dimension of worktable
|
mm
|
3200*2000
|
3200*2000
|
3200*2000
|
|
Worktable tilting degree
|
°
|
0-85°
|
0-85°
|
0-85°
|
|
Worktable rotation degree
|
°
|
0-90°/0-360°
|
0-90°/0-360°
|
0-90°/0-360°
|
|
Main motor
|
kw
|
15
|
18.5
|
18.5
|
|
Gross motor
|
kw
|
21
|
24
|
24
|
|
Water consumption
|
m³/h
|
4
|
4
|
4
|
|
Outline dimension
|
mm
|
6000*4800*2900
|
6000*4800*3100
|
6000*4800*3200
|
|
Gross weight
|
kg
|
5250
|
5500
|
5750
|
