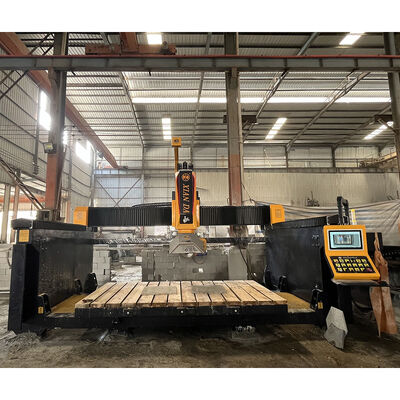

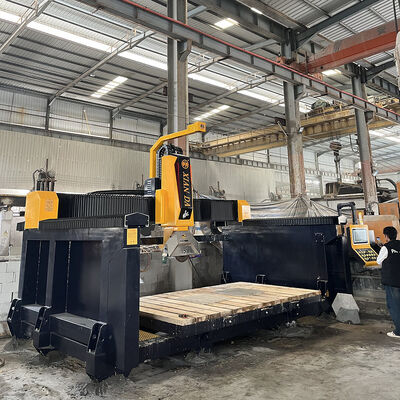

Xianda Create 600 Heavy Duty 5 Axis CNC Bridge Saw | For Long-Hour Heavy Cavity Milling, Artificial Stone Mold & Quartz Countertop Production

1 Set
MOQ
To Be Negotiable
Price
Xianda Create 600 Heavy Duty 5 Axis CNC Bridge Saw | For Long-Hour Heavy Cavity Milling, Artificial Stone Mold & Quartz Countertop Production
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: Heavy Duty Full 5 Axis CNC Bridge Saw
Applicable Materials: Granite, Marble, Quartz, Sintered Stone, Acrylic Board, Resin Mold Blank
Model Name: Xianda Create 600
Blade Diameter Range(mm): Φ350 - Φ600
Max Processing Size(mm): 3400×2000×180
Lifting Stroke(mm): 500
Worktable Size(mm): 3400×2000
Repeated Positioning Accuracy(mm): ＜0.1mm/1000
Main Motor(kw): 22 (Permanent Magnet Motor)
Gross Power(kw): 30
Water Consumption(m³/h): ≈2
Outline Dimension(mm): 5800×3650×3900
Gross Weight(kg): ≈8200
Highlight:

5 axis CNC bridge saw

,

heavy duty bridge saw machine

,

quartz countertop production saw
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CE, IAF-recognized ISO9001
Model Number: Create 600
Payment & Shipping Terms
Packaging Details: Wire rope lashing,Suitable for sea/air/land/rail transportation.
Delivery Time: 1 Month
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000 Sets/Year
Product Description

Why Choose XIANDA & Our Brand Strength


XIANDA is a professional manufacturer specializing in CNC stone processing machinery. Our factory holds IAF-recognized ISO9001:2015 Quality Management System Certification and CE safety certification. Adhering to standardized production and strict quality control, we deliver stable, high-precision and export-compliant machines for global markets. We integrate independent R&D, precision manufacturing and complete after-sales services, providing reliable solutions for stone cutting, chamfering and custom profiling. Supported by flexible trade terms, full export documentation and lifelong online technical support, we supply cost-effective and durable stone machinery for worldwide customers.

Xianda Create 600 Heavy Duty 5 Axis CNC Bridge Saw | For Long-Hour Heavy Cavity Milling, Artificial Stone Mold & Quartz Countertop ProductionXianda Create 600 Heavy Duty 5 Axis CNC Bridge Saw | For Long-Hour Heavy Cavity Milling, Artificial Stone Mold & Quartz Countertop ProductionXianda Create 600 Heavy Duty 5 Axis CNC Bridge Saw | For Long-Hour Heavy Cavity Milling, Artificial Stone Mold & Quartz Countertop ProductionXianda Create 600 Heavy Duty 5 Axis CNC Bridge Saw | For Long-Hour Heavy Cavity Milling, Artificial Stone Mold & Quartz Countertop ProductionXianda Create 600 Heavy Duty 5 Axis CNC Bridge Saw | For Long-Hour Heavy Cavity Milling, Artificial Stone Mold & Quartz Countertop Production

Product Overview

Xianda Create 600 flagship heavy-duty full 5-axis CNC bridge saw. Equipped with ultra-thick reinforced frame and optimized anti-vibration construction. Specially designed for long-hour heavy load cutting and continuous cavity milling. Ideal for mass production of quartz countertops and concrete artificial stone molds. CE certified, original manufacturer supply.

Core Shared Features

✅ Ultra-thick reinforced heavy frame, effectively reduce vibration during heavy-load continuous milling
✅ Full 5-axis simultaneous linkage, finish cutting, profiling and cavity milling in one clamping
✅ High-rigidity main head, stable precision after long-time continuous mass production
✅ Upgraded bus absolute servo drive system, high repeat positioning accuracy
✅ Support DXF drawing import, offline programming and tool path simulation
✅ Standard English CNC operation interface, friendly for overseas workers
✅ Multiple optional configurations: vacuum worktable, high-power milling spindle, safety protective cover
✅ CE certification available; customized voltage for different national power standards

Application Materials & Products

  • Materials: Granite, Marble, Quartz Stone, Sintered Stone, Terrazzo, Acrylic Board, Resin Mold Blank
    Processing Items: Kitchen Countertop, Vanity Top, Waterfall Stone, Special-shaped Stone, Concrete Artificial Stone Mold

Technical Parameters

Parameter Unit Create 600
Blade diameter range mm Φ350 - Φ600
Max processing size mm 3400×2000×180
Lifting stroke mm 500
Worktable size mm 3400×2000
Table tilting degree ° 0, 85°
Head rotation degree ° 0-360°
Head tilting degree ° 0-90°
Air speed m/min 25
Repeated positioning accuracy mm ＜0.1mm/1000
Main motor kw 22 (Permanent magnet motor)
Gross power kw 30
Water consumption m³/h ≈2
Outline dimension mm 5800×3650×3900
Gross weight kg ≈8200

Minimum Order Quantity (MOQ)

  • MOQ: 1 Unit

Shipping Terms

  • Shipping Options: FOB, CIF, DAP and DDP trade terms are available. We offer sea freight for cost-effective bulk shipments, air freight for faster delivery, and land transport for regional orders.
  • Packaging: Machines are packed in heavy-duty custom wooden crates with shock-absorbing materials to ensure damage-free transit.
  • Documentation: We handle all export documentation, including customs declarations, technical certificates and compliance documents, to ensure seamless international shipment.

Service Cycle & FAQ

Warranty & Support

  • Warranty Period: 12 months warranty for machine components and CNC control system (excluding consumable parts).
  • Technical Support: Technical Support: Lifetime online support for operation guidance, troubleshooting and maintenance. On-site service is available within 72 hours, subject to regional availability.

Frequently Asked Questions


Q1: Can Create 600 machine acrylic and resin blank for artificial concrete molds?

 A: Yes. Create 600 performs excellently on continuous heavy milling of acrylic and resin board. It is our most recommended model for large-scale artificial stone mold manufacturers.


Q2: Does the system support DXF import and offline programming?

A: Yes. The English control system supports DXF file import, offline programming and tool path simulation.


Q3: Can we customize machine voltage according to local power supply?

 A: We support custom voltage and frequency (220V/380V, 50Hz/60Hz) to match industrial power in different countries.


Q4: Is the machine operation friendly for new users?

A: Equipped with a dedicated human-machine interface with English system language and simple operating logic. It supports both manual parameter input and automatic path generation after file import. We provide detailed English operation manuals and lifelong online guidance, so new operators can master basic operation quickly.

Q5: Can you provide customized service?

A: Yes. We support personalized customization services, including local adaptive voltage adjustment, worktable specification optimization and functional customization according to customer’s processing scenarios. Customized exclusive processing solutions are available for large-scale stone processing enterprises.

Q6: What certifications does this machine have for global sales?

A: This CNC bridge saw holds CE certification (mandatory for legal sales and customs clearance in European markets) andISO quality management system certification. The ISO certificate is globally recognized, verifying our standardized production and stable quality control system, delivering reliable machine performance and trustworthy service for worldwide customers.
