5 Axis CNC Bridge Saw Cutting Machine with 360° Blade Rotation and 3200x2000mm Processing Size for Stone Fabrication

1
MOQ
To Be Negotiable
Price
5 Axis CNC Bridge Saw Cutting Machine with 360° Blade Rotation and 3200x2000mm Processing Size for Stone Fabrication
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Bridge Cutting Machine
Power Supply: AC
Water Consumption: 3m3/H
Outline Dimension: 5800*3650*3900mm
Main Power: 15kw
Table Movement: Automatic
Safety System: Available
Warranty: 1 Year
Highlight:

5 Axis CNC Control System Bridge Saw Cutting Machine

,

360° Blade Rotation Stone Cutting Machine

,

3200x2000mm Processing Size 5 Axis CNC Bridge Saw
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Create 450/600
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000 Sets/Year
Product Description

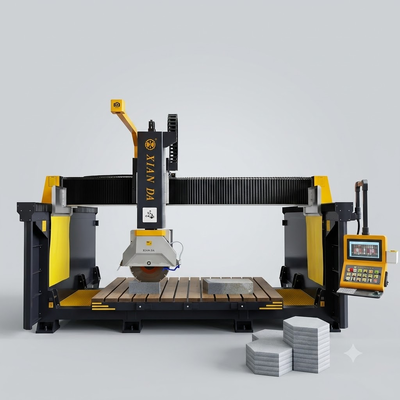

5 Axis CNC Bridge Saw Machine for Granite, Marble and Natural Stone
Heavy Duty 5 Axis CNC Bridge Saw Cutting Machine for Natural Stone Fabrication and Custom Stone Processing
Product Overview
The 5 Axis CNC Bridge Cutting Machine is an intelligent stone processing solution designed for marble, granite, quartz, porcelain slab, and natural stone fabrication. Equipped with a high-precision 5-axis CNC control system, automatic blade rotation, and tilting functions, it provides accurate cutting, profiling, and multi-angle processing.
With a heavy-duty bridge structure and advanced servo control technology, this machine delivers high stability, excellent cutting accuracy, and efficient production for stone factories, countertop manufacturers, and architectural stone projects.
Main Features
  • 5 Axis CNC Control System for automatic and precise machining
  • 360° blade rotation & 0°-90° tilting for multi-angle cutting
  • Suitable for marble, granite, quartz, porcelain, and stone slabs
  • High rigidity structure for stable cutting performance
  • Supports straight cutting, miter cutting, sink cut-outs, and custom shapes
  • Ideal for countertop fabrication and architectural stone processing
Technical Specifications
Parameter Unit Promote 450 Promote 450 MC
Blade diameter range mm 350-450 350-450
Max processing size mm 3200*2000*120 3200*2000*120
Lifting stroke mm 300 300
Worktable size mm 3200*2000 3200*2000
Table tilting size ° 0,85° 0,85°
Head rotating degree ° 0~360° 0~360°
Head tilting degree ° 0~90° 0~90°
Air speed m/min 25 25
Repeated accuracy of positioning mm ＜0.1mm/1000 ＜0.1mm/1000
Main motor kw 18.5 (permanent magnet motor) 18.5 (permanent magnet motor)+5.5
Gross power kw 26 32
Water consumption m³/h ≈2 ≈2
Outline dimension mm 5600*3600*3500 5600*3600*3500
Gross weight kg ≈6000 ≈6000
Product Images

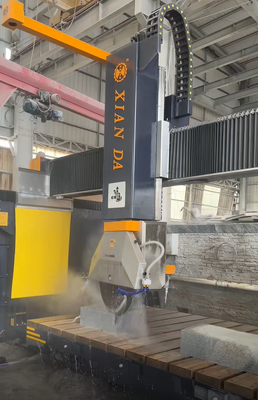

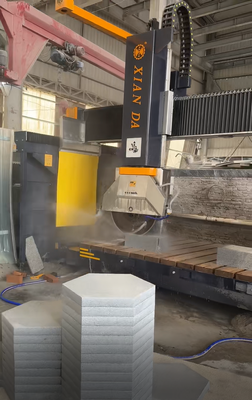

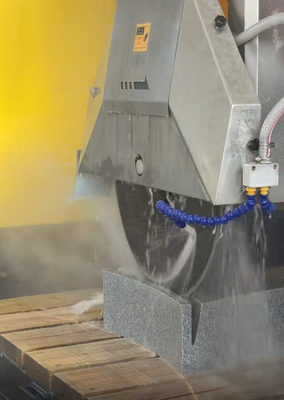

5 Axis CNC Bridge Saw Cutting Machine in operation cutting stone slab
Machine control panel and interface showing digital controls
Applications
  • Marble and granite countertop cutting
  • Quartz kitchen worktop processing
  • Porcelain slab cutting
  • Stone sink and hole cutting
  • Custom-shaped stone fabrication
  • Architectural decoration stone processing
Certifications
API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF
Ordering & Shipping
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Plastic Package, Suitable for Sea Transportation
Delivery Time 1 Month
Supply Ability 1000 Sets/Year
Payment Terms L/C, T/T, D/P, Others
Technical Support & Services
  • Installation guidance and support
  • On-site training for operating the machine
  • Troubleshooting assistance for technical issues
  • Regular maintenance services to ensure optimal performance
Xianda Manufacturing Facility
Xianda company team photo showing professional staff
Xianda manufacturing facility exterior view
Xianda quality control process inspection
Xianda Workshop
Workshop assembly area with machinery
Machine testing station quality check
Quality inspection department
Production line overview
Technical team at work
Equipment calibration area
Finished product storage area
Research and development lab
Workshop safety systems
Advanced manufacturing equipment
Professional engineering team
Package Includes
  • Bridge Saw Cutting Machine
  • Instruction Manual
  • Tool Kit
Frequently Asked Questions
Q1: What materials can this machine process?
A: It can cut marble, granite, quartz, porcelain slabs, and other stone materials.
Q2: Can it make 45-degree edge cutting?
A: Yes, the automatic tilting head supports angle cutting and miter processing.
Q3: Is it suitable for stone fabrication factories?
A: Yes, it is designed for professional stone workshops requiring high precision and efficiency.
