5-Axis CNC Bridge Cutting Machine Promote 900 High Precision Granite Marble Saw with 360° Rotation

1
MOQ
To Be Negotiable
Price
5-Axis CNC Bridge Cutting Machine Promote 900 High Precision Granite Marble Saw with 360° Rotation
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: Fujian,China
Brand Name: Xianda
Certification: CE
Model Number: Promote 900
Payment & Shipping Terms
Packaging Details: Fixed with steel wire and plastic film inside, moisture-proof and shockproof.
Delivery Time: 45days
Payment Terms: T/T,D/P,D/A,L/C
Supply Ability: 1000 Sets/Year
Product Description
5-Axis CNC Bridge Cutting Machine Promote 900 High Precision Granite Marble Saw with 360° Rotation
The Promote 900 5-Axis CNC Bridge Cutting Machine is a high-precision stone processing center designed for cutting marble, granite, and quartz slabs. It features 5-axis linkage, 360° blade rotation, 0-90° tilting, and photo positioning for complex countertop fabrication. The machine supports cutting, chamfering, drilling, milling, and 3D engraving operations. With an 85° worktable tilt for easy loading and RTCP function for high accuracy, it's ideal for kitchen countertops, bathroom vanities, window frames, and tombstone processing. CE certified.

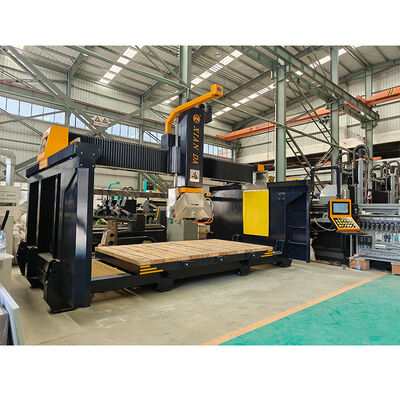

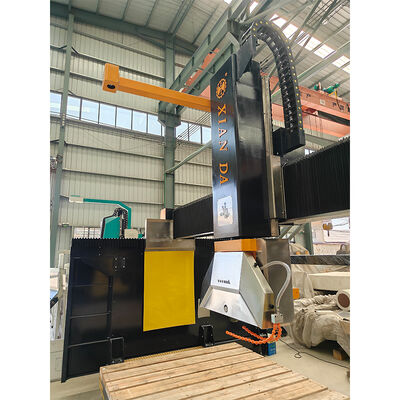

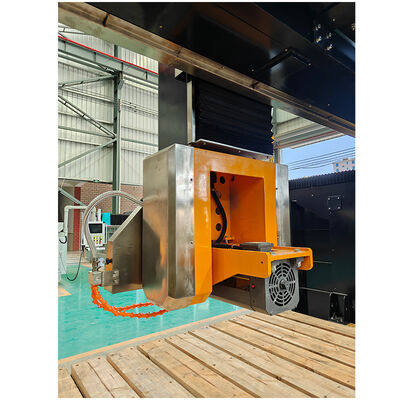

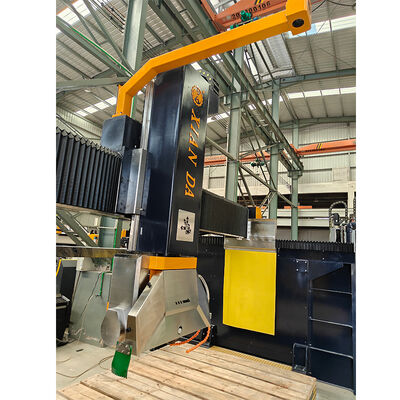

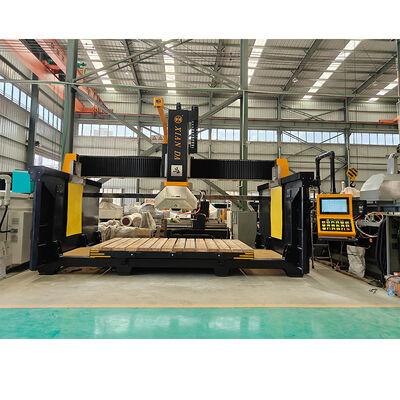

5-Axis CNC Bridge Cutting Machine overview Close-up view of cutting mechanism Machine operational view Detailed component view
Technical Specifications
Type Bridge Saw
Power 32KW
Max Cutting Thickness 120MM
Place of Origin Fujian, China
Weight 6200kg
Warranty 1 Year
Core Components Pressure Vessel, Motor, Gear, Bearing, Pump, Gearbox, Engine, PLC
Usage Stone Cutting
Voltage 380V/50Hz
Brand Name Xianda
Dimensions (L*W*H) 5600*3600*3500mm
Key Selling Points High-Accuracy
Control System CNC System
Blade Diameter 350-900mm
Max Processing Size 3500*2200*300mm
Worktable Tilting Degree 0-85°
Worktable Rotating Degree 0-90°/0-360°
Model Comparison
Parameter Unit Trend 450 / Promote 450 Trend 450MC / Promote 450MC
Blade Diameter Range mm Φ350-Φ450 Φ350-Φ450
Max Processing Size mm 3200*2000*120 3200*2000*120
Worktable Size mm 3200*2000 3200*2000
Table Tilting Degree ° 0,85° 0,85°
Head Rotating Degree ° 0~360° 0~360°
Head Tilting Degree ° 0~90° 0~90°
Air Speed m/min 25 25
Repeated Accuracy of Positioning mm <0.1mm/1000 <0.1mm/1000
Main Motor kw 18.5 18.5
Gross Power kw 26 26
Water Consumption m³/h ≈2 ≈2
Outline Dimension mm 5600*3600*3500 5600*3600*3500
Gross Weight kg ≈6000 ≈6200
Quality Certifications
Quality certification document
Industry Exhibitions
Machine exhibition display
Our Manufacturing Team
Professional manufacturing team Production team at work
Frequently Asked Questions
  • Who are we?
    We are based in Fujian, China, established in 2002. We serve global markets including Mid East (25%), Eastern Europe (25%), Africa (15%), Southern Europe (10%), North America (10%), Domestic Market (10%), and South America (5%). Our team consists of 51-100 professionals.
  • How do we guarantee quality?
    • Always provide pre-production samples before mass production
    • Conduct final inspection before shipment
  • What products do we offer?
    Diamond Wire Saw Machines, Column Processing Machines, Profiling Machines, Bridge Type Cutting Machines, Carving Machines
  • Why choose us over other suppliers?
    • Since 1985, we have served happy customers from 57 countries
    • Complete product range for all your stone processing needs
    • Field service technicians available for support
    • All machines include one-year guarantee for parts
    • We provide more than just machinery - comprehensive solutions
  • What services do we provide?
    Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
    Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
    Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
    Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
