5-Axis CNC Router Bridge Saw Cutting Machine with 5-Axis Simultaneous Control, 20 kW BT40 Spindle, and Hybrid Table Design

1
MOQ
To Be Negotiable
Price
5-Axis CNC Router Bridge Saw Cutting Machine with 5-Axis Simultaneous Control, 20 kW BT40 Spindle, and Hybrid Table Design
Features Gallery Product Description Request A Quote
Features
Specifications
System: 5 - Axis Linkage CNC System
Spindle: Imported BT Spindle
Transmission Mode: Rack Drive Mechanism
Control Technology: Bus Absolute Servo Control
Material: Steel Frame + Cast Iron Table
Warranty: 1 Year
Gross Power: 57/67kw
Multi Function Processing: Cutting & Carving Integration
Precision Machining: High
Type: Medium & Large Stone Focus
Performance: Strong Stability
Highlight:

5-Axis Simultaneous Control Bridge Saw Cutting Machine

,

20 kW BT40 Spindle 5-Axis CNC Router

,

Hybrid Table Design 5-Axis CNC Mill
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Leader 1500/1500CM
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable For Sea Transportation
Delivery Time: 1 Month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description

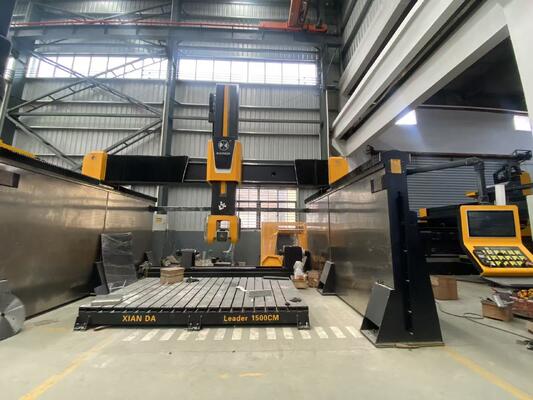

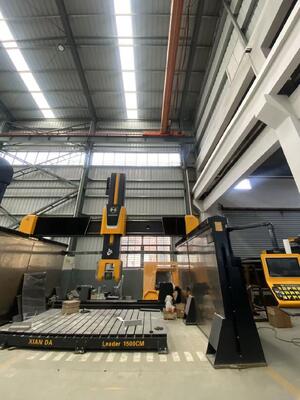

5-Axis CNC Router Bridge Saw Cutting Machine
Advanced 5-axis CNC routers engineered for marble, granite, and engineered quartz workshops demanding uncompromising quality and productivity. These Italian-grade precision machines combine 5-axis power with true cylindrical carving capabilities.
5-Axis CNC Router Bridge Saw Cutting Machine with 5-Axis Simultaneous Control, 20 kW BT40 Spindle, and Hybrid Table Design 0 5-Axis CNC Router Bridge Saw Cutting Machine with 5-Axis Simultaneous Control, 20 kW BT40 Spindle, and Hybrid Table Design 1
Technical Specifications
Parameter Leader1500 Leader1500CM

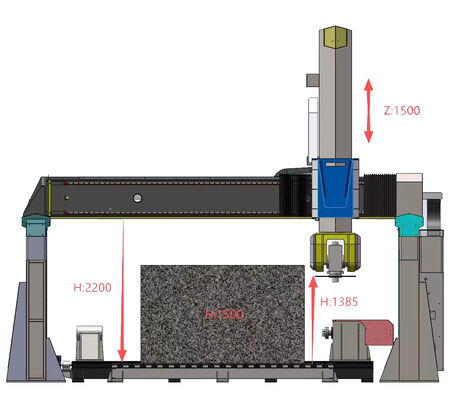

X/Y/Z Travel 3800 * 2700 * 1500 mm 3800 * 3500 * 1500 mm
A/C Tilt & Rotation A 0-180°, C ±365° A 0-180°, C ±365°
Blade / Tool Range Φ350-700 mm Φ350-700 mm
Spindle 20 kW water-cooled BT40, 0-10,000 rpm 20 kW water-cooled BT40, 0-10,000 rpm
Table Size 3400 * 2000 mm fixed 3400 * 2000 mm + Φ50-600 mm rotary axis
Max Cylinder Length -- 3200 mm
Overall Footprint 6600 * 4000 * 5500 mm 6600 * 4800 * 5500 mm
Power 31 kW 34 kW
Weight 9,000 kg 11,000 kg
Advanced Features
  • True 5-Axis Simultaneous Control - Imported CNC system with EtherCAT bus absolute servo drives delivers micron-level repeatability for 3D bas-reliefs, intricate moldings, and spiral columns
  • 20 kW BT40 Spindle - Water-cooled, Italian-made, 10,000 rpm maximum. Handles 700 mm saw blades for fast slab squaring and micro-endmills for fine engraving in single setup
  • Hybrid Table Design - The Leader1500CM adds a 4th-axis rotary table (Φ50-600 mm, 3200 mm long) without sacrificing flat-table workspace
  • Heavy-Duty Frame - 11-ton gantry, stress-relieved steel construction with rack-and-pinion on HIWIN linear rails for vibration-free cutting at 30 m/min
  • Stone-Specific Software - Pre-loaded macros for profiling, arch cutting, sink cut-outs, crown molding, and column fluting with DXF-to-G-code conversion in three clicks
Applications
  • Kitchen islands with waterfall edges
  • Roman column carving (Leader1500CM's rotary axis)
  • 3D logos on lobby floors
  • Fireplace mantels with undercut details
  • Cemetery monuments and statues
Maintenance & Consumables
Water consumption ≤ 3 m³/h—compatible with closed-loop chiller systems. Optional 12-position tool magazine with HSK-F63 quick-change capability. Remote diagnostics via Ethernet—global technician login within 2 hours.
