Name: 5-Axis Stone Cutting Machine with DDX system
Brand: Fujian Xianda Machinery co.,ltd
SKU: Create 600
Price: 27,508.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 5-Axis Stone Cutting Machine

Control System: CNC

Type: Bridge Type Machine

Max Lifting Travel: 500mm

Power: 30KW

Safety System: Available

Origin: Jinjiang, Fujian, China

After-sales Service Provided: Online Support,Video Technical Support,Field Maintenance And Repair Service,Overseas Third-party Support Available

Highlight:

DDX System Stone Cutting Machine

5-Axis Stone Cutting Machine

Basic Infomation

Place of Origin: Jinjiang, Fujian, China

Brand Name: Xianda Machinery

Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

Model Number: Create 600

Payment & Shipping Terms

Packaging Details: Plastic Package, Suitable For Sea Transportation

Delivery Time: 1 Month

Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others

Supply Ability: 1000 Sets/Year

Gallery

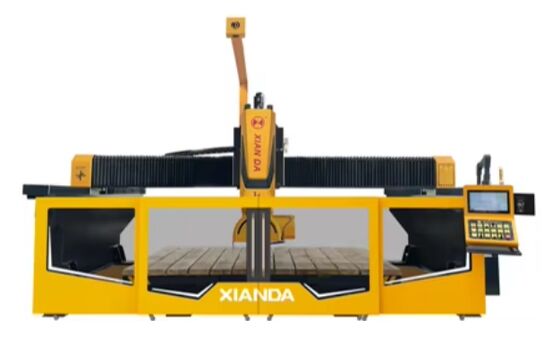

5-Axis Stone Cutting Machine with DDX system

Product Description

5-Axis Stone Cutting Machine with DDX System

Advanced 5-axis CNC stone cutting machine featuring 500mm maximum lifting travel for precision stone processing applications.

Key Features

5-Axis CNC Precision Control with ±0.02mm repeat positioning accuracy
Industrial-Grade Stability with oil-immersed linear guideways and ball screw transmission
Multi-Functional Versatility for processing various stone materials and complex shapes
Space-Smart Design with compact footprint and intuitive CNC interface

Technical Specifications

Attribute	Value
Product Name	5-Axis Stone Cutting Machine
Control System	CNC
Type	Bridge Type Machine
Max Lifting Travel	500mm
Power	30KW
Safety System	Available
Origin	Jinjiang, Fujian, China
After-sales Service	Online support, Video technical support, Field maintenance, Overseas third-party support

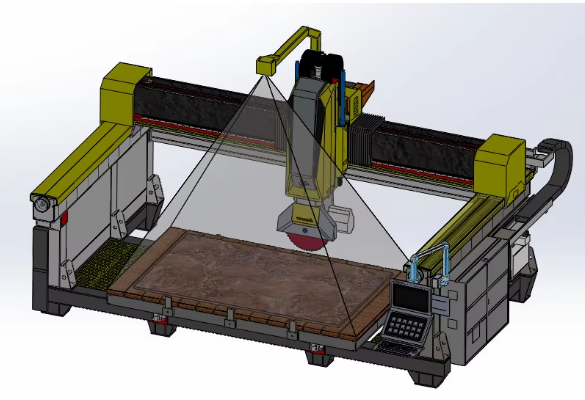

Machine Images

Detailed Specifications

Parameter	Unit	Create 450	Create 600
Blade diameter range	mm	350-450	350-600
Max processing size	mm	32002000120	34002000180
Lifting stroke	mm	300	500
Worktable size	mm	3200*2000	3400*2000
Table tilting degree	°	0-85°	0-85°
Head rotating degree	°	0-360°	0-360°
Air speed	m/min	15	15
Repeated accuracy of positioning	mm	0.1mm/1000	0.1mm/1000
Main motor	kw	18.5 (Permanent magnetic system synchronous motor)	22 (Permanent magnetic system synchronous motor)
Gross power	kw	26	30
Water consumption	m³/h	3	3
Outline dimension	mm	560036003500	580036503900
Head tilting degree	°	0-90°	0-90°
Gross weight	kg	6000	7500

Support and Services

Installation guidance and setup assistance
Technical troubleshooting support
Operator training sessions
Regular maintenance services

Packing and Shipping

The machine is securely packed in a sturdy wooden crate to ensure safe transportation. We ship worldwide using trusted shipping services and provide tracking information for all orders.
