5+1 Axis Cnc Machining Center For Granite Marble 3d Sculpture ,Tub

1
MOQ
To Be Negotiable
Price
5+1 Axis Cnc Machining Center For Granite Marble 3d Sculpture ,Tub
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year,one Year,12 Months,18 Months,2 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,Overseas Third-party Support Available
Dimension(l*w*h): 6000*1400*1550MM,3500*4000*2500mm,3250x3450x900mm,2200*2200*1700,775*270*460mm
Voltage: 380V,380V/50HZ,230V/380V,220V,Optional
Usage: Woodworking,Wood Cut Off Saw,Wood Cutting,cutting Saw,Metal Cutting
Power(w): 5.5kw,12.5kw,350W,550,3.0KW
Style: Horizontal,Other,Vertical
Use: Woodworking,Granite And Marble
Product Name: Auto Wood Cutting Off Saw Machine,Automatic High Speed Cutting Saw,small Waterjet Cutting Machine,automatic Circular Saw Machine,Table Panel Saw Machine
Type: Band Saw,SF606,full-automatic,cut Off Saw,Table Panel Saw
Application: Panels Wood Cutting Machine,wood Working Factory,Granite Marble Stone Cutting Machine,woodworking,Wood Process
Rated Power: 3kw,3.0KW,2.4kw,4KW,3.3/4.0 KW
Name: Wood Cutting Band Saw Machine,Automatic Panel Sliding Table Saw Wood Cutting Machine,Precision Panel Saw,bench Saw,SF6045 Industrial Automatic Wood Cut Off Saw Machine
Color: Blue,Customer Designed,Customizable,Blue Or Customized,Yellow
Saw Blade Diameter: 300mm(250mm-350mm),400mm,455mm
Keyword: High Speed Cutting Saw,horizontal Metal Bandsaw Cutting Machine,automatic Cutting Saw Machine,metal Cutting Band Saw
Highlight:

5 Axis Cnc Machining Center

,

3d Sculpture Cnc Machining Center

,

Granite Cnc Machining Center

Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Leader 1500
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C, T/T, D/P, Western Union ,Paypal ,Money Gram, Others
Supply Ability: 1000 Sets/Year
Product Description

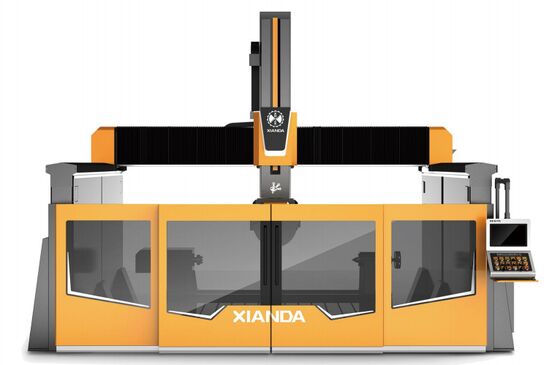

5+1 Axis CNC Machining Center For Granite Marble 3D Sculpture & Tub
High-speed 5-axis CNC mill with cutting and carving integration for precision stone machining applications.
Product Specifications
Attribute Value
System 5-axis linkage CNC system
Spindle Imported BT spindle
Transmission mode Rack drive mechanism
Control Technology Bus absolute servo control
Material Steel Frame + Cast Iron Table
Warranty 1 Year
Gross power 57/67kw
Multi function processing Cutting & carving integration
Precision machining High
Type Medium & large stone focus
Performance Strong stability
5+1 Axis Cnc Machining Center For Granite Marble 3d Sculpture ,Tub 0
5+1 Axis Cnc Machining Center For Granite Marble 3d Sculpture ,Tub 1

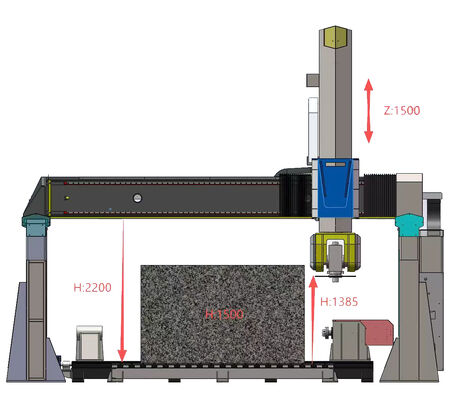

Technical Parameters
Parameter Leader1500 Leader1500CM
X/Y/Z Travel 3800 * 2700 * 1500 mm 3800 * 3500 * 1500 mm
A/C Tilt & Rotation A 0-180°, C ±365° A 0-180°, C ±365°
Blade / Tool Range Φ350-700 mm Φ350-700 mm
Spindle 20 kW water-cooled BT40, 0-10 000 rpm 20 kW water-cooled BT40, 0-10 000 rpm
Table Size 3400 * 2000 mm fixed 3400 * 2000 mm + Φ50-600 mm rotary axis
Max Cylinder Length -- 3200 mm
Overall Footprint 6600 * 4000 * 5500 mm 6600 * 4800 * 5500 mm
Power 31 kW 34 kW
Weight 9 000 kg 11 000 kg
Key Features
  • True 5-Axis Simultaneous Control: Imported CNC system with EtherCAT bus absolute servo drives delivers micron-level repeatability for 3D bas-reliefs, intricate moldings and spiral columns.
  • 20 kW BT40 Spindle: Water-cooled, Italian-made, 10,000 rpm max. Handles 700 mm saw blades for fast slab squaring and micro-endmills for fine engraving in one setup.
  • Hybrid Table Design: The Leader1500CM adds a 4th-axis rotary table (Φ50-600 mm, 3200 mm long) without sacrificing flat-table space.
  • Heavy-Duty Frame: 11-ton gantry, stress-relieved steel; rack-and-pinion on HIWIN linear rails for vibration-free cutting at 30 m/min.
  • Stone-Specific Software: Pre-loaded macros for profiling, arch cutting, sink cut-outs, crown molding and column fluting.

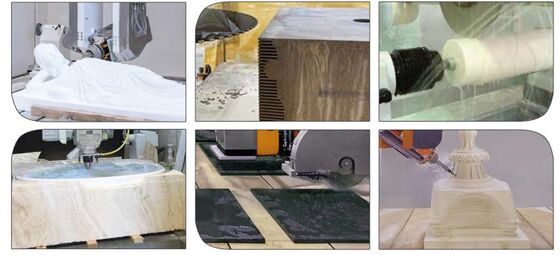

Applications
  • Kitchen islands with waterfall edges
  • Roman column carving (Leader1500CM's rotary axis)
  • 3D logos on lobby floors
  • Fireplace mantels with undercut details
  • Cemetery monuments and statues
Maintenance & Support
Water consumption ≤ 3 m³/h—closed-loop chiller compatible. Tool magazine (optional) 12 positions, HSK-F63 quick-change. Remote diagnostics via Ethernet—technician login within 2 hours globally.
