Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power

1
MOQ
To Be Negotiable
Price
Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

3400*2000*180mm Bridge Saw Cutting Machine

,

15kw 5 Axis CNC Bridge Saw

,

380V Stone Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CCC, SONCAP, GOST, ISO, CE
Model Number: Trend 600
Payment & Shipping Terms
Delivery Time: 30 days
Payment Terms: Western Union,T/T,D/P,D/A,L/C
Supply Ability: 1000 Sets/Year
Product Description

Basic Info.

Model NO.
Trend 600
Type
CNC Cutting Machine
Usage
Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Art & Craft, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
CCC, SONCAP, GOST, ISO, CE
Max Processing Size
3400*2000*180mm
Dimension of Worktable
3400*2000mm
Main Motor
15kw
Outline Dimension
5800*3650*3850mm
Water Consumption
3m³/H
Advantage
Multi-Function,High Presicion,Strong Stability
Key Words
Stone Machine
Warranty Time
One Year
Blade Diameter
350-600mm
Transport Package
Plastic Package, Suitable for Sea Transportation
Specification
5800*3650*3850mm
Trademark
Xianda
Origin
Jinjiang, Fujian, China
HS Code
84641090
Production Capacity
1000 Sets/Year

Packaging & Delivery

Package Size
5800.00cm * 3650.00cm * 3900.00cm
Package Gross Weight
7500.000kg

Product Description

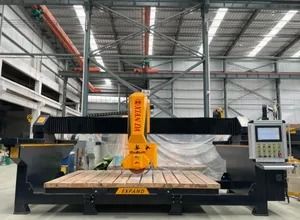

Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 0Xianda Stone Machinery Italian System 5 Axis CNC Bridge Saw Automatic Marble Granite Quartz Slab Milling Machinery Kitchen Sink Countertop Making Stone Cutting Machine Factory Price

Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 1

Product Description

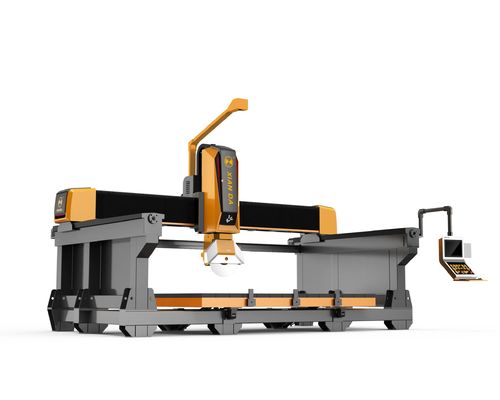

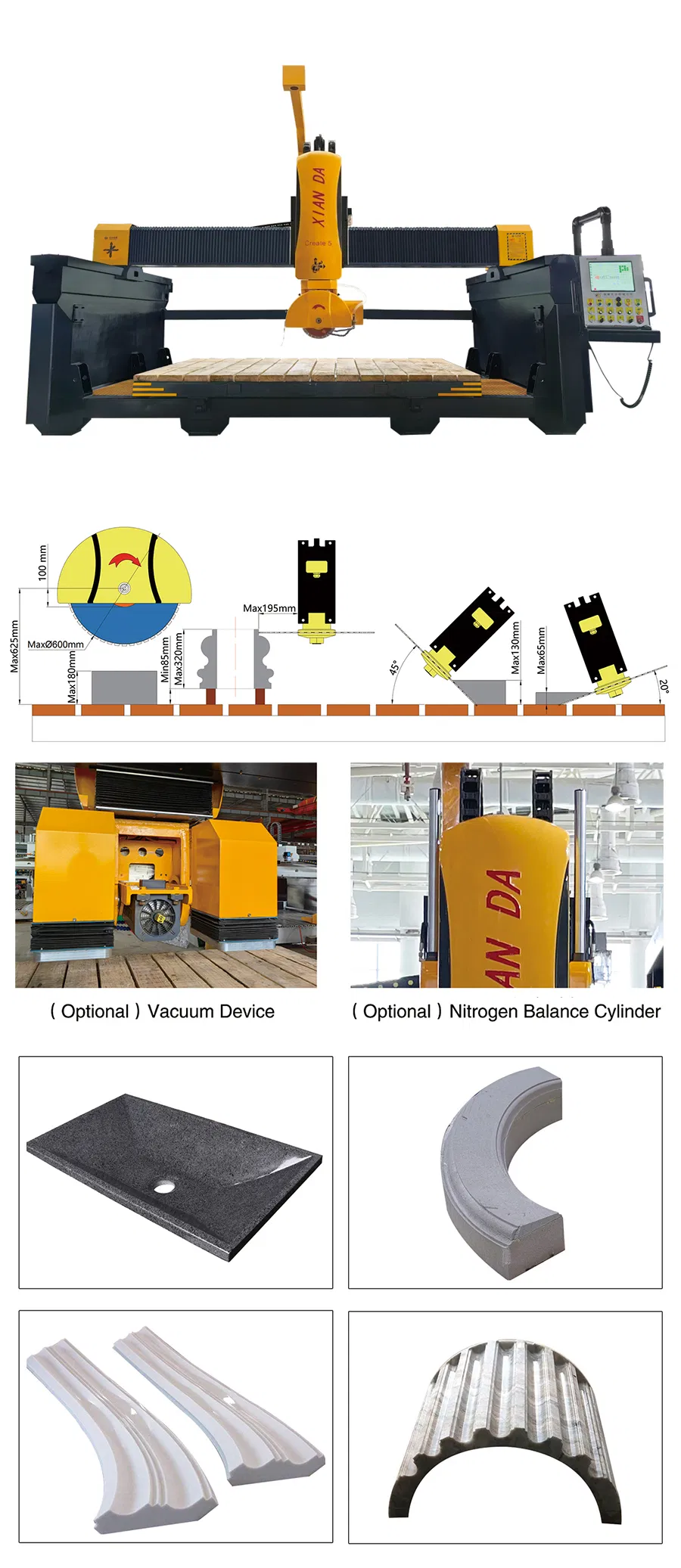

5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control,Bus-based absolute value servo (with memory function for power off).high-precision linear guide rail,ball screw transmission.oil-immersed track structure.with multi-function, high precision,strong stability and other advantages.Its processing functions include arbitrary-shaped lines,fan-shaped plates, wash basin and special-shaped edge profiling,etc.The equipment has multiple processing functions,wide application, small space, and simple operation.It is a great equipment for stone processing.


Technical Parameter
Parameter Unit TREND 600
Blade diameter mm 350-600
Max processing size mm 3400*2000*180
Worktable size mm 3400*2000
Table tilting degree mm 0-85
Head rotating degree ° 0-360
Head tilting degree ° 0-90
Air speed m/min 15
Repeated accuracy of positioning mm <0.1mm/1000
Main motor power kw 22(permanent Magnetic Synchronous Motor)
Outline dimension mm 5800*3650*3900
Water consumption m3/h 3


Xianda machinery

Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 2

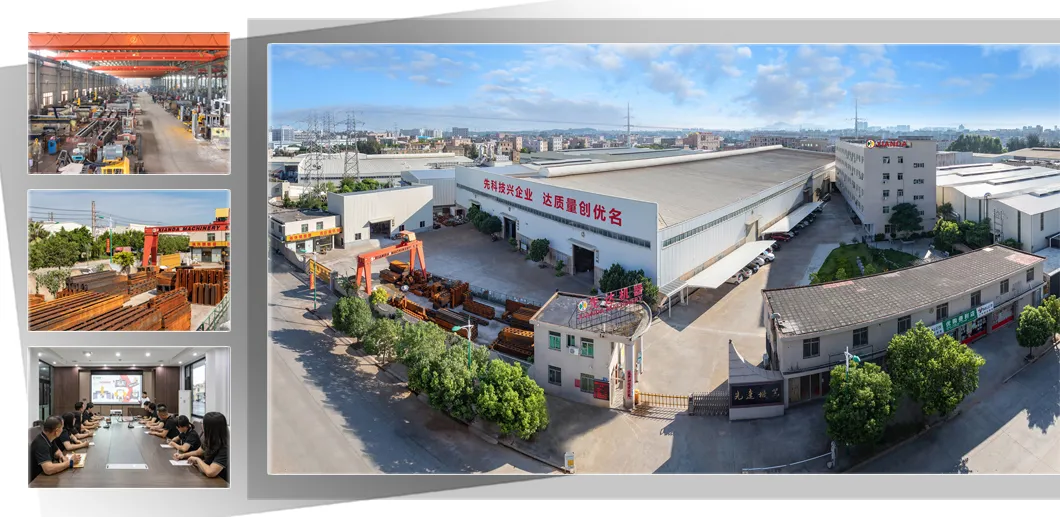

Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named "Wuli Bridge" and next to biggest stone market in the world- Shuitou.

With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.

Since its foundation in 1985, we keep"Top Technology and Superior Quality"as our standard for all machines and got CE, ISO Quality Gold Award , etc.

"China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evalution" , etc for company.And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.

Xianda always keep"Creat the highest value of your stone"as purpose,your visiting and contacting is always welcomed.



Exhibition

Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 3
Our Product
Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 4
Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 5
Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 6

Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 7
Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 8
Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 9






Certification

Automatic Smart Monoblock 5 Axis CNC Bridge Saw Cutting Machine for Granite Marble Quartz with 3400*2000*180mm Max Processing Size 15kw Motor 380V Power 10
Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

Key words: stone cutting machine, wire saw machine, stone profiling.

Manufacturer Profiles
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.

Quality Control

We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.

Delivery time

Based on order quantity, normally three weeks against payment.

Warranty

All the machines have one year warranty.

After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.

FAQ

Q:How to place order to your company?
A: 1.Inquiry-Professional quotation
    2.Confirm the price,lead time, logo, payment term etc.
    3.Xianda sales send the Proforma Invoice with seal.
    4.Customers make the payment as a deposit and send us Bank receipt
    5.Sales confirm the receipt of down payment After approval, we will arrange the production & inform the    estimated time

Q:How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery

Q:Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years

Q:What about the warranty time of the machine?
A:We provide one year for parts warranty service

Q:What can this machine be used to?
A:This machine is designed to cut lines on stone like columns lines ,big arc shaped slabs and special stone shapes.
