Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble

1
MOQ
To Be Negotiable
Price
Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

90° Middle Block Cutting Machine

,

Granite Middle Block Cutting Machine

,

Infrared Middle Block Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CCC, SONCAP, GOST, ISO, CE
Model Number: MGKQ-1200/1400
Payment & Shipping Terms
Delivery Time: 30 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000 Sets/Year
Product Description

Basic Info.

Model NO.
MGKQ-1200/1400
Type
Bridge Cutting Machine
Usage
Granite, Marble
Application
Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
CCC, SONCAP, GOST, ISO, CE
Blade Diameter
Φ300-Φ450
Max Processing Size
3200*2000**4500mm
Dimension of Worktable
3200*2000mm
Workable Tilting Degree
0-85°
Worktable Rotation Degree(Optional)
0-90°
Main Motor
28kw
Gross Motor
22kw
Water Consumption
4m3/H
Outline Dimension
6000*4800*4400mm
Gross Weight
6850
Transport Package
Load in a 20 Feet Container
Specification
6000*4800*2900mm
Trademark
Xianda
Origin
Jinjiang, Fujian, China
HS Code
84641090
Production Capacity
1000 Sets/Year

Packaging & Delivery

Package Size
6150.00cm * 4800.00cm * 4000.00cm
Package Gross Weight
7300.000kg

Product Description

Laser Middle Block Bridge Cutting Machine Stone Cutting Machine for Marble & Granite

Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble 0

Product Description

Middle block stone cutting machine & stone machine & bridge saw, which be designed by reasonable structure, adopting PLC system and Human-machine interface, togethering Chinese & English double operation language and infrared device, equipting with ultra-high precision rotary encoder, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through slide plate, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials. Thus the whole machine is featured as high cutting efficiency,high stability,esay-operating, specially cutting shaped stone products,tombstone and curb stone.

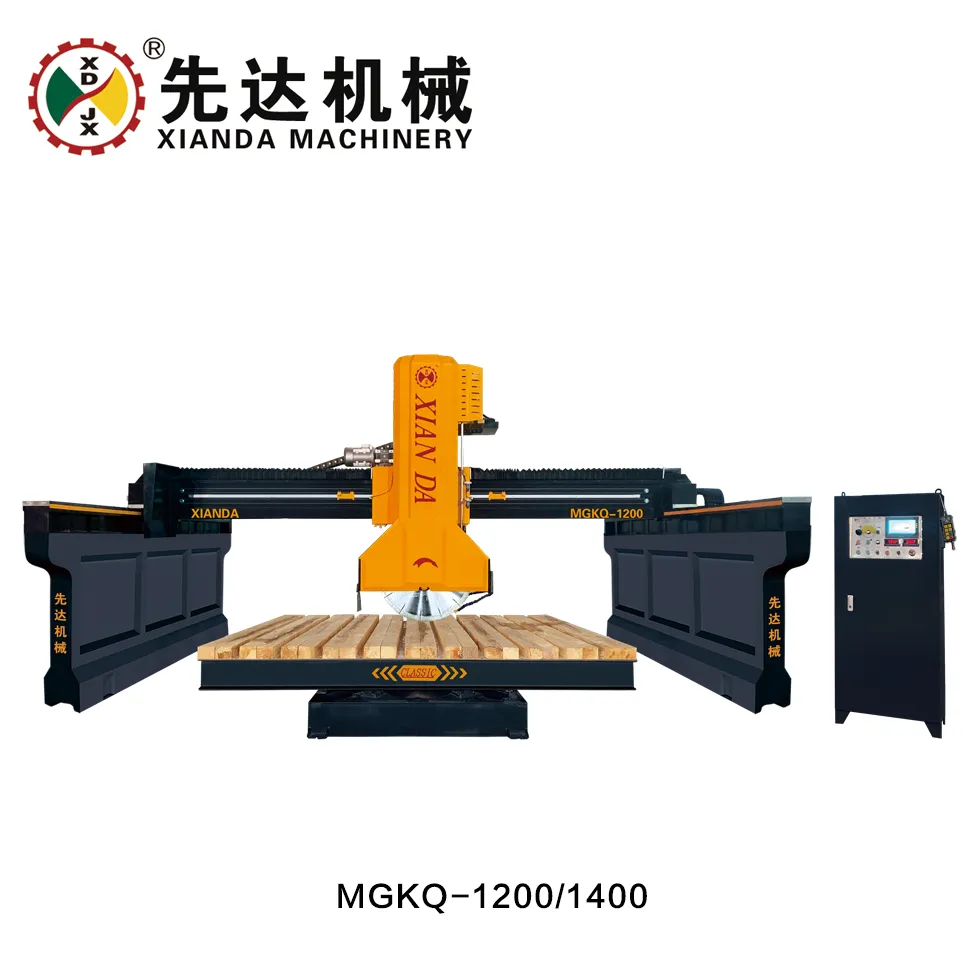

MGKQ-1200 Bridge Saw Parameter
Parameter MGKQ-1200
Max blade diameter 1200mm
Max lifting travel 760mm
worktable size 3000*2000mm
worktable rotating degree 0-90°
water consumption 4m³/h
main motor 22kw
gross motor 29kw
outline dimension 6150*4800*4000mm
gross weight 6800kg

Keyword: stone cutting machine, bridge saw, stone machinery, stone cutter.

More products
Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble 1
Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble 2
Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble 3

Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble 4
Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble 5
Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble 6



Xianda Machinery
Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble 7

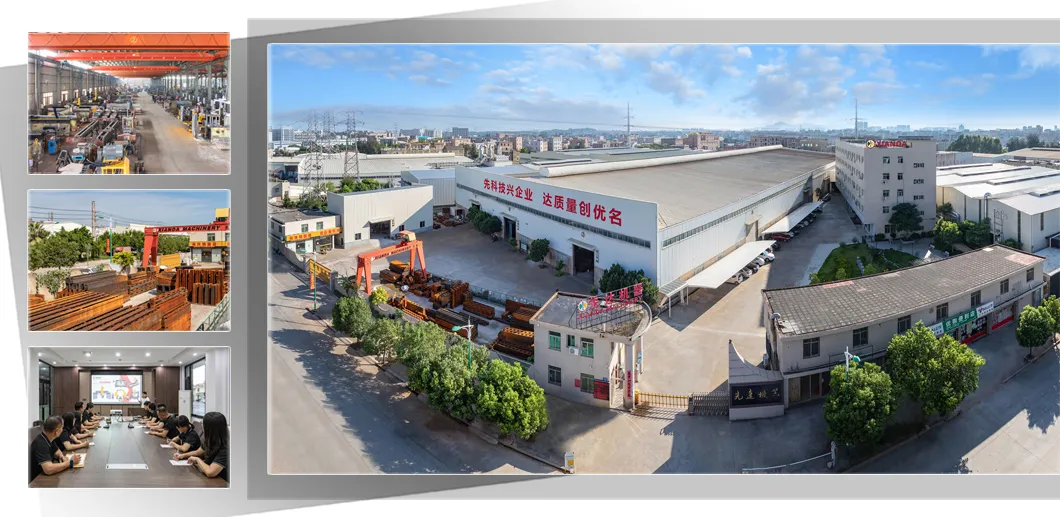

Fujian Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

Exhibition
Infrared Middle Block Bridge Cutting Machine with 3200*2000mm Worktable 0-85° Tilting and 0-90° Rotation for Granite & Marble 8

Our After sale Service

When you buy the machine , we can also provide professional machine using trainning.

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
Thanks for your attention for above information.

If you have any problem,just conact our sales department,customer service department,etc at any time.
