Mono Block Bridge Saw Stone Infrared Cutting Machine

1
MOQ
To Be Negotiable
Price
Mono Block Bridge Saw Stone Infrared Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

Bridge Saw Infrared Cutting Machine

,

Infrared Cutting Machine Stone

,

Mono Block Infrared Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CCC, SONCAP, GOST, ISO, CE
Model Number: ZDCM-400
Payment & Shipping Terms
Delivery Time: 30 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000 Sets/Year
Product Description
Mono Block Bridge Saw Stone Infrared Cutting Machine
Basic Specifications
Model NO.ZDCM-400
ApplicationConstruction, Stone Industry
Source Voltage380V
AutomationAutomatic
Cutting AbilityHigh Speed
ControlPLC
CertificationCCC, SONCAP, GOST, ISO, CE
Blade DiameterΦ300-Φ400
Max Processing Size3200*2000*80mm
Dimension of Worktable3200*2000mm
Workable Tilting Degree0-85°
Worktable Rotation Degree(Optional)0-90° / 0-360°
Main Motor15kw
Water Consumption3m3/H
Outline Dimension5000*3100*2600mm
Transport PackageLoad in a 40 Feet Container
TrademarkXianda
OriginJinjiang, Fujian, China
HS Code84641090
Production Capacity1000 Sets/Year
Product Overview
Mono Block Bridge Saw Stone Infrared Cutting Machine 0

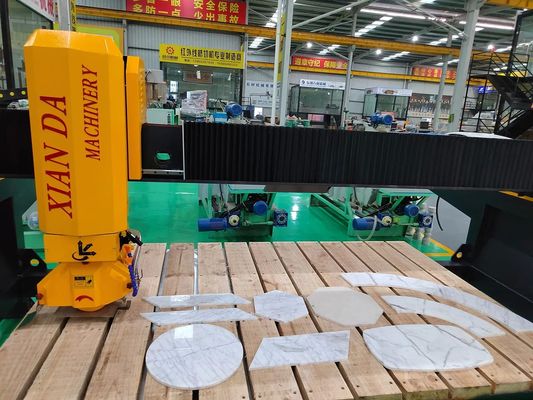

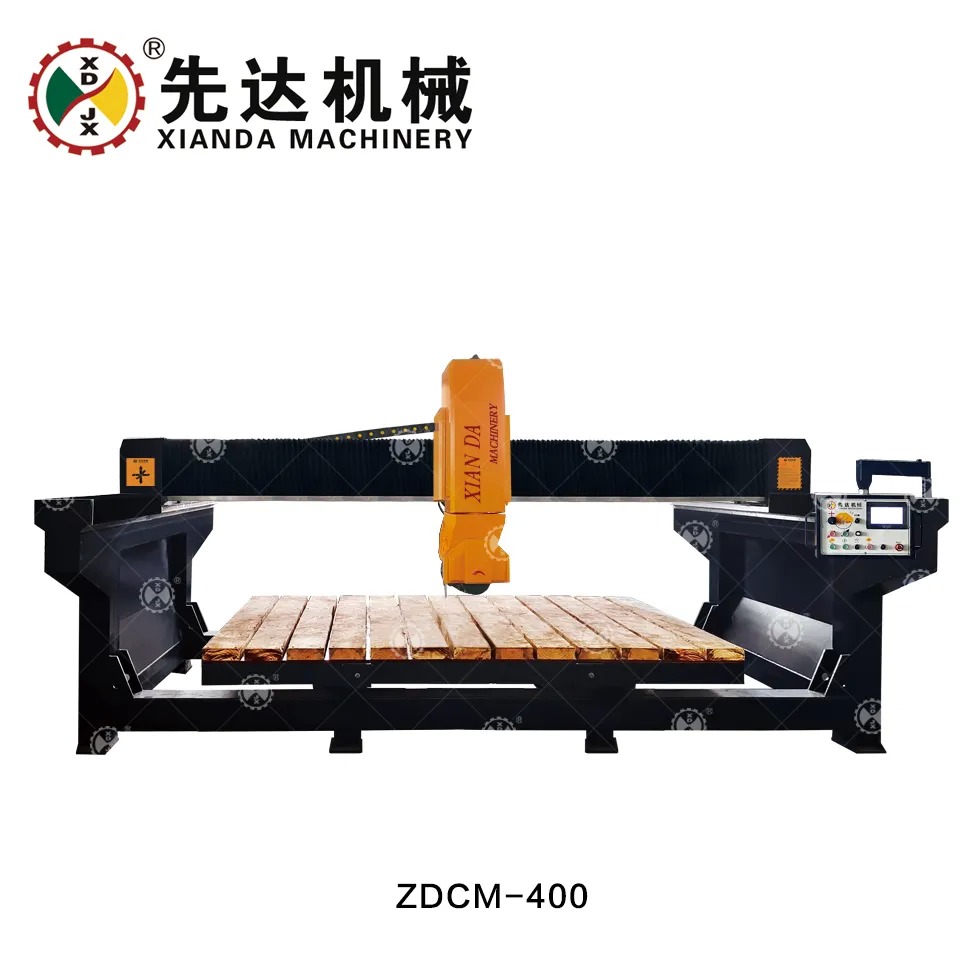

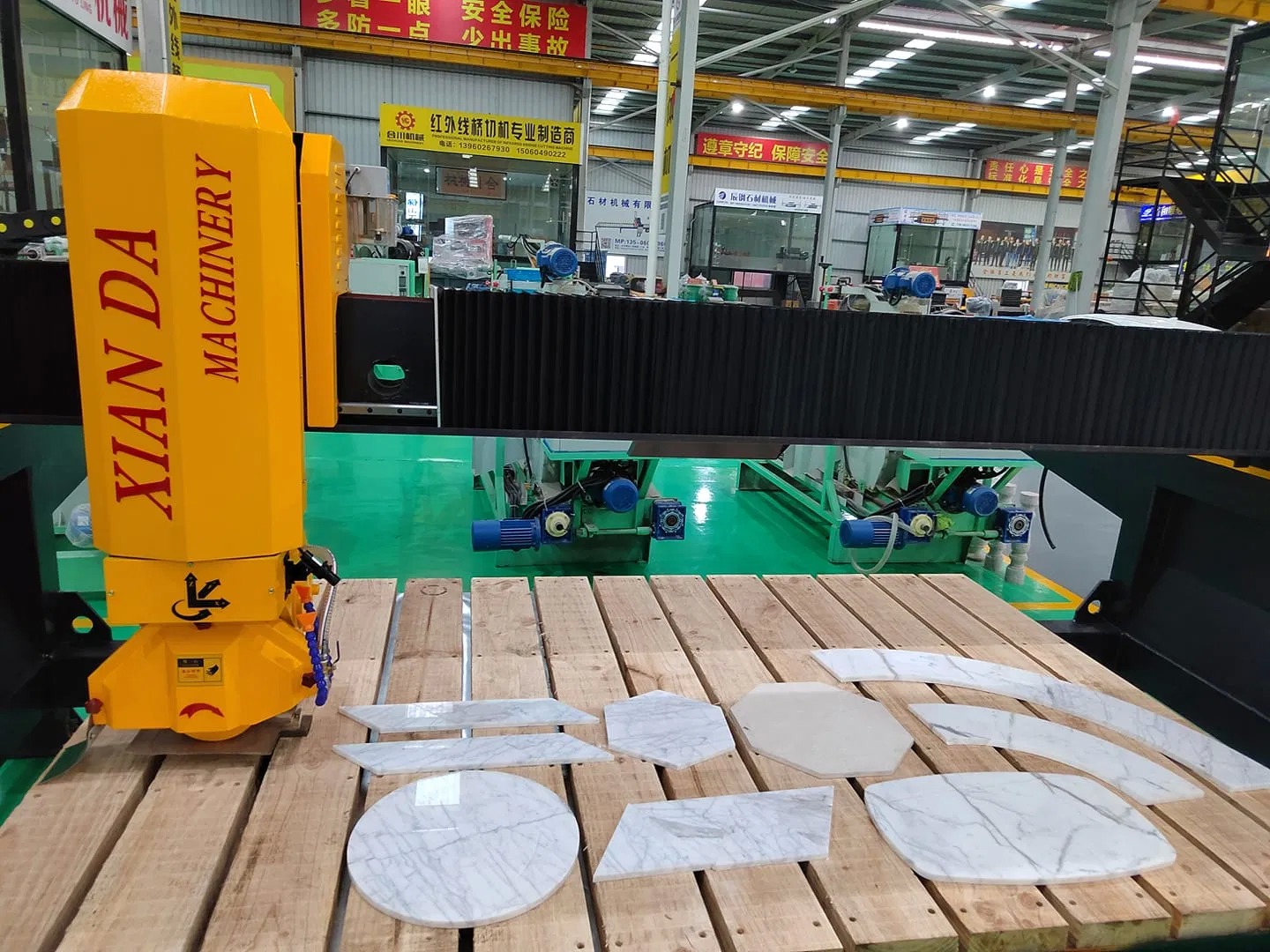

ZDCM-400 Monoblock bridge cutting machine (special for Marble and sintered stone)
This machine adopts Microcomputer system for easy operation and features an integrated structure for simple installation. The machine body frame is processed and formed by CNC gantry milling center at one time, utilizing high-precision linear guide sliders, grinding-grade ball screws, and high-end servo systems. This design significantly improves stability, processing accuracy, and production efficiency while reducing failure rates. Ideal for processing various large-scale plates with high precision requirements and high value.
Technical Parameters
ParameterUnitZDCM-400-AZDCM-400-BZDCM-400-C
Control System Type/PLCPLCCNC
Blade Diametermmφ300-φ400φ300-φ400φ300-φ400
Worktable Sizemm3200*20003200*20003200*2000
Max Processing Sizemm3200*2000*803200*2000*803200*2000*80
Worktable Tilting Angle°0°-85°0°-85°0°-85°
Cutting Head Rotation Degree°0°-90°0°-360°0°-360°
Cutting Head Chamfer Rotating Degree°0°-45°0°-45°0°-45°
Main Motor Powerkw151515
Water Consumptionm³/h333
Outline Dimensionmm5300*3100*26005300*3100*26005300*3100*2600
Related Products
Mono Block Bridge Saw Stone Infrared Cutting Machine 1Mono Block Bridge Saw Stone Infrared Cutting Machine 2Mono Block Bridge Saw Stone Infrared Cutting Machine 3Mono Block Bridge Saw Stone Infrared Cutting Machine 4Mono Block Bridge Saw Stone Infrared Cutting Machine 5Mono Block Bridge Saw Stone Infrared Cutting Machine 6
Xianda Machinery
Mono Block Bridge Saw Stone Infrared Cutting Machine 7
Fujian Xianda Machinery Co.Ltd was established in 1985 and has been dedicated to the development and production of column making machines, wire saw stone cutting machines, block trimming machines, bridge saw cutting machines, and profiling stone cutting machines.
With rapid company development, we have passed ISO9001 verification, CE certification, and won many honorary titles including the International Gold Plant Quality Award. We maintain "Advanced Technology and High Quality" as our aim and have developed a range of 'Xianda' Brand special stone shape processing machines.
Exhibition
Mono Block Bridge Saw Stone Infrared Cutting Machine 8
Our Service
  • Training how to install the machine and training how to use the machine
  • Engineers available to service machinery overseas
  • After-sales service available 24 hours online
If you have any problem, just contact our sales department, customer service department, etc. at any time.
