Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine

1
MOQ
To Be Negotiable
Price
Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

automatic granite bridge saw

,

360 degree marble cutting machine

,

stone bevel cutting machine with warranty
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CCC, SONCAP, GOST, ISO, CE
Model Number: ZDCM-400
Payment & Shipping Terms
Delivery Time: 30 days
Payment Terms: L/C,D/P,T/T,Western Union,D/A
Supply Ability: 1000 Sets/Year
Product Description

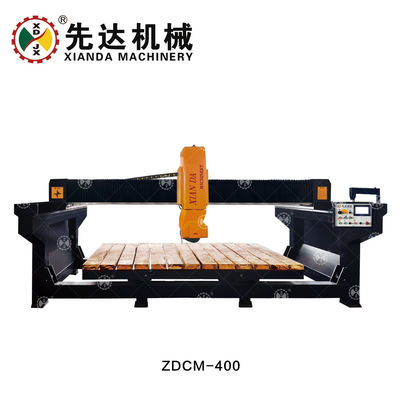

ZDCM-400 Full Automatic Bridge Saw for Granite and Marble
Product Overview

The ZDCM-400 is a high-precision, fully automatic bridge cutting machine specifically designed for marble and sintered stone processing. Featuring 360° head and table rotation capabilities, this industrial-grade machine delivers exceptional cutting accuracy and production efficiency.

Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine 0
Key Features
  • Microcomputer control system for easy operation
  • Integrated monoblock structure for simple installation
  • CNC-machined frame using high-precision linear guide sliders
  • Grinding-grade ball screws and high-end servo systems
  • Enhanced stability and reduced failure rate
  • Ideal for high-value, precision large-scale plate processing
Technical Specifications
Parameter Unit Specification
Blade diameter mm φ300-400
Max processing size mm 3200×2000×80
Worktable dimension mm 3200×2000
Worktable tilting degree ° 0-85°
Worktable rotation degree ° 0-90°/0-360° (optional)
Main motor kw 15
Water consumption m³/h 3
Outline dimension mm 5000×3100×2600
Gross weight kg 5500
Basic Information
Model No. ZDCM-400
Application Construction, Stone Industry
Source Voltage 380V
Automation Automatic
Control PLC
Certification CCC, SONCAP, GOST, ISO, CE
Origin Jinjiang, Fujian, China
Production Capacity 1000 Sets/Year
About Xianda Machinery
Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine 1

Established in 1985, Fujian Jinjiang Xianda Machinery Co., Ltd specializes in developing and manufacturing stone processing machinery including column making machines, wire saws, block trimmers, and bridge saws. The company maintains ISO9001, CE certification and has received numerous industry awards for quality and innovation.

Exhibition
Xianda Stone Machinery Granite Marble Bridge Saw Full Automatic High Efficiency Head and Table Rotation 360 Degree Stone Bevel Cutting Machine 2
Our Service
  • Comprehensive machine installation and operation training
  • Overseas engineering support for machinery servicing
  • 24-hour online after-sales service

For any inquiries or support, please contact our sales or customer service departments at any time.
