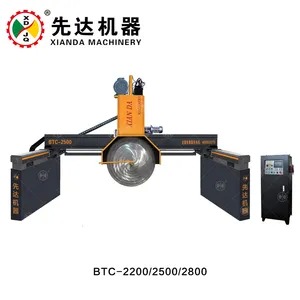

Block Cutting Machine Cutter Granite Marble Quarry Stone Bridge Multi-Blade
Basic Information
Model No.: BTC-2200/2500/2800
Type: Bridge Cutting Machine
Usage: Granite, Marble
Application: Machinery & Hardware, Stone Industry
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Control: PLC
Certification: ISO, CE
Color: Black and Yellow
Max Blade Diameter: 2200mm/2500mm/2800mm
Max Processing Length: 3000/3300/3600mm
Max Processing Width: 2200mm
Max Lifting Travel: 1350mm
Main Motor: 45/55kw
Gross Motor: 56/66kw
Water Consumption: 15m³/H
Gross Weight: 14000/14500/15000kgs
Specification: 7350/7850x4500/4800x3400/3700mm
Trademark: XIANDA
Origin: Fujian, China
HS Code: 84641090
Production Capacity: 1000 Sets/Year
Product Description
Multi-blade large stone block cutting machine - marble granite block cutter
The BTC-2500/2800 uses an inverter to control left-right feeding and adjusts speed according to the stone material. It features:
- Hydraulic lifting system (screw lifting system optional)
- Forward-backward slicing with high-precision screw nut driving
- Automatic slicing operation
- Main spare parts made from imported high-quality materials
- Ground placement capability to save worktable and maintenance costs
This machine delivers high cutting efficiency, precise slicing, excellent plate flatness after cutting, high stability, and easy operation, making it ideal for cutting granite and marble blocks with high wave patterns.
Product Parameters
| Parameter | Unit | BTC-2200 | BTC-2500 | BTC-2800 |
| Max blade diameter | mm | φ2200 | φ2500 | φ2800 |
| Max processing length | mm | 3800 | 3500 | 3200 |
| Max processing width | mm | 2200 | 2200 | 2200 |
| Max lifting stroke | mm | 1320 | 1320 | 1320 |
| Main motor | kw | 45/55 | 45/55 | 55/65 |
| Gross motor | kw | 57/67 | 57/67 | 67/77 |
| Outline dimension | mm | 8000*4800*3700 | 8000*4800*3700 | 8000*4800*3700 |
| Water consumption | m³/h | 15 | 15 | 15 |
| Gross weight | kg | 14000 | 14500 | 15000 |
Detailed Photos
Packaging & Shipping
Company Profile
Fujian Xianda Machinery Co.,Ltd is a leading manufacturer of stone cutting machines and tools in China, established in 1985 with a 20,000m² facility located in Jinjiang Wuli Industrial area.
With over 34 years of experience, we specialize in developing and producing diamond wire saw machines, column processing machines, bridge cutting machines, carving machines, and profiling linear machines. We hold approximately 80% of the Chinese market for column processing machines and serve customers in over 30 countries worldwide.
Since our foundation, we've maintained "Top Technology and Superior Quality" as our standard, earning CE and ISO certifications along with numerous industry awards. We're recognized as a "China Recommend Building Manufacture Enterprise" and "3A Enterprise Credit Evaluation" company.
Our company philosophy is "Create the highest value of your stone." We welcome your inquiries and visits.
Certifications
Our Advantages
Manufacturer Profiles
• Top 10 stone cutting machine manufacturer with ISO & CE certification since 1985
• 70% China market share in special shape stone cutting machines
• Specialized in producing stone machines for export | Quality Control
• Experienced QC team
• Strict inspection process
• Testing video provided before shipping upon request |
Delivery Time
• Typically three weeks after payment (based on order quantity) | Warranty
• One year parts warranty
• 24-hour online after-sales service
• Professional installation guidance and operator training |
FAQ
Q: How is After-sales Service Provided?
A: Engineer can be dispatched for machinery assembly
Q: Are you Manufacture Factory?
A: Yes, we are the stone machinery factory with over 30 years experience
Q: What about the warranty time of the machine?
A: We provide one year parts warranty service
Q: What can this machine be used for?
A: This machine is designed to cut lines on stone like columns, big arc shaped slabs and special stone shapes
