Four Column Medium Block Cutting Machine for Cutting Thick Granite Marble Slabs Curbstone
Basic Information
Model NO.: MGKQ-1200/1400
Type: CNC Cutting Machine
Usage: Granite, Marble
Application: Machinery & Hardware, Construction, Mineral Industry, Stone Industry
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Control: CNC
Certification: CCC, ISO, CE
Blade Diameter Range: 700-1200 mm
Trolley Size: 3000*2000 mm
Worktable Rotating Angle: 0-90°
Main Motor: 22 Kw
Specification: 6150*4800*4000 mm
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Production Capacity: 1000 Sets/Year
Product Description
MGKQ-1200/1400 Four column middle block cutter machine - cutting thick slab and curbstone
This machine adopts 4 guide rods, double hydraulic cylinders, and a heavier structure, featuring quick lifting, strong power, and stable cutting. It is the optimal choice for cutting thick slabs and curbstone.
Product Parameters
| Parameter |
Unit |
MGKQ-1200 |
MGKQ-1400 |
| Blade diameter range |
mm |
Φ700-Φ1200 |
Φ1000-Φ1400 |
| Trolley size |
mm |
3200*2000 |
3200*2000 |
| Worktable rotating angle |
° |
0-90° |
0-90° |
| Main motor |
kw |
22-6/30-6 optional |
22-8 |
| Gross motor |
kw |
29/37 optional |
30 |
| Outline dimension |
mm |
6150*4800*4000 |
| Including foundation height |
mm |
6150*4800*4300 |
| Gross weight |
kg |
7300 |
7600 |
| Water consumption |
m³/h |
4 |
4 |

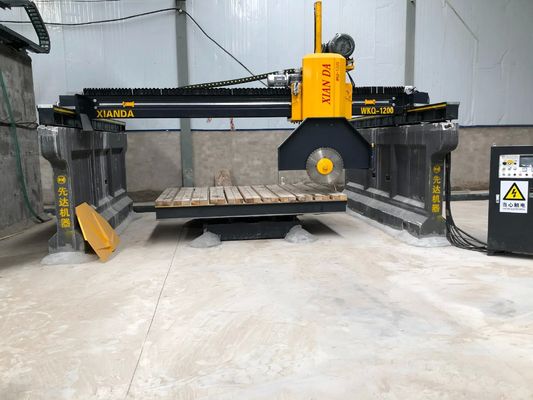

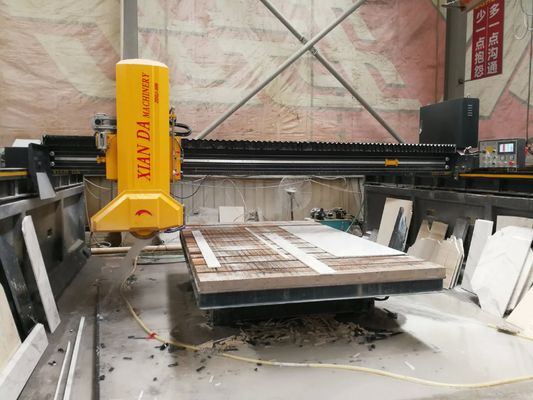

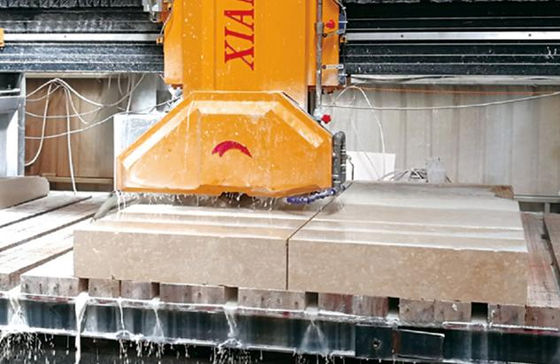

Detailed Photos
Similar Products
Company Profile
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli Industrial area, nearby the longest and oldest stone bridge in the world, named "Wuli Bridge" and next to biggest stone market in the world- Shuitou.
With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep "Top Technology and Superior Quality" as our standard for all machines and got CE, ISO Quality Gold Award, etc.
"China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evaluation", etc for company. And we are always the sponsor for education as our CEO Mr Roy is enthusiastic about the public welfare establishments.
Xianda always keep "Create the highest value of your stone" as purpose, your visiting and contacting is always welcomed.
Certifications
Our Advantages
- Training how to install the machine, training how to use the machine.
- Engineers available to service machinery overseas.
- After-sales service 24 hour on line.
- If you have any problem, just contact our sales department, customer service department, etc at any time.
Key words: stone cutting machine, wire saw machine, stone profiling.
Manufacturer Profiles
- We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
- We own 70% China market share at special shape stone cutting machine series.
- We are a company which is specially for producing stone machines for exporting.
Quality Control
- We have our own experienced QC.
- Our machine will be strictly inspected.
- We will provide a Testing Video for each machines before shipping out if required by customer.
Delivery time
Based on order quantity, normally three weeks against payment.
Warranty
All the machines have one year warranty.
After Sales Service
Our marketing team will respond to your question within 24 hours.
Technical support will be available at any time.
Free replacement will be provided once the failure is confirmed to be caused by our product quality.
FAQ
Q: How to place order to your company?
A:
- Inquiry-Professional quotation
- Confirm the price, lead time, logo, payment term etc.
- Xianda sales send the Proforma Invoice with seal.
- Customers make the payment as a deposit and send us Bank receipt
- Sales confirm the receipt of down payment After approval, we will arrange the production & inform the estimated time
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years
Q: What about the warranty time of the machine?
A: We provide one year for parts warranty service
