Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing

1
MOQ
To Be Negotiable
Price
Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: 5 Axis Bridge Cutting Machine
Cutting Precision: ±0.01mm
Maximum Cutting Speed: 30m/min
Spindle Power: 15kW
Axis Configuration: 5 - Axis Simultaneous Motion
Applicable Materials: Stone, Marble, Granite, Quartz, Ceramic
Maximum Cutting Size: 3400mm×2000mm×180mm
Control System: Advanced CNC Control
Positioning Accuracy: ±0.02mm
Voltage: 380V/50Hz
Frame Material: High - Strength Cast Iron
Software Compatibility: Supports CAD/CAM Software (e.g., AutoCAD, ArtCAM)
Safety Features: Emergency Stop Button, Safety Guarding, Overload Protection
Highlight:

CNC Bridge Cutting Machine

,

5 Axis CNC Bridge Cutting Machine

,

Multifunctional CNC Bridge Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Create 450/600
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable For Sea Transportation
Delivery Time: 30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets/Year
Product Description
Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing
Product Specifications
Machine Type 5 Axis Bridge Cutting Machine
Cutting Precision ±0.01mm
Maximum Cutting Speed 30m/min
Spindle Power 15kW
Axis Configuration 5-axis simultaneous motion
Applicable Materials Stone, Marble, Granite, Quartz, Ceramic
Maximum Cutting Size 3400mm×2000mm×180mm
Control System Advanced CNC Control
Positioning Accuracy ±0.02mm
Voltage 380V/50Hz
Frame Material High-Strength Cast Iron
Software Compatibility Supports CAD/CAM Software (e.g., AutoCAD, ArtCAM)
Safety Features Emergency Stop Button, Safety Guarding, Overload Protection
Precision Engineering for Complex Cutting

Our 5 Axis Bridge Cutting Machine delivers unmatched precision in stone, marble, granite, and other hard material processing. The five-axis linkage system enables complex 3D cutting, carving, and shaping for both architectural projects and custom stone artworks.

  • Advanced CNC control system for highly accurate cutting paths
  • High-resolution linear guides and ball screws for smooth, precise movement
  • Automatic tool compensation maintains consistent cutting quality

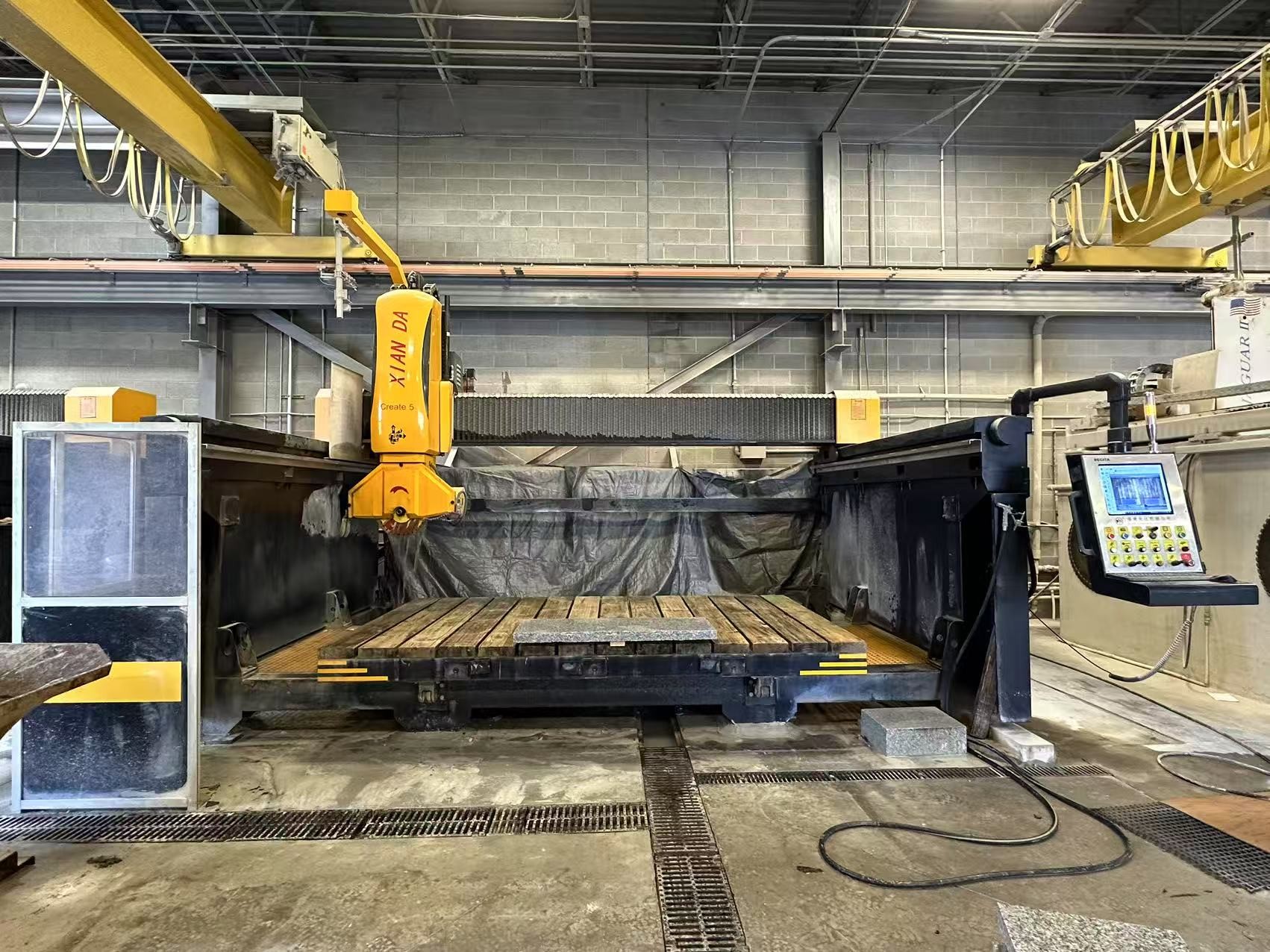

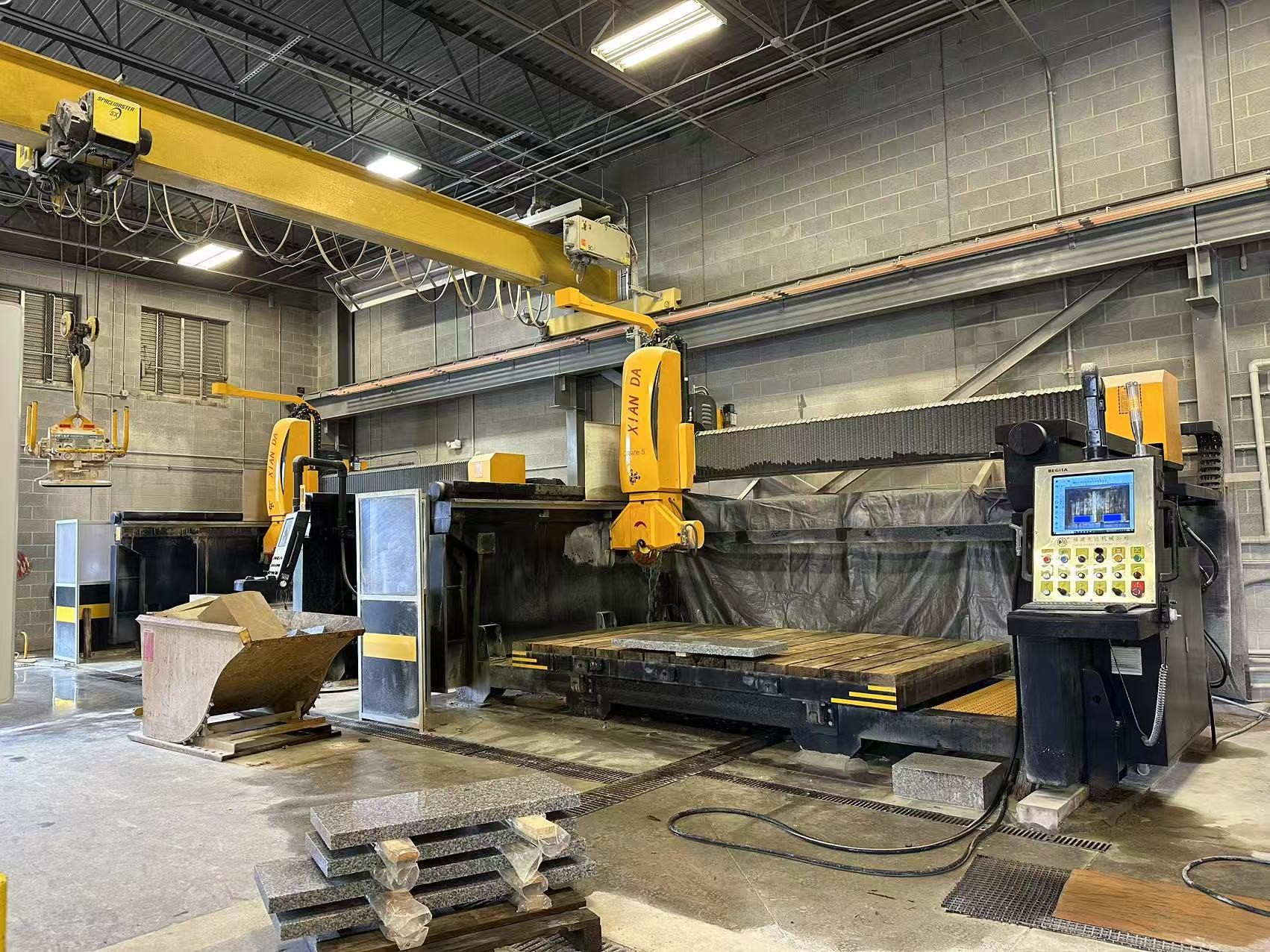

Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing 0 Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing 1
Robust Construction & Intelligent Operation
Durable Machine Structure
  • Heavy-duty cast iron base for enhanced stability
  • High-performance spindle motor with long service life
  • IP65 protection rating for electrical components ensures durability in harsh environments
User-Friendly Interface
  • Touch-screen display for convenient operation
  • Built-in CAD/CAM software for easy design import and modification
  • Error-prompt function for quick troubleshooting
Multifunctional 5 Axis CNC Bridge Cutting Machine for Stone Processing 2
Technical Specifications
Parameter Unit Create 400 Create 600
Blade diameter range mm 350-450 350-600
Max processing size mm 3200×2000×120 3400×2000×180
Lifting stroke mm 300 500
Worktable size mm 3200×2000 3400×2000
Table tilting degree ° 0-85 0-85
Head rotating degree ° 0-360 0-360
Head tilting degree ° 0-90 0-90
Air speed m/min 15 15
Repeated accuracy of positioning mm 0.1mm/1000 0.1mm/1000
Main motor kw 18.5 (Permanent Magnetic Synchronous Motor) 22 (Permanent Magnetic Synchronous Motor)
Gross power kw 26 30
Water consumption m³/h 3 3
Outline dimension mm 5600×3600×3500 5800×3650×3900
Gross weight kg 6000 7500
Customization Options

We offer tailored solutions to meet your specific production requirements with our customizable 5 Axis Bridge Cutting Machine.

  • Customized cutting head configurations
  • Integration of specialized material handling systems
  • Software customization for specific industry applications
Comprehensive After-Sales Support

Our commitment includes professional installation, operator training, maintenance services, and ongoing technical support to ensure optimal machine performance throughout its lifecycle.
