| Attribute | Value |
|---|---|
| Air Speed | 15m/min |
| Gross Power | 20.5kw |
| Dimension Of Worktable | 3200*2000mm |
| Voltage | 220V/380V |
| Origin | Jinjiang, Fujian, China |
| Workable Tilting Angle | 0-85° |
| Blade Material | Diamond |
| Product Type | Stone Processing Machine |

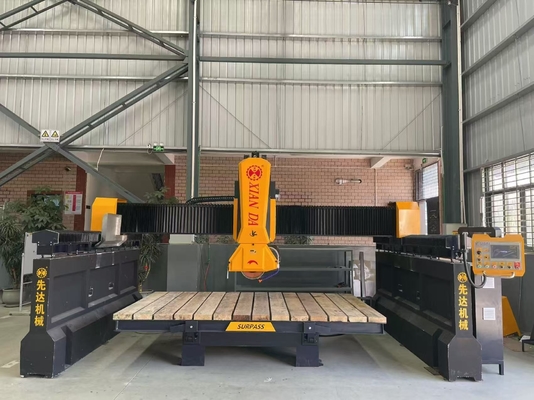

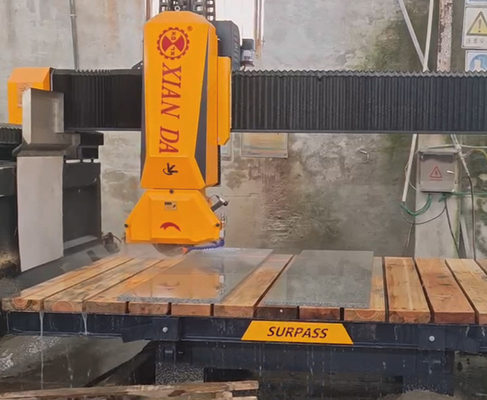

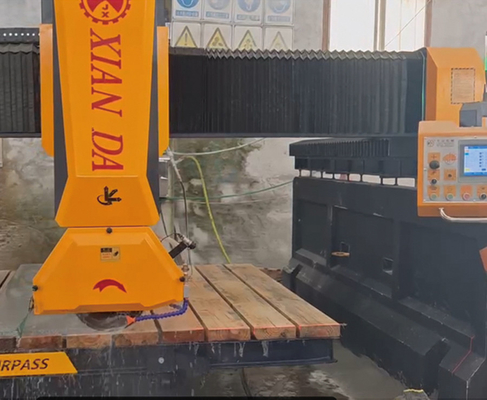

This Intelligent Bridge Cutting Machine (split type) features a microcomputer control system for easy operation. Its split structure design allows for convenient and safe loading/unloading. The entire machine structure is processed by CNC gantry machining center and incorporates:
These premium components significantly improve equipment stability, processing accuracy, and production efficiency. Ideal for processing various marble and granite slabs with high precision requirements.
| Parameter | Unit | ZDFT-600B | ZDFT-600BL |
|---|---|---|---|
| Control system type | / | PLC | PLC |
| Blade diameter | mm | 350-600 | 350-600 |
| Worktable size | mm | 3200*2000 | 3200*2000 |
| Max processing size | mm | 3200*2000*180 | 3200*2000*180 |
| Worktable tilting degree | ° | 0,85° | 0,85° |
| Cutting head rotation degree | ° | 0-360° | 0-360° |
| Cutting head rotation control mode | / | Servo motor control | Servo motor control |
| Cutting head chamfer rotating degree | ° | Not | 0-60° |
| Main motor | KW | 22 (Permanent magnet motors) | 22 (Permanent magnet motors) |
| Outline dimension | mm | 6000*3500*3000 | 6000*3500*3100 |
| Water consumption | m³/h | 2 | 2 |
Our comprehensive technical support and services include:
Each Bridge Saw Cutting Machine is carefully wrapped in protective material and securely placed in a sturdy wooden crate to prevent any damage during transportation.
We offer worldwide shipping via reliable freight services. Upon order processing, you'll receive tracking information to monitor your delivery status.
