Name: Max Lifting Travel 500mm High Sharpness Granite Cutting Machine for Fast and Professional Cuts
Brand: Fujian Xianda Machinery co.,ltd
SKU: Create 450/600
Price: 27,508.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model No: Creat 600

Type: Bridge Type Machine

Blade Diameter Range: 350-600

Cutting Width: 2000mm

Gross Power: 30KW

Water Consumption: 2

Weight: 8000kg

Warranty: 1 Year

Highlight:

High Sharpness Granite Cutting Machine

500mm Granite Cutting Machine

Professional Granite Cutting Machine

Basic Infomation

Place of Origin: Jinjiang, Fujian, China

Brand Name: Xianda Machinery

Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

Model Number: Create 450/600

Payment & Shipping Terms

Packaging Details: Plastic Package, Suitable For Sea Transportation

Delivery Time: 1 Month

Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others

Supply Ability: 1000 Sets/Year

Gallery

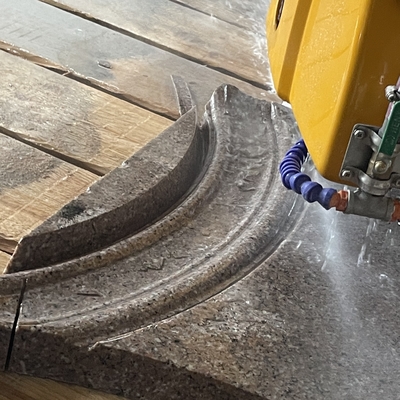

Max Lifting Travel 500mm High Sharpness Granite Cutting Machine for Fast and Professional Cuts

Product Description

Max Lifting Travel 500mm High Sharpness Granite Cutting Machine

Product Specifications

Attribute	Value
Model No	Creat 600
Type	Bridge Type Machine
Blade Diameter Range	350-600
Cutting Width	2000mm
Gross Power	30KW
Water Consumption	2 m³/h
Weight	8000kg
Warranty	1 Year

Key Features

5-Axis Linkage CNC System: Full-axis synchronous motion control for complex 3D shaping. Capable of processing arbitrary-shaped lines, fan-shaped plates, wash basins, and special-shaped edges.
Industrial-Grade Motion System: Bus-based absolute value servo motor (with power-off memory function), high-precision linear guideways & ball screw transmission, oil-immersed track structure for enhanced durability.
Space-Efficient Design: Compact footprint ideal for small workshops with intuitive operation interface for reduced training time.
Multi-Application Performance: Processes natural stone, engineered quartz, and composite materials. Perfect for countertops, decorative elements, and architectural components.

Technical Parameters

Parameter	Unit	Create 450	Create 600
Blade diameter range	mm	350-450	350-600
Max processing size	mm	32002000120	34002000180
Lifting stroke	mm	300	500
Worktable size	mm	3200*2000	3400*2000
Table tilting degree	°	0-85°	0-85°
Head rotating degree	°	0-360°	0-360°
Air speed	m/min	15	15
Repeated accuracy of positioning	mm	0.1mm/1000	0.1mm/1000
Main motor	kw	18.5 (Permanent magnetic system synchronous motor)	22 (Permanent magnetic system synchronous motor)
Gross power	kw	26	30
Water consumption	m³/h	3	3
Outline dimension	mm	560036003500	580036503900
Head tilting degree	°	0-90°	0-90°
Gross weight	kg	6000	7500

Support and Services

Installation guidance and setup assistance for the machine
Troubleshooting support for any technical issues
Training sessions for operators on efficient machine use
Regular maintenance services for optimal performance

Packing and Shipping

Product Packaging: The machine is carefully packed in a sturdy wooden crate to ensure safe transportation, securely fixed within the crate to prevent any damage during shipping.

Shipping: We ship worldwide using trusted shipping services. The machine is shipped in a protective wooden crate with tracking information provided for delivery monitoring.
