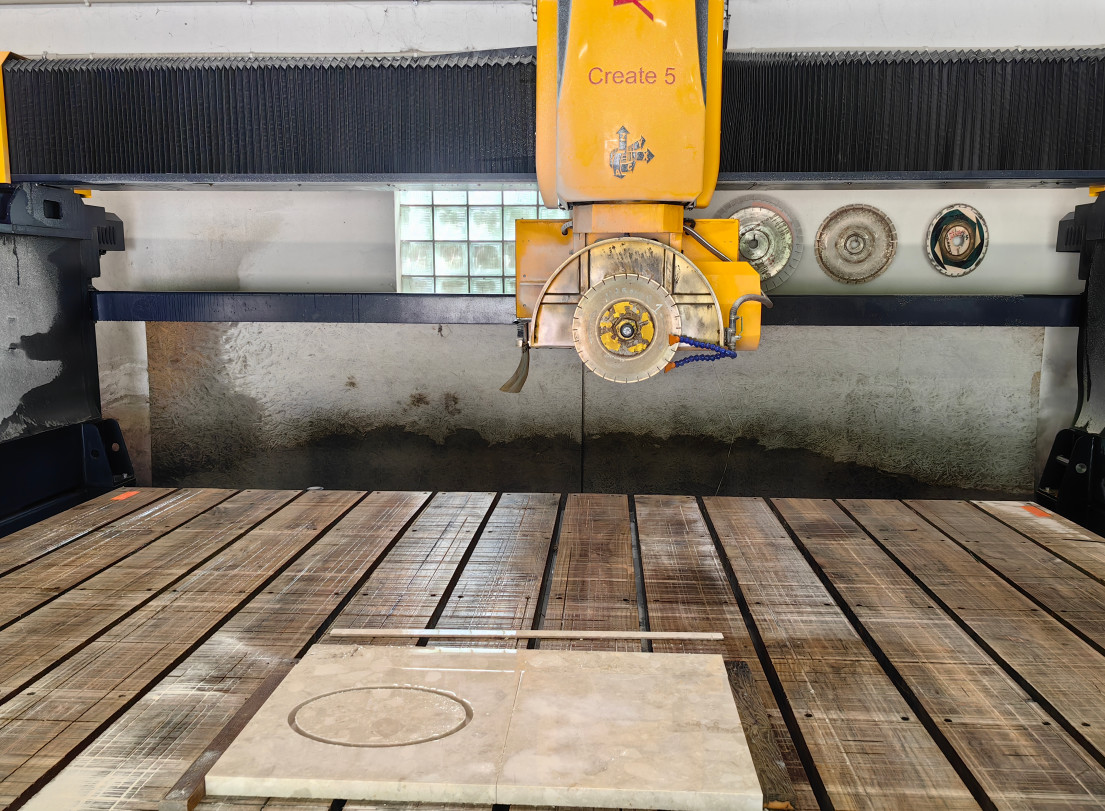

Xianda 5 Axis Bridge Saw Cutting Machine For Profiling
Product Description:
Whether you are cutting marble, granite, or other types of stone, the Bridge Cutting Machine is a reliable and efficient tool that can help you get the job done quickly and accurately. Its compact size, low water consumption rate, and safety system make it a great choice for any stone workshop.
| Parmeter |
Unit |
Create 450 |
Create 600 |
| Blade diameter range |
mm |
350-450 |
350-600 |
| Max processing size |
mm |
3200*2000*120 |
3400*2000*180 |
| Lifting stroke |
mm |
300 |
500 |
| Worktable size |
mm |
3200*2000 |
3400*2000 |
| Table tilting degree |
° |
0-85° |
0-85° |
| Head rotating degree |
° |
0-360° |
0-360° |
| Head tilting degree |
° |
0-90° |
0-90° |
| Air speed |
m/min |
15 |
15 |
| Repeated accuracy of positioning |
mm |
0.1mm/1000 |
0.1mm/1000 |
| Main motor |
kw |
18.5(Permanent Magnetic Synchronous Motor) |
22Permanent Magnetic Synchronous Motor) |
| Gross power |
kw |
26 |
30 |
| Water consumption |
m³/h |
3 |
3 |
| Outline dimension |
mm |
5600*3600*3500 |
5800*3650*3900 |
| Gross weight |
kg |
6000 |
7500 |
Applications:
One of the primary applications for this stone cutting machine is in the construction industry. Contractors and builders can use the Create
450 to cut and shape stone for a variety of different projects, including building facades, retaining walls, and flooring. The machine's powerful blade and precise cutting capabilities make it an ideal tool for creating intricate designs and shapes in stone.
Customization:
Looking for a customized granite cutting machine?We accept various payment terms including L/C, T/T, D/P, Western Union, Paypal, Money Gram, and others. Our supply ability is 1000 sets per year and our machine runs on AC power with a water consumption rate of 3m3/h. Safety is our top priority, which is why our machine comes equipped with a safety system. Additionally, our machine has a main power of 15kw and automatic table movement. Trust in XIANDA MACHINERY to provide you with a high-quality stone cutting machine that is customized to your needs.
Support and Services:
Our services include installation, training, and maintenance to ensure that your machine is running smoothly and efficiently. Our technicians can also provide customization and upgrades to meet your specific needs and requirements.
Packing and Shipping:
Product Packaging:
The Bridge Saw Cutting Machine will be carefully packaged in a wooden crate to ensure maximum protection during transportation. The crate will be secured with straps and padding to prevent any damage to the machine or its components.
Shipping:
The Bridge Saw Cutting Machine will be shipped via a reliable and reputable carrier. Shipping times may vary depending on the destination, but we will provide a tracking number so that you can easily track your shipment. Please note that additional fees may apply for expedited shipping or delivery to remote areas.
