Home /Products/Bridge Saw Cutting Machine/Customizable CNC Bridge Cutting Machine For Special Shapes

Customizable CNC Bridge Cutting Machine For Special Shapes

1
MOQ
To Be Negotiable
Price
Customizable CNC Bridge Cutting Machine For Special Shapes
Features Gallery Product Description Request A Quote
Features
Specifications
Blade Diameter: 350-450mm
Table Movement: Automatic
Warranty: 1 Year
Power Supply: AC
Outline Dimension: 5000*3100*2700mm
Water Consumption: 3m3/H
Product Name: Bridge Cutting Machine
Gross Weight: 5100kg
Highlight:

Special Shapes Bridge Cutting Machine

,

CNC Bridge Cutting Machine

,

Precision CNC Bridge Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Expand 450/Expand 450FA
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
Customizable CNC Bridge Cutting Machine For Special Shapes
Product Overview

This precision CNC Bridge Cutting Machine delivers exceptional stone cutting performance for businesses requiring high-quality results. Featuring automatic table movement and advanced control systems, it ensures accurate cutting while maximizing productivity.

Key Specifications
Attribute Value
Blade Diameter 350-450mm
Table Movement Automatic
Warranty 1 Year
Power Supply AC
Outline Dimension 5000*3100*2700mm
Water Consumption 3m3/H
Gross Weight 5100kg
Product Features
  • Precision cutting for special shapes with CNC control
  • Automatic table movement for efficient material handling
  • Robust construction with 5100kg gross weight for stability
  • Versatile cutting capabilities with adjustable blade diameter
  • Energy-efficient operation with 15kw main motor

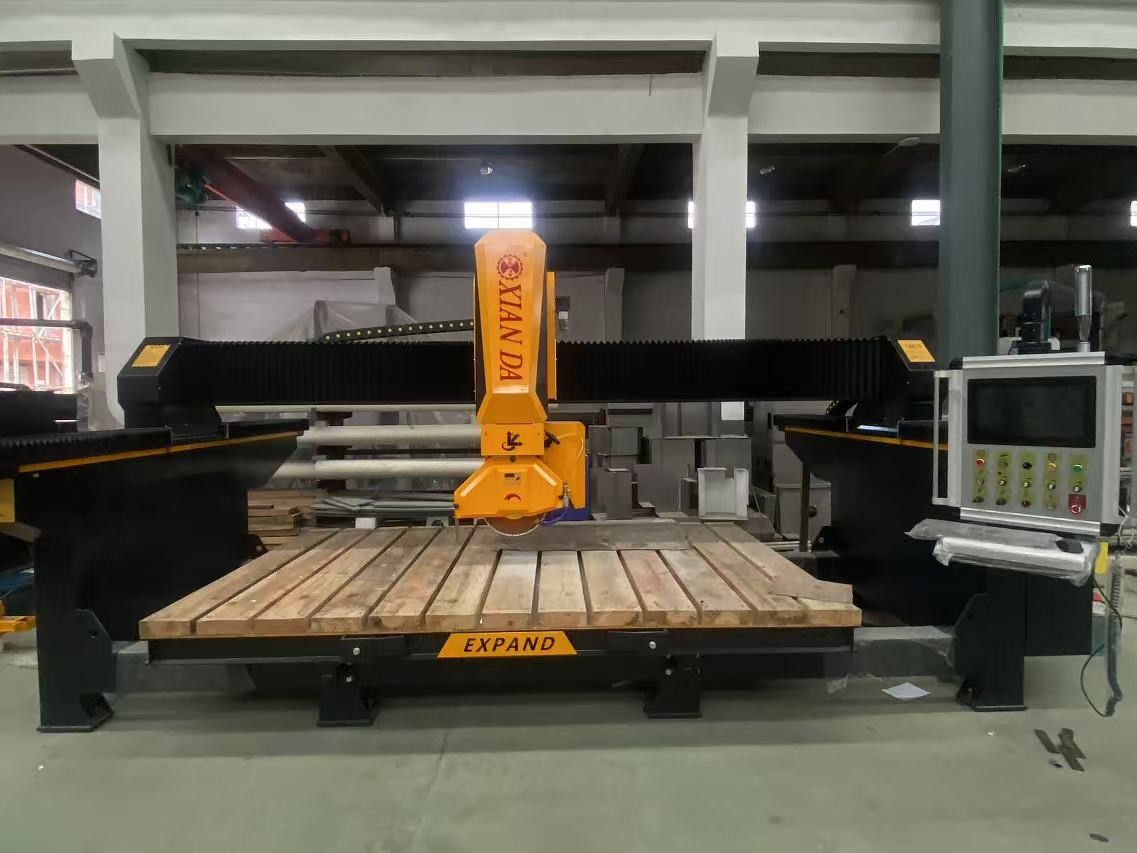

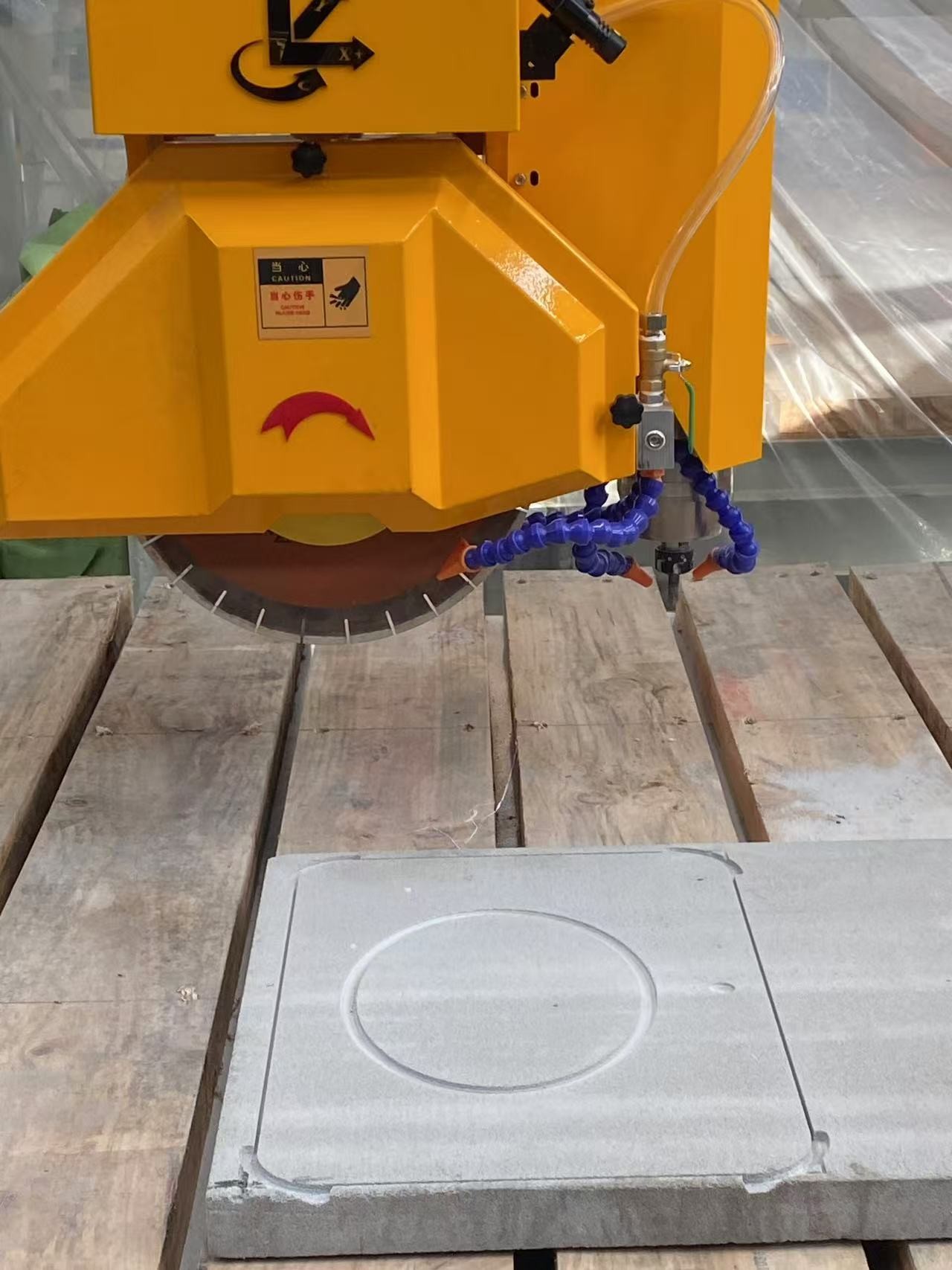

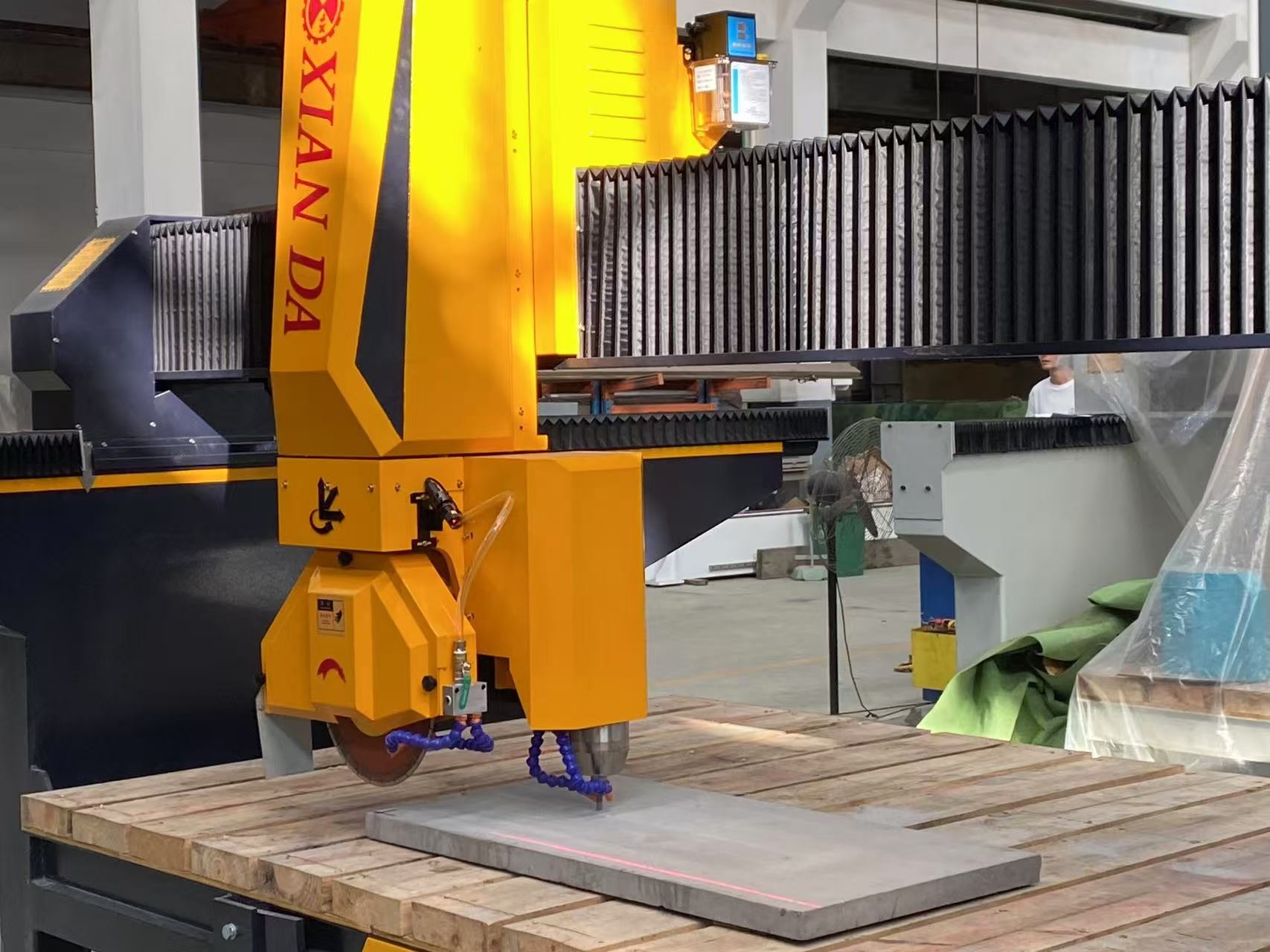

Product Gallery
Customizable CNC Bridge Cutting Machine For Special Shapes 0 Customizable CNC Bridge Cutting Machine For Special Shapes 1 Customizable CNC Bridge Cutting Machine For Special Shapes 2 Customizable CNC Bridge Cutting Machine For Special Shapes 3
Technical Parameters
Parameter Unit Expand 450 Expand 450FA
Control system type / 4 Axis System Normal 5 Axis System
Blade diameter mm 350-450 350-450
Worktable size mm 3200*2000 3200*2000
Max processing size mm 3200*2000*100 3200*2000*100
Worktable tilting degree ° 0-85° 0-85°
Cutting head rotation degree ° 0-360° 0-360°
Cutting head rotation control mode / Servo motor control Servo motor control
Cutting head chamfer rotating degree ° 0-45° 0-45°
Main motor power kw 15 15
Outline dimension mm 5000*3100*2700 5000*3100*2700
Water consumption m³/h 3 3
Support & Services

Our comprehensive support package includes:

  • On-site installation and operator training
  • Dedicated remote technical support
  • Preventive maintenance programs
  • Genuine spare parts availability
  • System upgrades and optimization
Packaging & Shipping

Packaging: Each machine is carefully disassembled and secured in custom-built wooden crates with protective materials to ensure safe transit.

Shipping: We coordinate with trusted logistics partners to deliver your equipment worldwide. Shipping methods are tailored to your requirements, with options for sea, air, or land transportation.

Tag:

Bridge Saw Cutting Machine 3200x2000mm

marble block cutting machine 2800mm

Granite Stone Cutter 3200mm
