5 Axis Bridge Cutting Machinery For Arbitrary-shaped Lines fan-shaped Plates wash Basin And Special Shaped

1 SET
MOQ
To be negotiable
Price
5 Axis Bridge Cutting Machinery For Arbitrary-shaped Lines fan-shaped Plates wash Basin And Special Shaped
Features Gallery Product Description Request A Quote
Features
Specifications
Blade Diameter: 350-600mm
Table Movement: Automatic
Water Consumption: 3m3/H
Safety System: Available
Warranty: 1 Year
Outline Dimension: 5800*3650*3900mm
Gross Power: 30kw
Power Supply: AC
Highlight:

Arbitrary Shaped Bridge Cutting Machinery

,

Fan Shaped Bridge Cutting Machinery

,

5 Axis Bridge Cutting Machinery
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: XIANDA MACHINERY
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Create 450/600
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
5 Axis Bridge Cutting Machinery For Arbitrary-shaped Lines, Fan-shaped Plates, Wash Basin And Special Shaped
Product Specifications
Blade Diameter 350-600mm
Table Movement Automatic
Water Consumption 3m³/H
Safety System Available
Warranty 1 Year
Outline Dimension 5800*3650*3900mm
Gross power 30kw
Power Supply AC
Product Overview

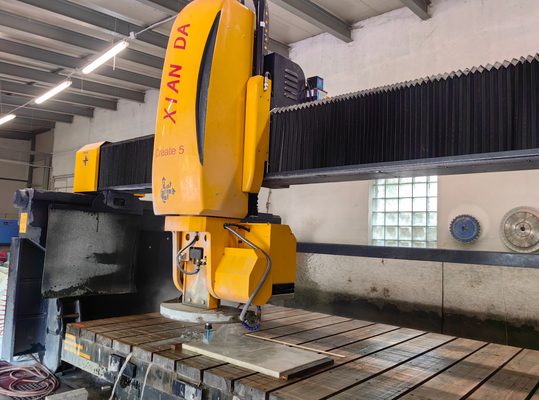

Our 5 Axis Bridge Cutting Machine features a 5-axis linkage CNC system control with bus-based absolute value servo (with memory function for power outage), high-precision linear guide rail, and ball screw transmission. The oil-immersed track structure provides multi-function capability, high precision, and strong stability.

Key Processing Functions:

  • Arbitrary-shaped lines cutting
  • Fan-shaped plates processing
  • Wash basin profiling
  • Special-shaped edge profiling

The equipment offers multiple processing functions, wide application range, compact footprint, and simple operation, making it an excellent choice for stone processing applications.

Technical Parameters
Parameter Unit Create 400 Create 600
Blade diameter range mm 350-450 350-600
Max processing size mm 3200*2000*120 3400*2000*180
Lifting stroke mm 300 500
Worktable size mm 3200*2000 3400*2000
Table tilting degree ° 0-85 0-85
Head rotating degree ° 0-360 0-360
Head tilting degree ° 0-90 0-90
Air speed m/min 15 15
Repeated accuracy of positioning mm 0.1mm/1000 0.1mm/1000
Main motor kw 18.5 (Permanent Magnetic Synchronous Motor) 22 (Permanent Magnetic Synchronous Motor)
Gross power kw 26 30
Water consumption m³/h 3 3
Outline dimension mm 5600*3600*3500 5800*3650*3900
Gross weight kg 6000 7500
Product Gallery
5 Axis Bridge Cutting Machinery For Arbitrary-shaped Lines fan-shaped Plates wash Basin And Special Shaped 0 5 Axis Bridge Cutting Machinery For Arbitrary-shaped Lines fan-shaped Plates wash Basin And Special Shaped 1 5 Axis Bridge Cutting Machinery For Arbitrary-shaped Lines fan-shaped Plates wash Basin And Special Shaped 2 5 Axis Bridge Cutting Machinery For Arbitrary-shaped Lines fan-shaped Plates wash Basin And Special Shaped 3 5 Axis Bridge Cutting Machinery For Arbitrary-shaped Lines fan-shaped Plates wash Basin And Special Shaped 4
Support & Services

Our Bridge Saw Cutting Machine comes with comprehensive technical support and services to ensure optimal performance:

  • Professional installation and operator training
  • Ongoing maintenance and repair services
  • 24/7 technical support (remote or on-site)
  • Accessories and upgrades availability
  • Software updates and blade replacements
Shipping Information

We partner with trusted shipping providers to deliver your Bridge Saw Cutting Machine safely. Shipping costs vary by destination and package weight. Upon shipment, you'll receive a tracking number to monitor your delivery progress.
