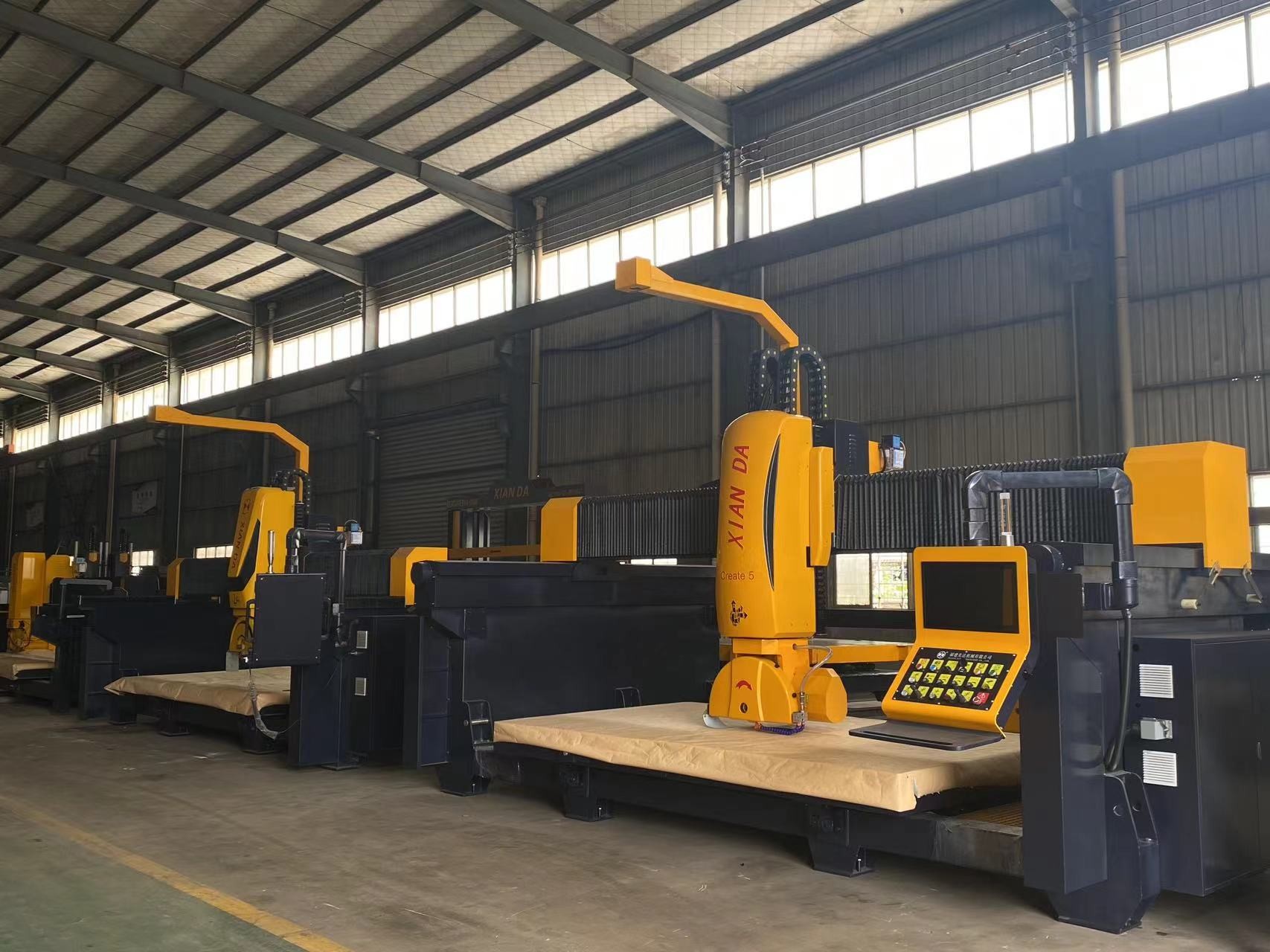

5 Axis CNC Bridge Cutting Machine For Countertop

1
MOQ
To Be Negotiable
Price
5 Axis CNC Bridge Cutting Machine For Countertop
Features Gallery Product Description Request A Quote
Features
Specifications
Table Movement: Automatic
Product Name: 5 Axis Bridge Cutting Machine
Water Consumption: 3m3/H
Safety System: Available
Gross Power: 26kw
Blade Diameter: 350-600mm
Outline Dimension: 5600*3600*3500mm
Power Supply: AC
Highlight:

CNC Bridge Cutting Machine

,

5 Axis Bridge Cutting Machine

,

Countertop Bridge Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Create 450/600
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
5 Axis CNC Bridge Cutting Machine For Countertop
Product Specifications
Attribute Value
Table Movement Automatic
Product Name 5 Axis Bridge Cutting Machine
Water Consumption 3m³/H
Safety System Available
Gross power 26kw
Blade Diameter 350-600mm
Outline Dimension 5600*3600*3500mm
Power Supply AC
Product Description

The 5 Axis Bridge cutting machine features 5 Axis linkage CNC System Control with bus-based absolute value servo (including memory function for power off). It incorporates high-precision linear guide rails, ball screw transmission, and oil-immersed track structure. This machine offers multiple functions, high precision, and strong stability, making it ideal for various stone processing applications.

Key Features
  • Processing functions include arbitrary-shaped lines, fan-shaped plates, wash basin, and special-shaped edge profiling
  • Multiple processing functions in a compact footprint
  • Simple operation interface
  • Ideal equipment for professional stone processing
Technical Parameters
Parameter Unit Create 450 Create 600
Blade diameter range mm 350-450 350-600
Max processing size mm 3200*2000*120 3400*2000*180
Lifting stroke mm 300 500
Worktable size mm 3200*2000 3400*2000
Table tilting degree ° 0-85 0-85
Head rotating degree ° 0-360 0-360
Head tilting degree ° 0-90 0-90
Air speed m/min 15 15
Repeated accuracy of positioning mm 0.1mm/1000 0.1mm/1000
Main motor kw 18.5 (Permanent Magnetic Synchronous Motor) 22 (Permanent Magnetic Synchronous Motor)
Gross power kw 26 30
Water consumption m³/h 3 3
Outline dimension mm 5600*3600*3500 5800*3650*3900
Gross weight kg 6000 7500
5 Axis CNC Bridge Cutting Machine For Countertop 0 5 Axis CNC Bridge Cutting Machine For Countertop 1 5 Axis CNC Bridge Cutting Machine For Countertop 2
Applications

This high-quality bridge cutting machine delivers reliable performance for various applications including:

  • Granite cutting and processing
  • Bridge cutting applications
  • Stone cutting and shaping
  • Construction site operations
  • Manufacturing facility production
Support and Services

Our comprehensive support package ensures optimal performance and longevity of your machine:

  • 24/7 technical support hotline
  • On-site repair and maintenance services
  • Remote diagnostic and troubleshooting assistance
  • Regular maintenance checks and inspections
  • Operator training and education programs
Packing and Shipping

Product Packaging: The machine is securely packed in a wooden crate labeled with product details and shipping information to ensure safe delivery.

Shipping: We use trusted courier services with typical delivery within 7-14 business days. You'll receive a tracking number once your order ships.
