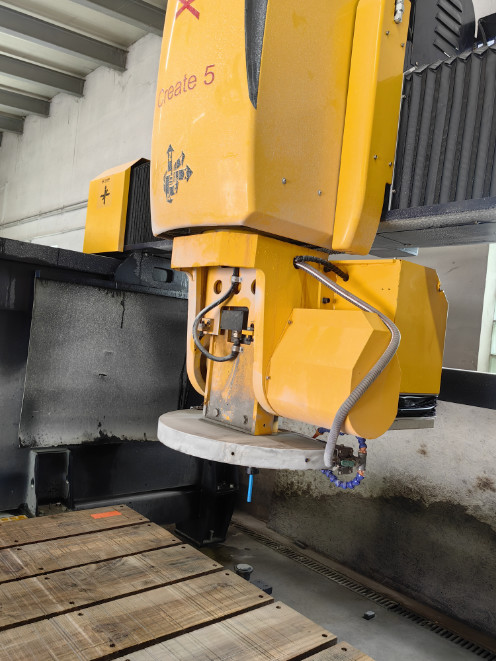

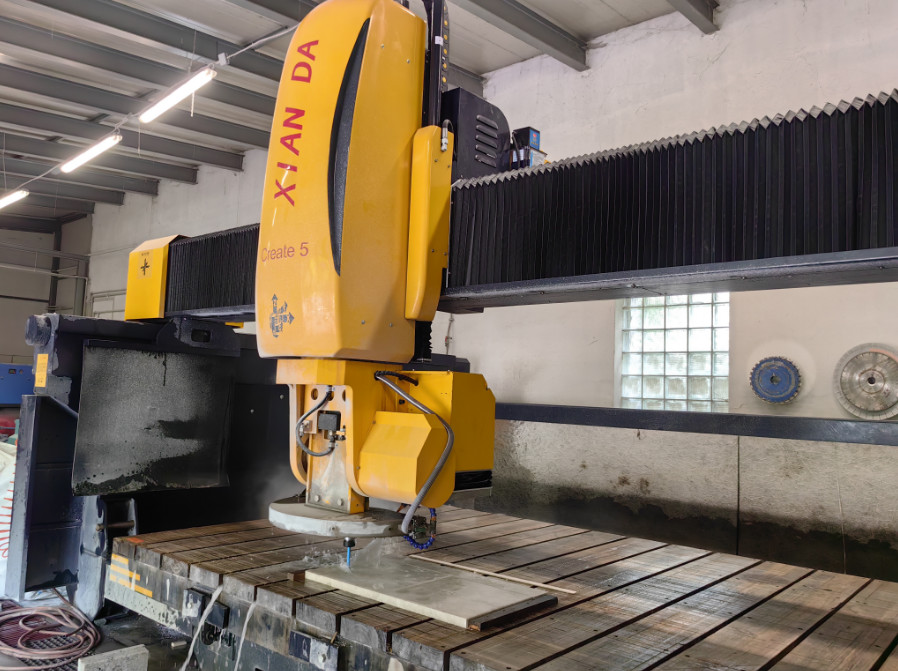

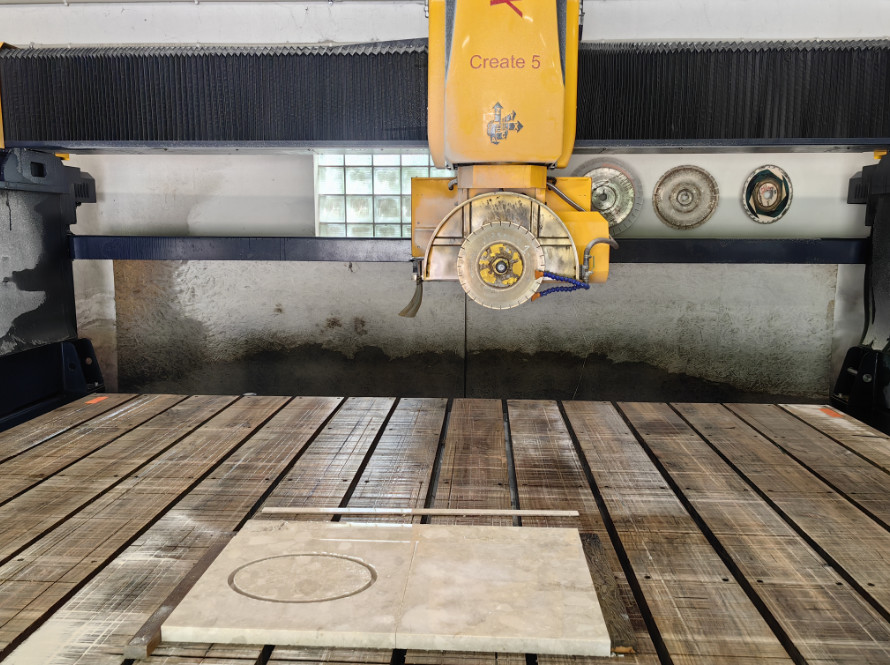

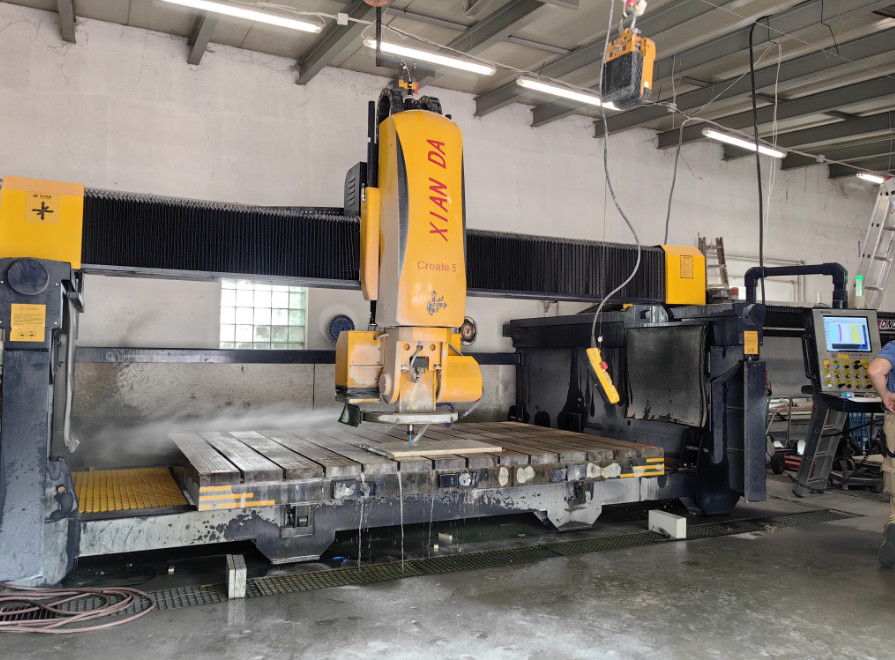

5 Axis Automatic Bridge Saw Cutting Machine for Granite Profiling Cutting
Product Description:
5 Axis Bridge cutting machine adopt 5 Axis linkage CNC System Control, Bus-based absolute value servo (with memoryfunction for power ofh, high-precision linear guide rall, ball screw transmission, oll-immersed track structure, with multi-func-tion, high precision, strong stabilitly and other advantages. ts processing functions include: arbitrary-shaped lines, fan-shapedplates, wash basin and special-shaped edge profiling, etc. The equipment has multiple processing functions, wide application,small space, and simple operation, lt is a great equipment for stone processing.
Technical Parameter
| Parameter |
Unit |
Create 450 |
Create 600 |
| Blade diameter range |
mm |
350-450 |
350-600 |
| Max processing size |
mm |
3200*2000*120 |
3400*2000*180 |
| Lifting stroke |
mm |
300 |
500 |
| Worktable size |
mm |
3200*2000 |
3400*2000 |
| Table tilting degree |
° |
0-85° |
0-85° |
| Head rotating degree |
° |
0-360° |
0-360° |
| Head tilting degree |
° |
0-90° |
0-90° |
| Air speed |
m/min |
15 |
15 |
| Repeated accuracy of positioning |
mm |
0.1mm/1000 |
0.1mm/1000 |
| Main motor |
kw |
18.5(permanent magnetic synchronous motor) |
22(permanent magnetic synchronous motor) |
| Gross power |
kw |
26 |
30 |
| Water consumption |
m³/h |
3 |
3 |
| Outline dimension |
mm |
5600*3600*3500 |
5800*3650*3900 |
| Gross weight |
kg |
6000 |
7500 |
Applications:
The machine is perfect for all types of stone cutting, including granite, marble, and other stones. It has a blade diameter of 2200-2800mm, making it one of the most powerful and efficient stone cutting machines on the market.
Countertops and Tiles: Cutting precise and customized kitchen and bathroom countertops, backsplashes, and floor tiles.
Packing and Shipping:
Product Packaging:
- Includes: Bridge Saw Cutting Machine, blade, water pump, and user manual
Shipping:
- Shipping method:By Sea Freight
