Integrated Automatic Bridge Cutting Machine For Precise Cutting

1
MOQ
To Be Negotiable
Price
Integrated Automatic Bridge Cutting Machine For Precise Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Product Name: Bridge Cutting Machine
Blade Diameter: 350-600mm
Water Consumption: 3m3/H
Power Supply: AC
Outline Dimension: 6000*3600*2950mm
Gross Weight: 7000kg
Gross Power: 20.5kw
Highlight:

Integrated Bridge Cutting Machine

,

Precise Cutting Bridge Cutting Machine

,

Automatic Bridge Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: ZDBL-450/600
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
Integrated Automatic Bridge Cutting Machine For Precise Cutting
Product Specifications
Attribute Value
Warranty 1 Year
Product Name Bridge Cutting Machine
Blade Diameter 350-600mm
Water Consumption 3m³/H
Power Supply AC
Outline Dimension 6000×3600×2950mm
Gross Weight 7000kg
Gross Power 20.5kw
Product Description
This advanced bridge cutting machine features a PLC system with human-machine intelligent operation interface. The main host utilizes double hydraulic lifting combined with chrome guide sleeves for minimal clearance, durability, and aesthetic appeal. The multi-layer seal design in the guide sleeves provides excellent water, dust, and leak protection. The side beam incorporates high-precision linear slide tracks, with all movements (left-right, forward-backward) precisely controlled by encoders.
Technical Parameters
Parameter Unit ZDBL-450 ZDBL-600
Blade diameter range mm 350-450 350-600
Max processing size mm 3200×2000×100 3200×2000×170
Worktable size mm 3200×2000 3200×2000
Worktable tilting degree ° 0-85° 0-85°
Blade rotation degree ° 0-90° 0-90°
Blade tilting (optional) ° 0/45°(optional) 0/45°(optional)
Water consumption m³/h 3 3
Main motor kw 15 (Permanent magnet motor) 15 (Permanent magnet motor)
Gross power kw 20.5 20.5
Outline dimension mm 6000×3600×2650 6000×3600×2950
Gross weight kg 6500 7000
Product Images

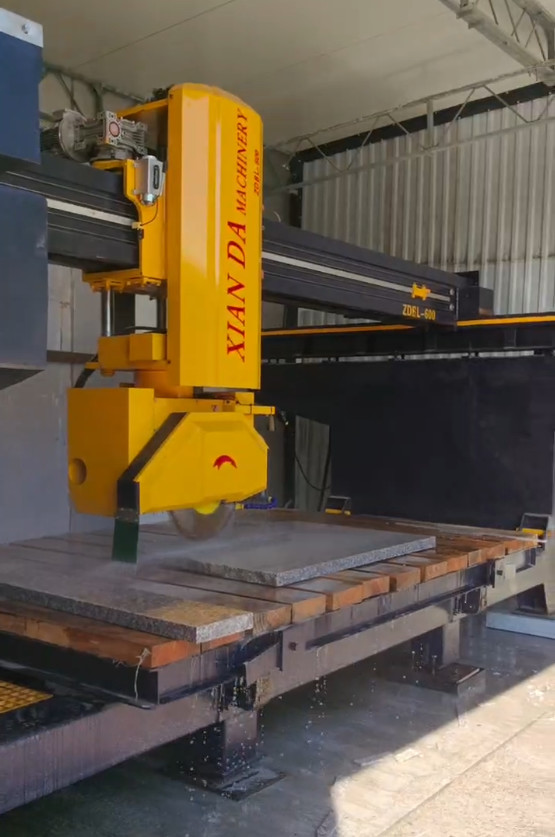

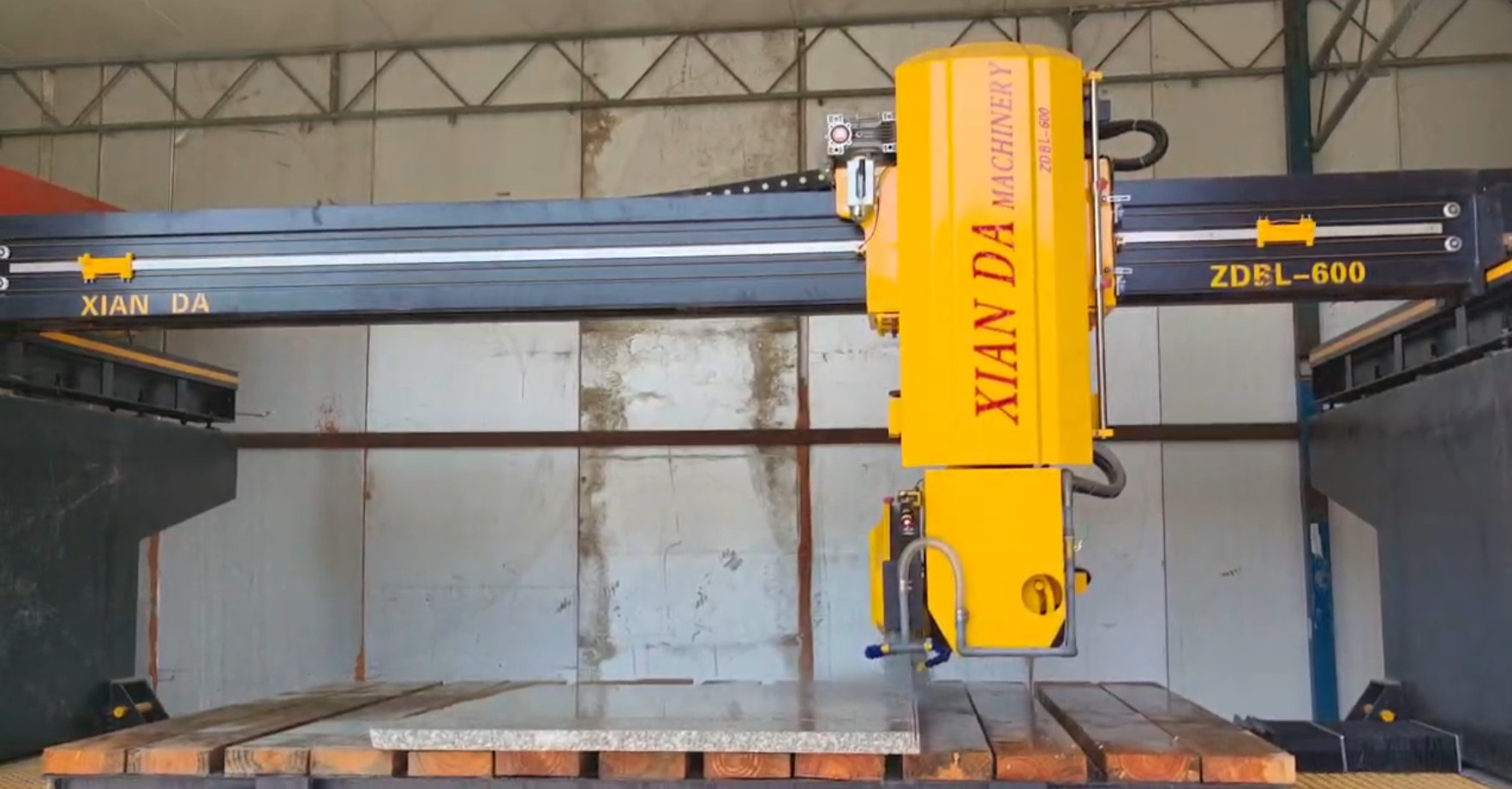

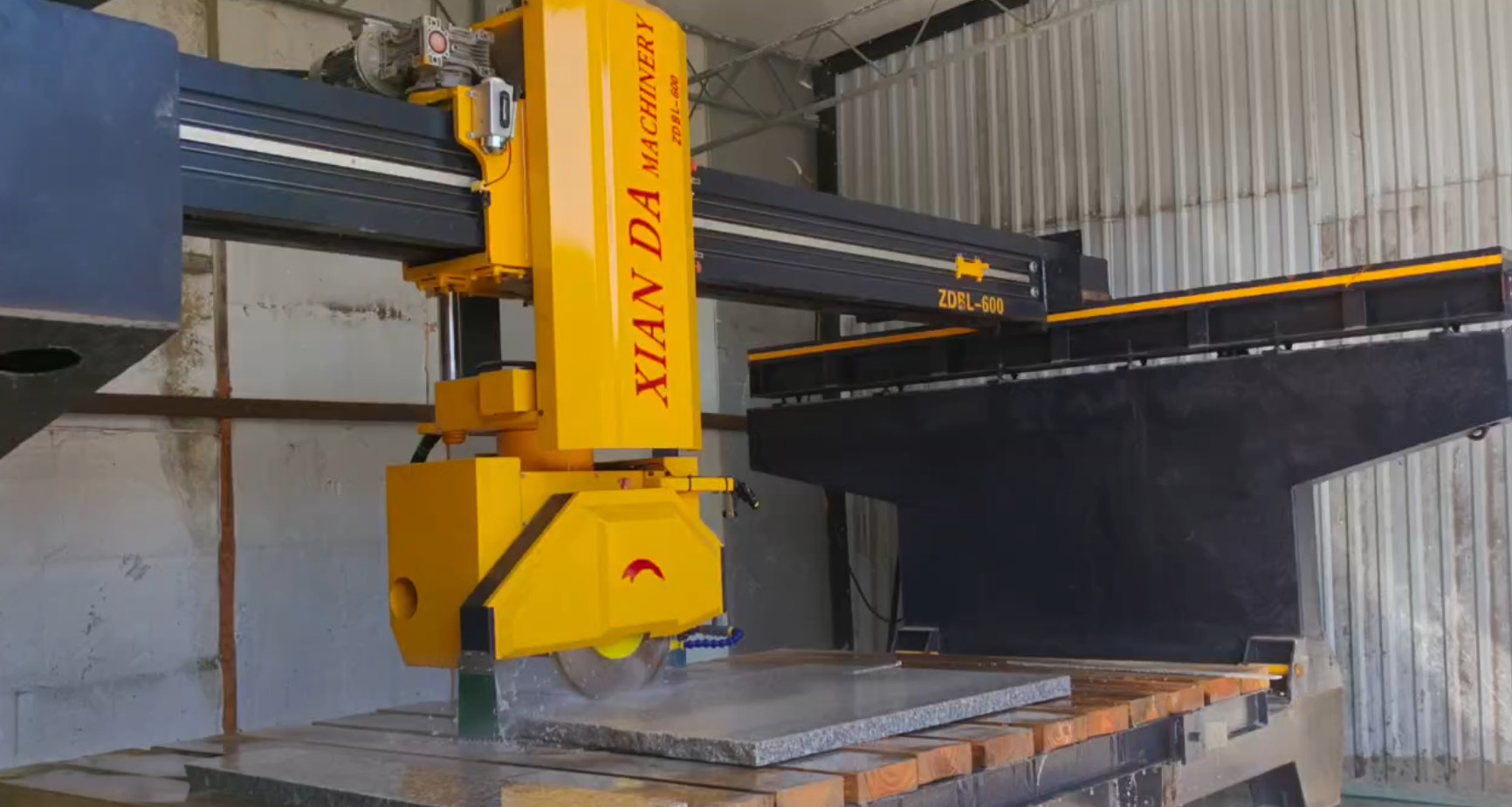

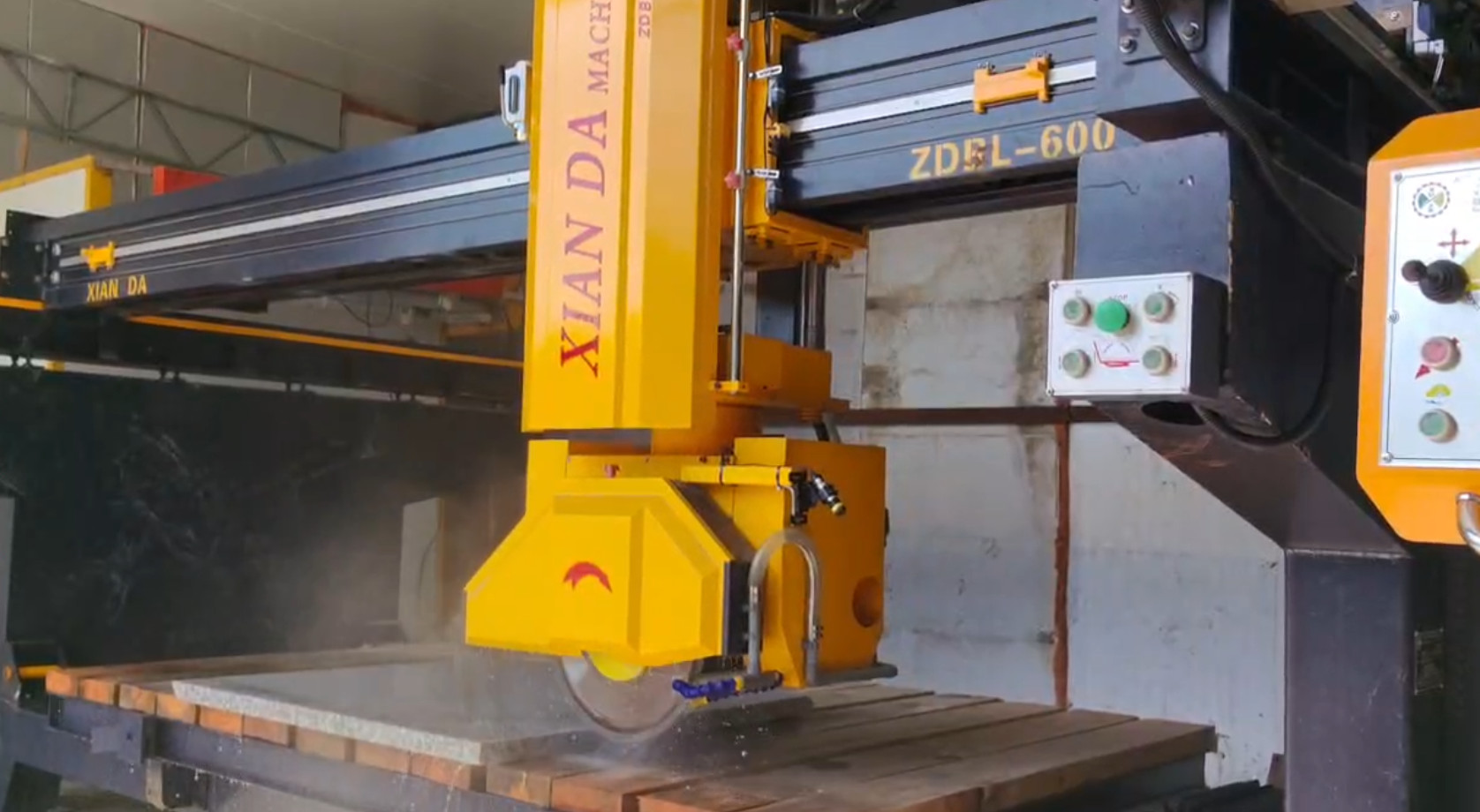

Integrated Automatic Bridge Cutting Machine For Precise Cutting 0 Integrated Automatic Bridge Cutting Machine For Precise Cutting 1 Integrated Automatic Bridge Cutting Machine For Precise Cutting 2
