4 Axis Linkage Cnc System Automatic Bridge Cutting Machine

1 SET
MOQ
To be negotiable
Price
4 Axis Linkage Cnc System Automatic Bridge Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Outline Dimension: 5000*3100*2700mm
Gross Weight: 5100kg
Safety System: Available
Table Movement: Automatic
Blade Diameter: 350-450mm
Product Name: Bridge Cutting Machine
Warranty: 1 Year
Gross Power: 18.5kw
Highlight:

Cnc System Bridge Cutting Machine

,

4 Axis Bridge Cutting Machine

,

Automatic Bridge Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: XIANDA MACHINERY
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Expand 450/Expand 450FA
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description

4 Axis Linkage Cnc System Automatic Bridge Cutting Machine



Product Description:

One of the standout features of this Bridge cutting machine is its automatic table movement, which allows for quick and easy positioning of the material being cut. This feature saves time and energy, making the cutting process faster and more efficient. Additionally, the machine is equipped with a safety system to ensure safe operation at all times.





Technical Parameter:

Parameter Unit Expand 450 Expand 450FA
Conrtol system type / 4 Axis system  Normal 5 Axis system
Blade diameter mm 350-450 350-400
Worktable size mm 3200*2000 3200*2000
Max processing size mm 3200*2000*100 3200*2000*100
Worktable tilting degree ° 0-85° 0-85°
Cutting head rotation degree ° 0-360° 0-360°
Cutting head rotation control mode / Servo motor control Servo motor control
Cutting head chamfer rotating degree ° 0-45°(Hydraulic control) 0-90°(Servo control)
Main motor power kw 15 18.5(permanent magnet motor)

Outline dimension

 mm 5000*3100*2700 5000*3100*2700

Water consumption

 m³/h 3 3

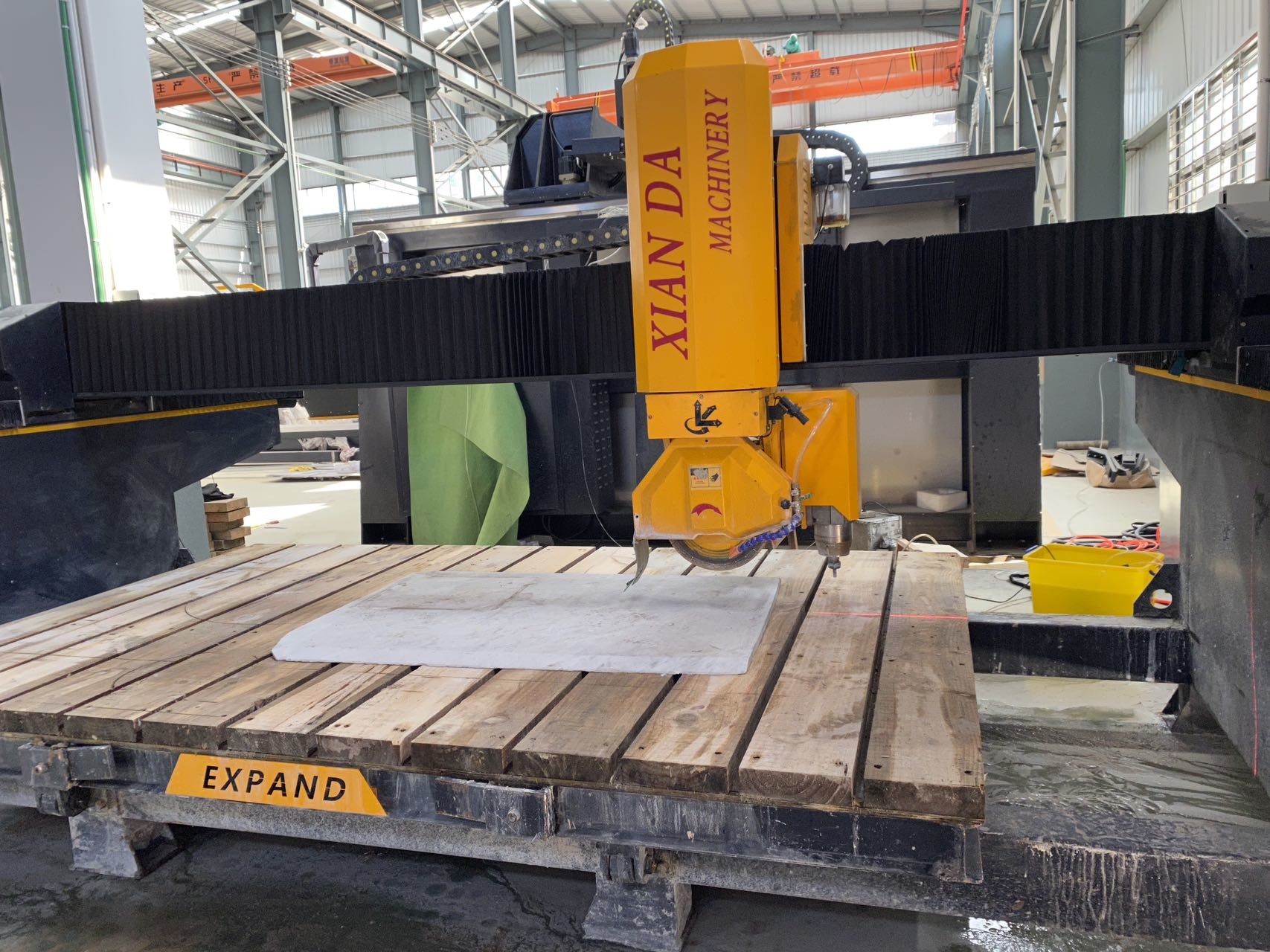

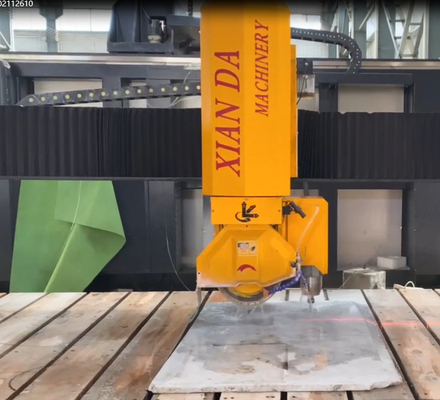

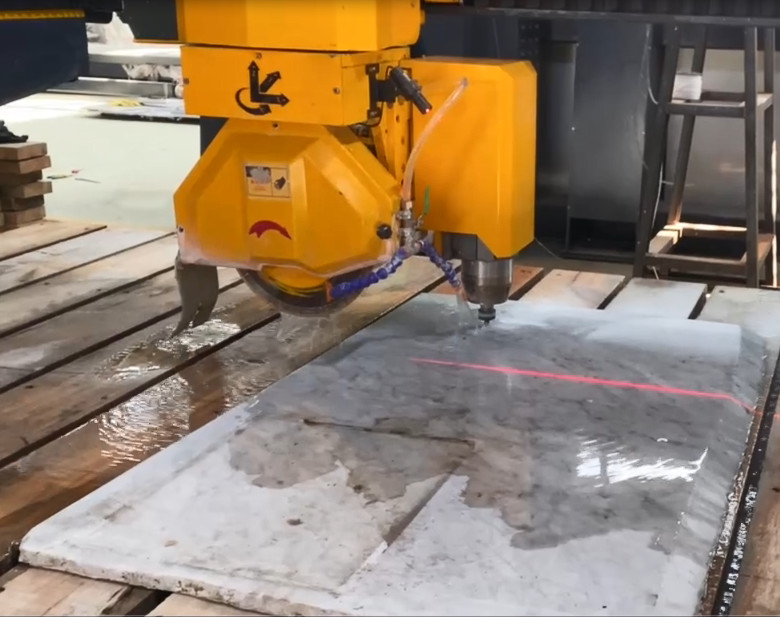

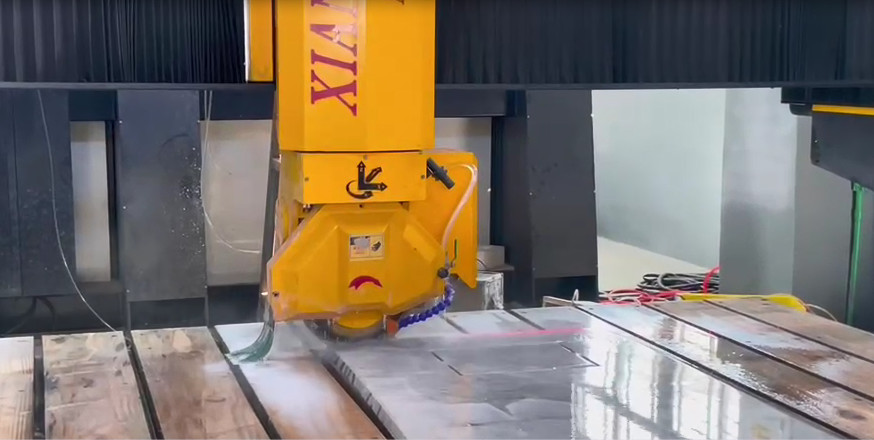

Products picture:

4 Axis Linkage Cnc System Automatic Bridge Cutting Machine 04 Axis Linkage Cnc System Automatic Bridge Cutting Machine 14 Axis Linkage Cnc System Automatic Bridge Cutting Machine 2
