Power CNC Bridge Cutting Machine With Automatic Table Movement

1
MOQ
To Be Negotiable
Price
Power CNC Bridge Cutting Machine With Automatic Table Movement
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Gross Weight: 5100kg
Product Name: Bridge Cutting Machine
Gross Power: 57/67kw
Safety System: Available
Table Movement: Automatic
Blade Diameter: 2200-2800mm
Outline Dimension: 8000*4800*3700mm
Highlight:

CNC Bridge Cutting Machine

,

Automatic Table Movement Bridge Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: BTC-2200/2500/2800
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
Power CNC Bridge Cutting Machine With Automatic Table Movement
Product Specifications
Attribute Value
Warranty 1 Year
Gross Weight 5100kg
Product Name Bridge Cutting Machine
Gross power 57/67kw
Safety System Available
Table Movement Automatic
Blade Diameter 2200-2800mm
Outline Dimension 8000*4800*3700mm
Product Description
This advanced CNC bridge cutting machine features inverter-controlled left-right feeding with adjustable speed for different stone types. The hydraulic lifting system and high-precision screw nut driving ensure accurate forward-backward slicing. Constructed with imported materials for durability, this machine can be placed directly on the ground to reduce installation and maintenance costs.
Key advantages include high cutting efficiency, exceptional slicing precision, excellent plate flatness after cutting, and remarkable stability. Designed specifically for cutting high-value granite and marble blocks with easy operation.
Technical Specifications
Parameter Unit BTC-2200 BTC-2500 BTC-2800
Max blade diameter mm 2200 2500 2800
Left and right travel mm 3800 3500 3200
Moving front&back travel mm 2200 2200 2200
Lifting stroke mm 1320 1320 1320
Main motor kw 45/55 45/55 55/65
Gross power min/㎡ 57/67 57/67 67/77
Outline dimension mm 8000*4800*3700 8000*4800*3700 8000*4800*3700
Water consumption m³/h 15 15 15
Gross weight kg 14000 14500 15000
Support and Services
Our Bridge Saw Cutting Machine comes with comprehensive technical support including installation assistance, operator training, and ongoing maintenance services. We offer customization options such as blade sizes and cutting depths to optimize your production efficiency.
Our dedicated support team provides prompt assistance to ensure your machine operates at peak performance throughout its service life.

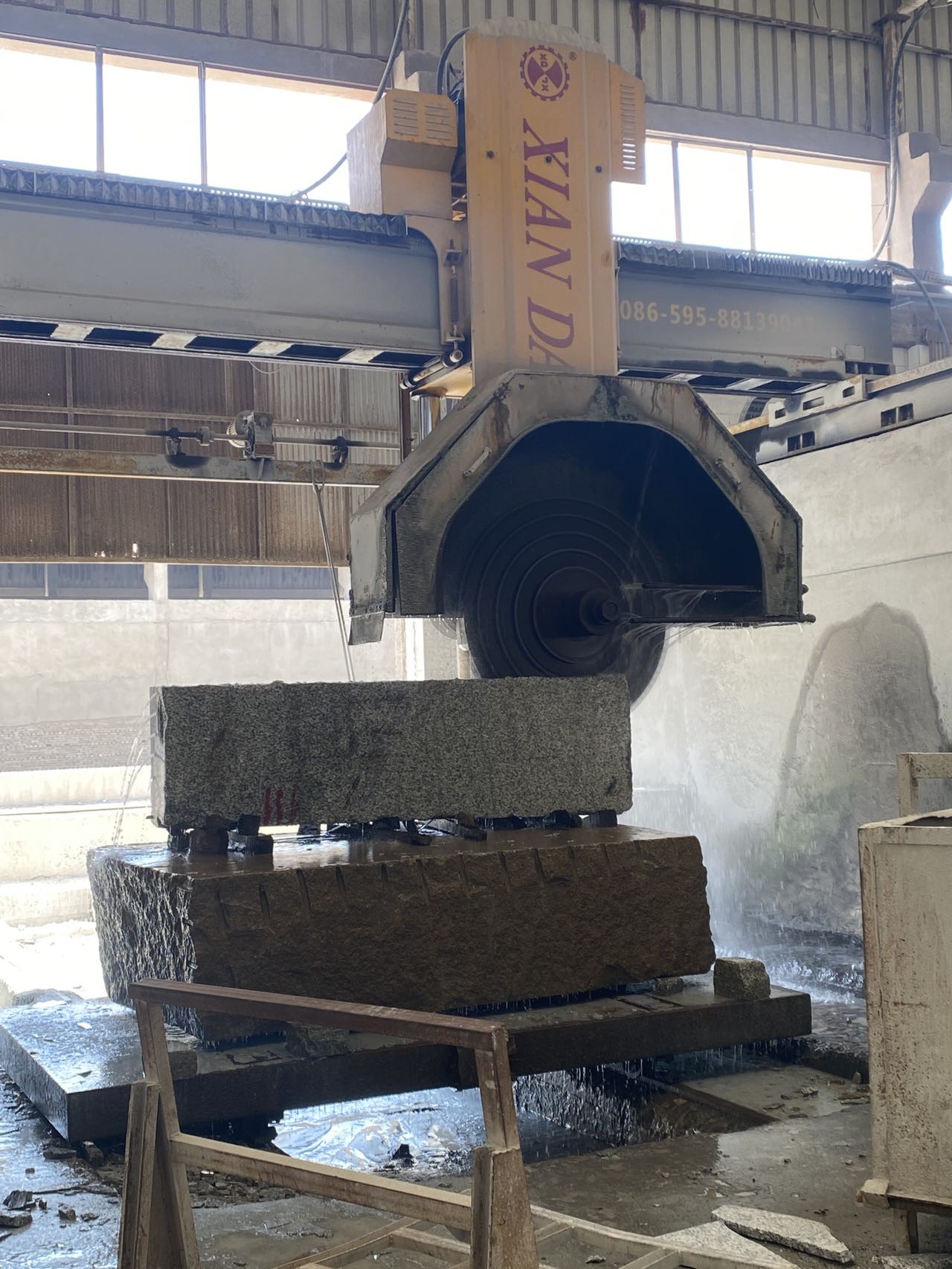

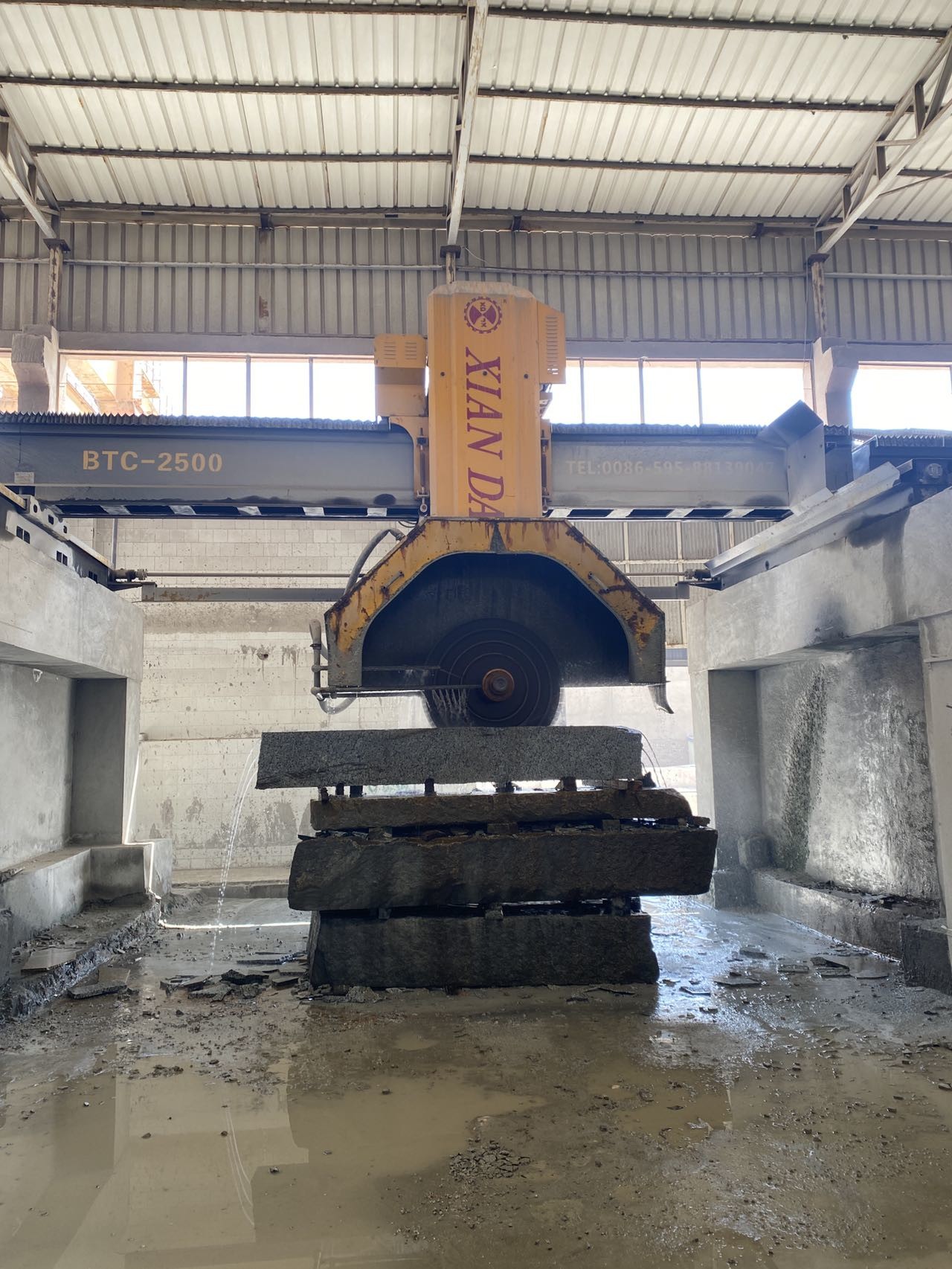

Power CNC Bridge Cutting Machine With Automatic Table Movement 0 Power CNC Bridge Cutting Machine With Automatic Table Movement 1
