Attribute | Value |
---|---|
Outline Dimension | 5850*4750*3400mm |
Safety System | Available |
Warranty | 1 Year |
Blade Diameter | 500-800mm |
Product Name | Bridge Cutting Machine |
Table Movement | Automatic |
Water Consumption | 3m3/H |
Power Supply | AC |

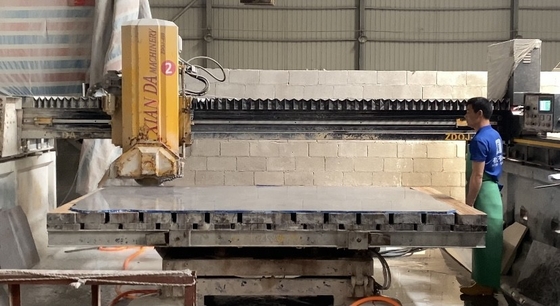

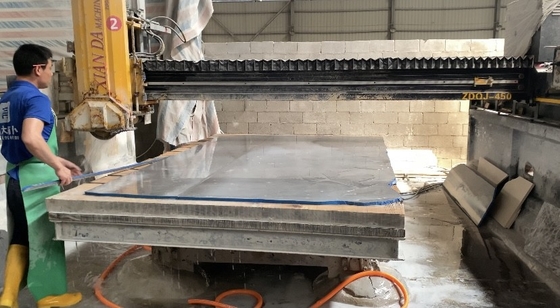

This machine is controlled by microcomputer, with a worktable that can rotate 90°/360°. Its special structure for the guide pulley and side beam ensures high cutting accuracy, stability, and efficiency. It's especially suitable for processing large granite and marble plates.
Parameter | Unit | ZDQJ-450 | ZDQJ-600 | ZDQJ-800 |
---|---|---|---|---|
Blade diameter | mm | 300-450 | 350-600 | 500-800 |
Max processing size | mm | 3200*2000*100 | 3200*2000*170 | 3200*2000*270 |
Trolley size | mm | 3200*2000 | 3200*2000 | 3200*2000 |
Worktable tilting angle | ° | 0-85° | 0-85° | 0-85° |
Worktable rotating angle | ° | 0-90°/0-360° | 0-90°/0-360° | 0-90°/0-360° |
Main motor | kw | 15 | 18.5/22 | 22 |
Gross power | kw | 20.5 | 24/27.5 | 27.5 |
Water consumption | m³/h | 3 | 3 | 3 |
Outline dimension | mm | 5850*4750*2700 | 5850*4750*3000 | 5850*4750*3400 |
Gross weight | kg | 5500 | 5750 | 6000 |
Our Bridge Saw Cutting Machine is backed by comprehensive technical support and services, ensuring that you get the most out of your investment. Our skilled technicians are available to provide assistance with installation, setup, and maintenance, as well as troubleshooting and repairs in the unlikely event that an issue arises.
In addition to our technical support, we offer a range of services to help you get the most out of your Bridge Saw Cutting Machine. These services include training for your staff, software updates and upgrades, and customization options to suit your specific needs.
With our commitment to customer satisfaction and our extensive knowledge of our products, you can trust that our technical support and services will keep your Bridge Saw Cutting Machine running smoothly and efficiently for years to come.
