Home /Products/Bridge Saw Cutting Machine/5 Axis Bridge Cutting Machine For Profiling

5 Axis Bridge Cutting Machine For Profiling

1 set
MOQ
To Be Negotiated
Price
5 Axis Bridge Cutting Machine For Profiling
Features Gallery Product Description Request A Quote
Features
Specifications
Blade Material: Diamond
Type: Bridge Cutting Machine
Application: Stones，marble，granite
Blade Diameter Range: 350-600mm
Lifting Stroke: 500mm
Air Speed: 15m/min
Highlight:

24'' Marble Saw Blade 600mm

,

18 inch diamond blade 450mm

,

20'' Marble Saw Blade 500mm
Basic Infomation
Place of Origin: China
Brand Name: Xianda Machinery
Certification: API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Create 450/600
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000PCS/Year
Product Description

5 Axis Bridge Cutting Machine For Profiling



Product Description:

5 Axis Bridge cutina machine adoot 5 Axis linkage CNC Svstem Control, Bus-based absolute value servo (with memoryfunction for power off), high-precision linear quide rail, ball screw transmission, oil-immersed track structure, with multi-func-tion, high precision, strong stability and other advantages. its processing functions include: arbitrary-shaped lines, fan-shapedplates, wash basin and special-shaped edge profiling, etc. The equipment has multiple processing functions, wide application.small space, and simple operation. lt is a great equipment for stone processing.


5 Axis Bridge Cutting Machine For Profiling 0
Parameter Unit Create 450 Create 600
Blade diameter range mm 350-450 350-600
Max processing size mm 3200*2000*120 3400*2000*180
Lifting stroke mm 300 500
Worktable size mm 3200*2000 3400*2000
Table tilting degree ° 0-85° 0-85°
Head rotating degree ° 0-360° 0-360°
Air speed m/min 15 15
Repeated accuracy of positioning mm 0.1mm/1000 0.1mm/1000
Main motor kw 18.5(Permanent magnetic system synchronous motor) 22(Permanent magnetic system synchronous motor)
Gross power kw 26 30
Water consumption m³/h 3 3
Outline dimension mm 5600*3600*3500 5800*3650*3900
Head tilting degree ° 0-90° 0-90°
Gross weight kg 6000 7500

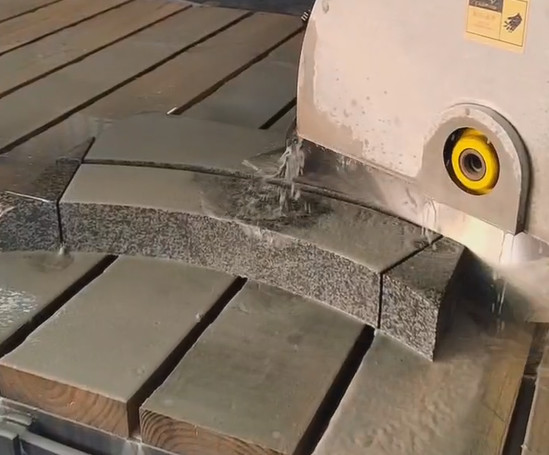

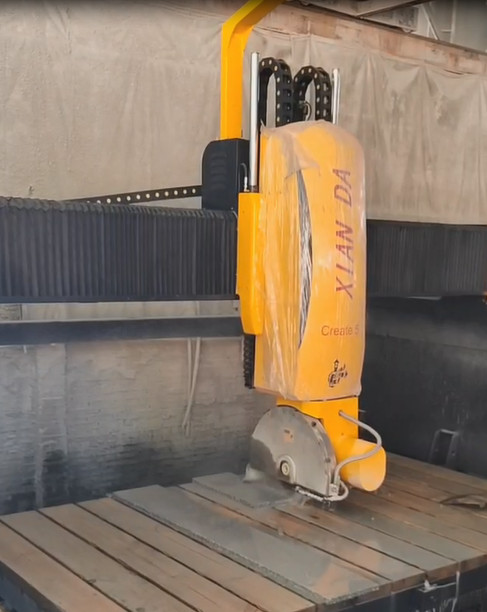

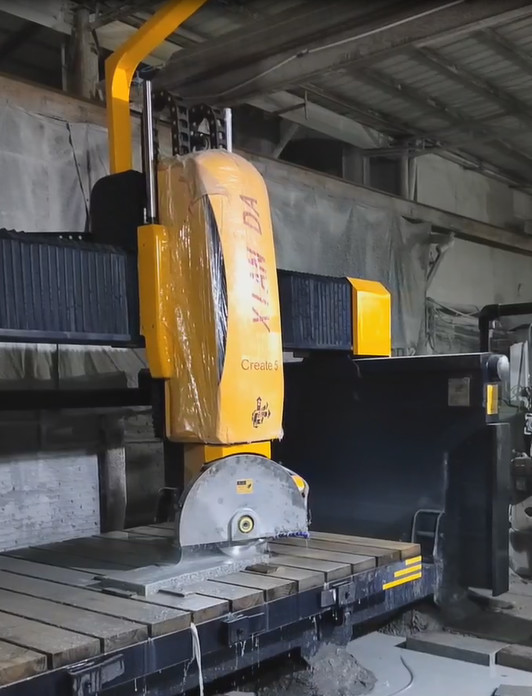

Prpducts picture:

5 Axis Bridge Cutting Machine For Profiling 1
5 Axis Bridge Cutting Machine For Profiling 25 Axis Bridge Cutting Machine For Profiling 35 Axis Bridge Cutting Machine For Profiling 4


Tag:

Bridge Saw Cutting Machine 3200x2000mm

marble block cutting machine 2800mm

Granite Stone Cutter 3200mm
