Home /Products/Bridge Saw Cutting Machine/Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency

Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency

1 set
MOQ
To Be Negotiated
Price
Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency
Features Gallery Product Description Request A Quote
Features
Specifications
Blade Material: Diamond
Type: Bridge Cutting Machine
Application: Cutting,Marble,Granite
Advantage: Fast Cutting Speed,High Sharpness
Usage: Granite,marble,Stone
Diameter (mm): 700-1200mm
Highlight:

250mm Diamond Saw Blades

,

300mm Diamond Circular Disc

,

Diamond Saw Blades 350mm
Basic Infomation
Place of Origin: China
Brand Name: Xianda Machinery
Certification: API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: WKQ-1200
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 100, 000, 000 PCS/Year
Product Description

Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency



Technicial Parameter:

Parameter Unit WKQ-1200
Blade diameter range mm 700-1200
Max lifting travel mm 760
Trolley size mm 3000*2000
Worktable rotating angle ° 0-90
Main motor kw 22-6/30-6(optional)
Gross power kw 29/37(optional)
Outline dimension mm 6150*4800*4400(Including foundation height)
Gross weight kg 6800
Water consumption m³/h 4


Product Description:

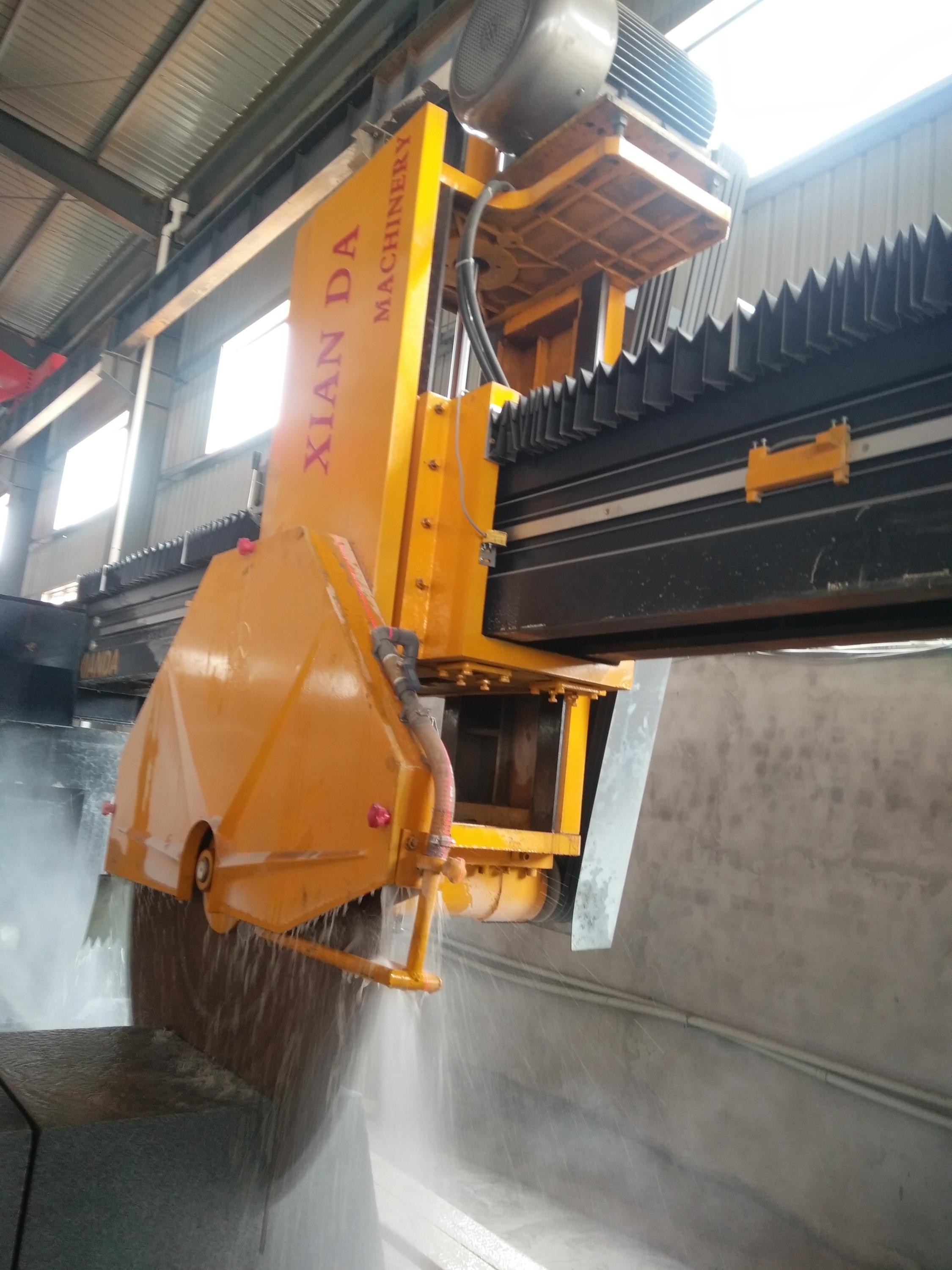

This machine is with single-cylinder sliding plate structure, it can adjust the wear space, lift up and down speed fast and stable.
It's suitable for cutting thick slabs, and square blanks.



700-1200mm Blade diameter range


Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency 0




Picture picture:
Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency 1
Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency 2



Our Products:

1. diamond wire saw machine for quarry
2. double blade machine for granite quarry
3. horizontal core boring machine for horizontal drilling
4. DTH drilling machine for horizontal,vertical, inclined drilling
5. diamond wire for stone quarrying, squaring, profiling
6. diamond segments for all sorts of stone cutting
7. diamond blade for all sorts of stone cutting
8. diamond grinding and polishing tools

Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency 3
