Home /Products/Bridge Saw Cutting Machine/Block Cutting Machine For Granite And Marble

Block Cutting Machine For Granite And Marble

1 set
MOQ
To Be Negotiated
Price
Block Cutting Machine For Granite And Marble
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Block Cutting Machine
Max Blade Diameter: 2200/2500/2800mm
Lifting Stroke: 1320mm
Water Consumption: 15m³/h
Moving Front&back Travel: 2200mm
Application: Granite Marble Slabs
Gross Weight: 14000kg
Highlight:

350mm 14 Inch Diamond Blades

,

saw blade for cutting stone 3.3x15mm

,

14 Inch Diamond Blades
Basic Infomation
Place of Origin: Jinjiang,Fuzhou,China
Brand Name: Xianda Machinery
Certification: API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: BTC-2200/2500/2800
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 PCS/Year
Product Description

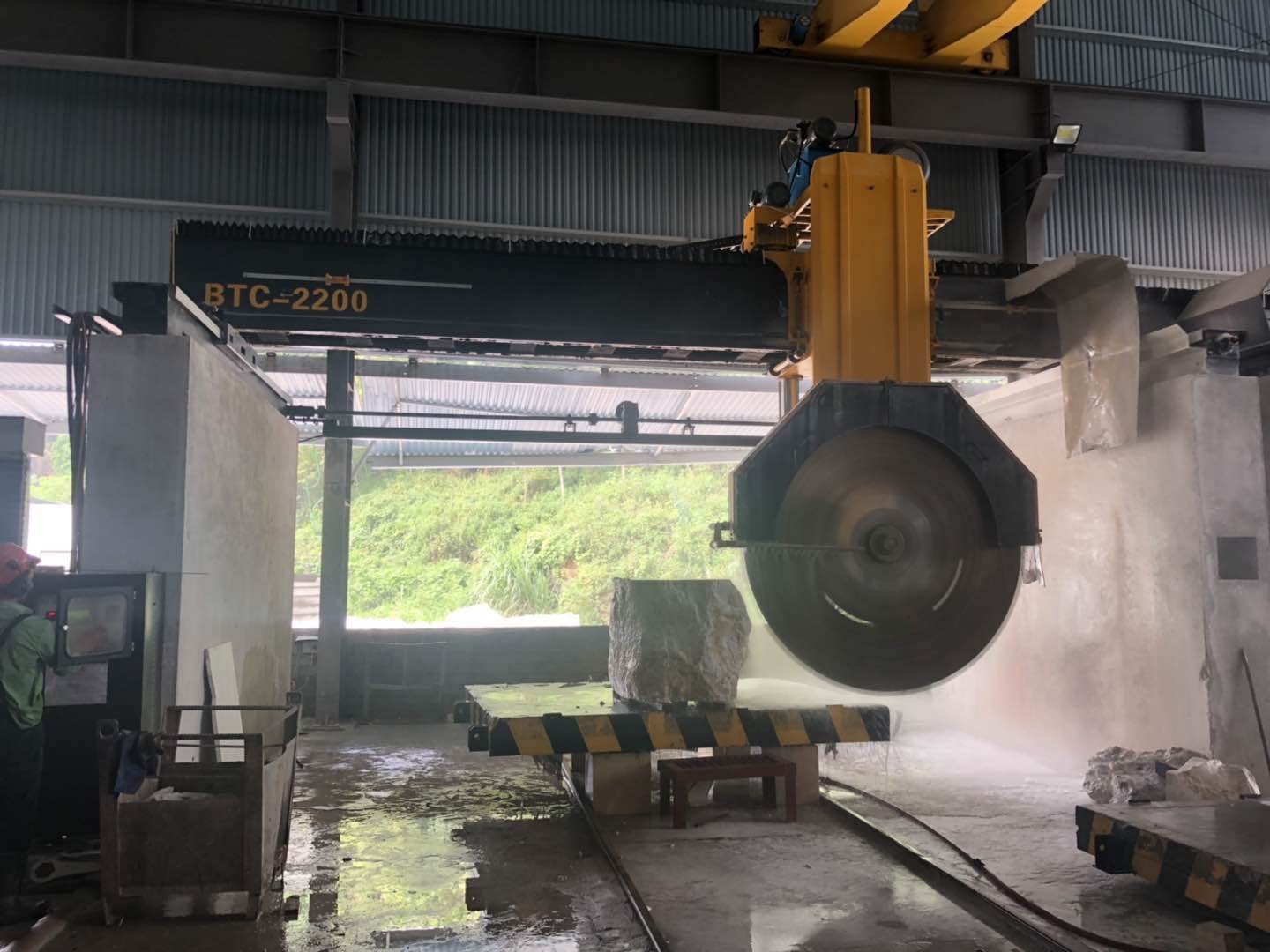

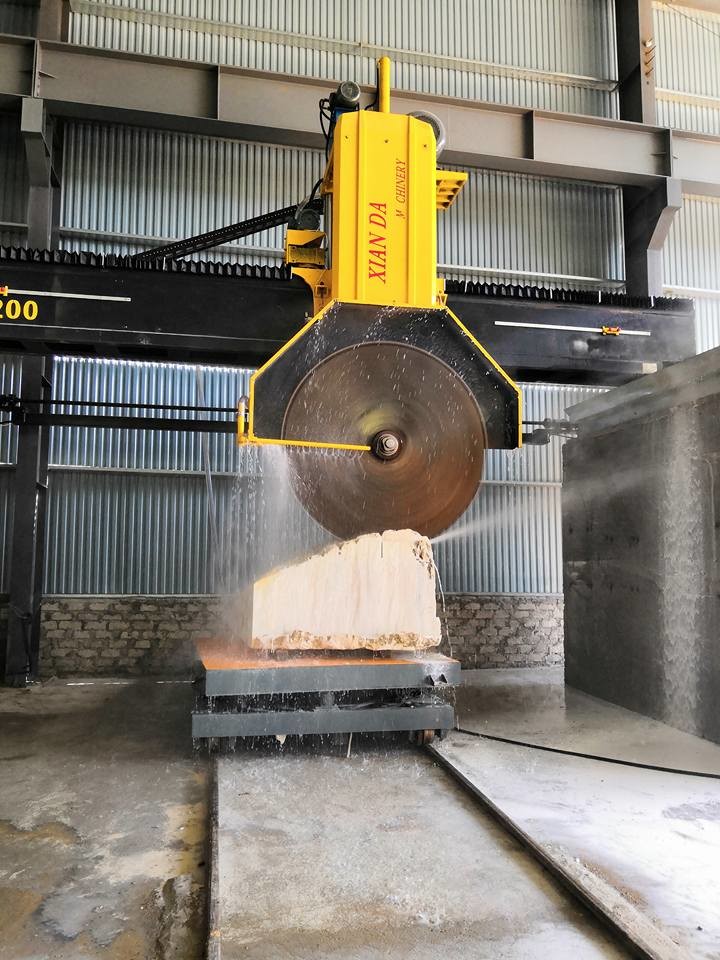

Block Cutting Machine For Granite And Marble

Product Description:

This machine use inverter to control the left-right feeding, it can adjust the speed according to diferent kind stones. lt uses hy.draulic lifting system, forward-backward slicing use high-precision screw nut driving, automatic slicing, main parts adopt importecmaterials; The block can be placed in the ground directly to save workable'and its maintenance costs; Thus the whole machine isfeatured as high cuting eficiency, high slicing precision, flatness of plate after cuting, high stablity,easy-operating to suit speciallycutting granite and marble block with high value.



Technicial Parameter:



parameter Max blade diameter Left and right travel Moving fron&back travel Lifting stroke Main motor Gross power Outline dimension Water consumption Gross weight
BTC-2200 2200mm 3800mm 2200mm 1320mm 45/55kw 57/67min/㎡ 8000*4800*3700mm 15m³/h 14000kg
BTC-2500 2500mm 3500mm 2200mm 1320mm 45/55kw 57/67min/㎡ 8000*4800*3700mm 15m³/h 14500kg
BTC-2800 2800mm 3200mm 2200mm 1320mm 55/65kw 67/77min/㎡ 8000*4800*3700mm 15m³/h 15000kg





Block Cutting Machine For Granite And Marble 0

Block Cutting Machine For Granite And Marble 1Block Cutting Machine For Granite And Marble 2Block Cutting Machine For Granite And Marble 3
Block Cutting Machine For Granite And Marble 4
