Home /Products/Bridge Saw Cutting Machine/Automatic Mono Bridge Saw Cutting Machine With Siemens PLC

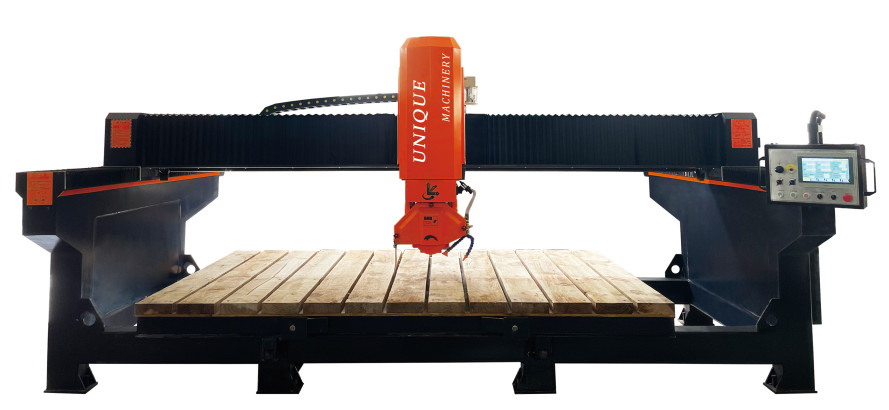

Automatic Mono Bridge Saw Cutting Machine With Siemens PLC

1set
MOQ
To Be Negotiated
Price
Automatic Mono Bridge Saw Cutting Machine With Siemens PLC
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: ZDCM-400
Control: PLC
Blade Diameter: Φ300-Φ600
Max Processing Size: 3200*2000*80mm
Dimension Of Worktable: 3200*2000mm
Workable Tilting Degree: 0-85°
Worktable Rotation Degree(Optional): 0-90° / 0-360°
Main Motor: 15kw
Water Consumption: 3m3/H
Outline Dimension: 5000*3100*2600mm
Transport Package: Load In A 40 Feet Container
Specification: 5000*3100*2600mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Bridge Cutting Machine
Usage: Granite
Application: Construction
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Highlight:

Automatic Mono Bridge Saw Cutting Machine

,

15kw Bridge Saw Machine

,

Siemens PLC Bridge Saw Cutting Machine
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: API
Model Number: ZDCM-400
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets Per Year
Product Description

Zdcm-400 Xianda Automatic Mono Bridge Saw Machine with Siemens PLC for Slab Edge Cutting and Chamfering

Product Description

ZDCM-400
Monoblock bridge cutting machine(special for Marble and sintered stone)
This machine adopts Microcomputer system, easy to operate; Integrated structure, easy to install;
The frame of the machine boday is proceesed and formed by CNC gantry milling center at one time, using high-precision linear guide sliders, grinding-grade ball screws, and high -end servo systems. It greatly improves the stablilty, processing accuracy and production efficiency of the equipment, and reduces the failure rate. it is suitable for all kinds of large-scale plate processing with high precision requirements and high value.



Technical Parameter
Parameter
Unit
ZDCM-400
Blade diameter
mm
 φ300-400
Max processing size
mm
3200*2000*80
Dimension of worktable
mm
3200*2000
Worktable tilting degree
°
0-85°
Worktable rotation degree
°
0-90°,0-360°
Main motor
kw
15
Water consumption
m³/h
 3
Outline dimension
mm
5000*3100*2600
Gross weight
kg
5500


Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
