Automatic Stone Cutting Machine 1200mm 22kw Bridge Cutting Machine

1
MOQ
To Be Negotiable
Price
Automatic Stone Cutting Machine 1200mm 22kw Bridge Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: WKQ-1200
Cutting Ability: High Speed
Control: PLC
Color: Black And Yellow
Max Blade Diameter: 1200mm
Max Lifting Travel: 760mm
Worktable Size: 3000X2000mm
Worktable Rotating Degree: 0-90°
Main Motor: 22kw
Gross Motor: 29kw
Water Consumption: 6m³/H
Gross Weight: 6800kgs
Specification: 6800X4800X4400mm
Trademark: UNIQUE
Origin: Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Warranty: 12 Months
Type: Bridge Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Customization: Available | Customized Request
Highlight:

Automatic Stone Cutting Machine

,

22kw Bridge Cutting Machine

,

Stone Cutting Machine 1200mm
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: ISO
Model Number: WKQ-1200
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/Year
Product Description
Automatic Stone Cutting Machine 1200mm 22kw Bridge Cutting Machine
Product Specifications
Attribute Value
Model NO. WKQ-1200
Cutting Ability High Speed
Control PLC
Color Black and Yellow
Max Blade Diameter 1200mm
Max Lifting Travel 760mm
Worktable Size 3000×2000mm
Worktable Rotating Degree 0-90°
Main Motor 22kw
Gross Motor 29kw
Water Consumption 6m³/H
Gross Weight 6800kgs
Specification 6800×4800×4400mm
Trademark UNIQUE
Origin Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
Warranty 12 Months
Type Bridge Cutting Machine
Usage Granite
Application Machinery & Hardware
Source Voltage 380V
Automation Automatic
Customization Available
Product Description

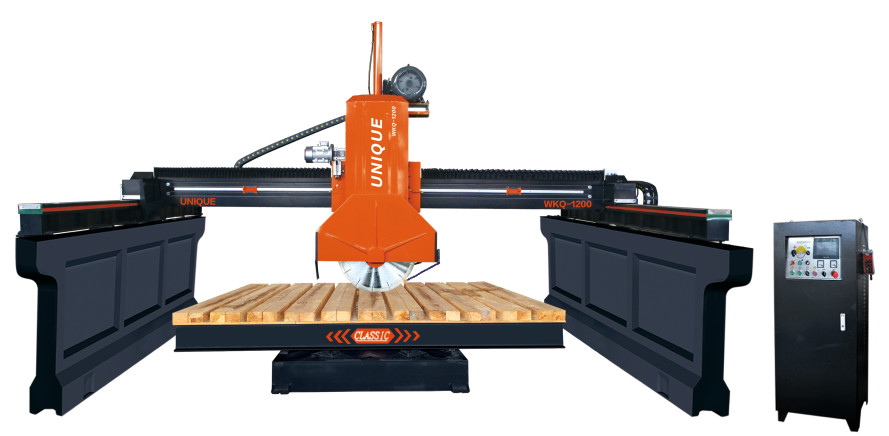

The WKQ-1200 middle bridge saw stone cutting machine is designed for cutting marble and granite with exceptional precision and efficiency.

This advanced machine features:

  • Reasonable structural design with PLC control system and human-machine interface
  • Bilingual operation (Chinese & English) with infrared device
  • Ultra-high precision rotary encoder for accurate cutting
  • Inverter-controlled left-right feeding with adjustable speed based on material
  • Hydraulic lifting system with slide plate and unique side beam protection
  • High-quality imported components for durability and performance

Key advantages include high cutting efficiency, exceptional stability, and user-friendly operation, making it ideal for shaped stone products, tombstones, and curb stones.

Technical Parameters
Parameter Unit WKQ-1200
Max blade diameter mm φ1200
Max lifting travel mm 760
Worktable size mm 3600×2000
Worktable rotating degree ° 0-90°
Outline dimension mm 6800×4800×4400
Main motor kw 22
Gross motor kw 29
Water consumption m³/h 6
Gross weight kg 6800
Certifications
Automatic Stone Cutting Machine 1200mm 22kw Bridge Cutting Machine 0
Our Services
Machine testing videos available with strict quality inspection before shipping
32 years manufacturing experience with over 70% market share in China for special shape stone cutting machines
Top 5 manufacturer with ISO & CE certification
Global distribution to over 20 countries with 10+ years international experience
Competitive pricing and volume discounts available
Production capacity exceeding 1000 sets annually
24/7 after-sales support with installation guidance and operator training
Frequently Asked Questions
Does this product support customization?

Yes, we offer customization options to meet specific requirements.

How do you ship the products?

Products are carefully packaged and shipped via reliable logistics partners.

What is the warranty for the product?

This machine comes with a 12-month warranty.
