Home /Products/Bridge Saw Cutting Machine/Automatic Stone Bridge Saw Cutting Machine For Granite Marble

Automatic Stone Bridge Saw Cutting Machine For Granite Marble

1set
MOQ
To Be Negotiated
Price
Automatic Stone Bridge Saw Cutting Machine For Granite Marble
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: ZDQJ-450/600/700
Cutting Ability: High Speed
Control: PLC
Color: Black And Yellow
Blade Diameter: 350-700mm
Max Processing Size: 3200X2000X230mm
Worktable Tilting Degree: 0-85°
Worktable Rotating Degree: 0-90°/0-360°
Gross Weight: 6000kgs
Specification: 5800X4700X3200mm
Trademark: UNIQUE
Origin: Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Warranty: 12 Months
Type: Bridge Cutting Machine
Usage: Granite
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Customization: Available | Customized Request
Highlight:

Automatic Bridge Saw Cutting Machine

,

marble slab cutting machine 350mm

,

700mm granite slab cutting machine
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: ISO
Model Number: ZDQJ-450/600/700
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets Per Year
Product Description

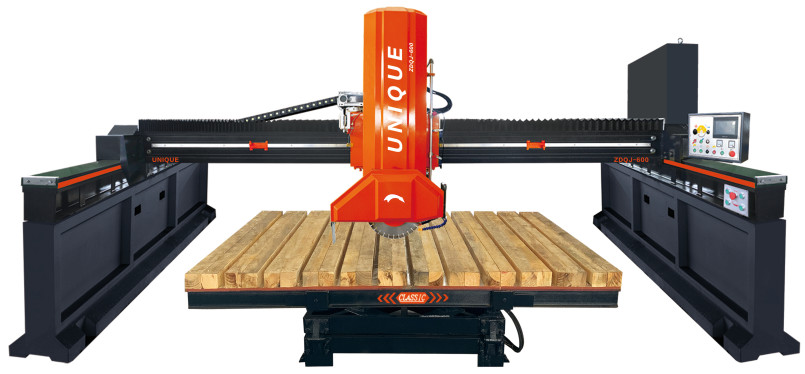

Automatic Stone Bridge Saw Cutting Machine for Granite/Marble

Product Description

ZDQJ-400-600-700, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported high-quality materials. Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy-operation, specially high value granite and  big size marble.

Parameter
ITEM NO. ZDQJ-450 ZDQJ-600 ZDQJ-700
Blade diameter   Φ300-Φ450mm   Φ350-Φ600mm   Φ350-Φ700mm
Max processing size 3200X2000X120mm 3200X2000X180mm 3200X2000X230mm
Dimension of worktable   3200X2000mm 3200X2000mm 3200X2000mm
Worktable tilting degree    0-85°  0-85°  0-85°
Worktable rotating degree 0-90°/0-360° 0-90°/0-360° 0-90°/0-360°
Main Motor 15kw 18.5kw 18.5kw
Gross Motor 21kw 24kw 24kw
Water consuption 4m³/h 4m³/h 4m³/h
Outline dimension 5800X4700X2900mm 5800X4700X3100mm 5800X4700X3200mm
Gross weight 5500kgs 5750kgs 6000kgs
Voltage 380V/50HZ/3PHZ





Certifications

Automatic Stone Bridge Saw Cutting Machine For Granite Marble 0

Our Services

Automatic Stone Bridge Saw Cutting Machine For Granite Marble 1


We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.

32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.

Top 5 stone cutting machine manufacturer with ISO&CE certificate.

Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.

We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.

After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.

We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.
