5 Axis Machining Center | High-Speed 5-Axis CNC Mill & Cutting & Carving for Precision Parts

1 SET
MOQ
To Be Negotiable
Price
5 Axis Machining Center | High-Speed 5-Axis CNC Mill & Cutting & Carving for Precision Parts
Features Gallery Product Description Request A Quote
Features
Specifications
System: 5 - Axis Linkage CNC System
Spindle: Imported BT Spindle
Transmission Mode: Rack Drive Mechanism
Control Technology: Bus Absolute Servo Control
Material: Steel Frame + Cast Iron Table
Warranty: 1 Year
Gross Power: 57/67kw
Multi Function Processing: Cutting & Carving Integration
Precision Machining: High
Type: Medium & Large Stone Focus
Performance: Strong Stability
Highlight:

5 Axis Machining Center

,

High-Speed 5 Axis CNC Mill

,

5-Axis CNC Mill
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Leader 1500/1500CM
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable For Sea Transportation
Delivery Time: 1 Month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description
5 Axis Machining Center | High-Speed 5-Axis CNC Mill & Cutting & Carving for Precision Parts
Product Specifications
Attribute Value
System 5-axis linkage CNC system
Spindle Imported BT spindle
Transmission mode Rack drive mechanism
Control Technology Bus absolute servo control
Material Steel Frame + Cast Iron Table
Warranty 1 Year
Gross power 57/67kw
Multi function processing Cutting & carving integration
Precision machining High
Type Medium & large stone focus
Performance Strong stability
5 Axis Machining Center | High-Speed 5-Axis CNC Mill & Cutting & Carving for Precision Parts 0 5 Axis Machining Center | High-Speed 5-Axis CNC Mill & Cutting & Carving for Precision Parts 1
Technical Parameters
Parameter Leader1500 Leader1500CM
X/Y/Z Travel 3800 × 2700 × 1500 mm 3800 × 3500 × 1500 mm
A/C Tilt & Rotation A 0-180°, C ±365° A 0-180°, C ±365°
Blade / Tool Range Φ350-700 mm Φ350-700 mm
Spindle 20 kW water-cooled BT40, 0-10 000 rpm 20 kW water-cooled BT40, 0-10 000 rpm
Table Size 3400 × 2000 mm fixed 3400 × 2000 mm + Φ50-600 mm rotary axis
Max Cylinder Length -- 3200 mm
Overall Footprint 6600 × 4000 × 5500 mm 6600 × 4800 × 5500 mm
Power 31 kW 34 kW
Weight 9 000 kg 11 000 kg
Key Features
  • True 5-Axis Simultaneous Control: Imported CNC system with EtherCAT bus absolute servo drives delivers micron-level repeatability for 3D bas-reliefs, intricate moldings and spiral columns.
  • 20 kW BT40 Spindle: Water-cooled, Italian-made, 10,000 rpm max. Handles 700 mm saw blades for fast slab squaring and micro-endmills for fine engraving in one setup.

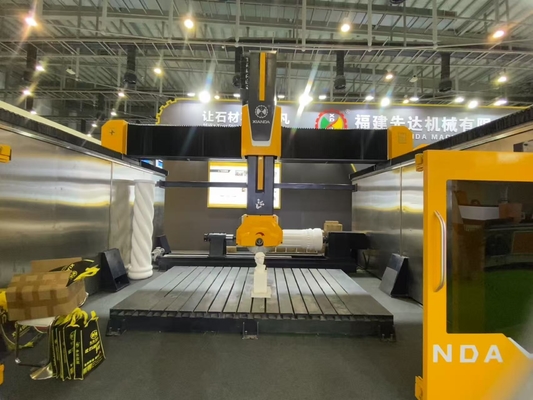

  • Hybrid Table Design: The Leader1500CM adds a 4th-axis rotary table (Φ50-600 mm, 3200 mm long) without sacrificing flat-table space.
  • Heavy-Duty Frame: 11-ton gantry, stress-relieved steel; rack-and-pinion on HIWIN linear rails for vibration-free cutting at 30 m/min.
  • Stone-Specific Software: Pre-loaded macros for profiling, arch cutting, sink cut-outs, crown molding and column fluting.
Applications
  • Kitchen islands with waterfall edges
  • Roman column carving (Leader1500CM's rotary axis)
  • 3D logos on lobby floors
  • Fireplace mantels with undercut details
  • Cemetery monuments and statues
Maintenance & Support
  • Water consumption ≤ 3 m³/h--closed-loop chiller compatible
  • Tool magazine (optional) 12 positions, HSK-F63 quick-change
  • Remote diagnostics via Ethernet--technician login within 2 hours globally
Contact group@chinaxianda / WAS 8613055673306 for instant quotation.
