Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement

1 SET
MOQ
To be negotiable
Price
Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement
Features Gallery Product Description Request A Quote
Features
Specifications
Water Consumption: 3m3/H
Blade Diameter: 350-450mm
Safety System: Available
Main Power: 15kw
Gross Weight: 5100kg
Power Supply: AC
Warranty: 1 Year
Table Movement: Automatic
Highlight:

Bridge Saw Cutting Machine

,

Xianda Bridge Saw Cutting Machine

,

Profiling Bridge Saw Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: XIANDA MACHINERY
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: Expand 450/Expand 450FA
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C， T/T， D/P， Western Union ，Paypal ，Money Gram， Others
Supply Ability: 1000 Sets/Year
Product Description

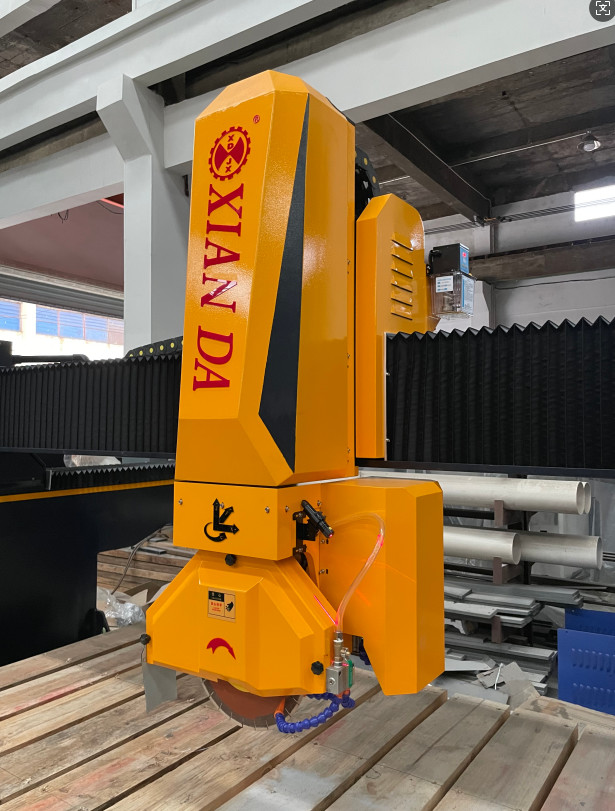

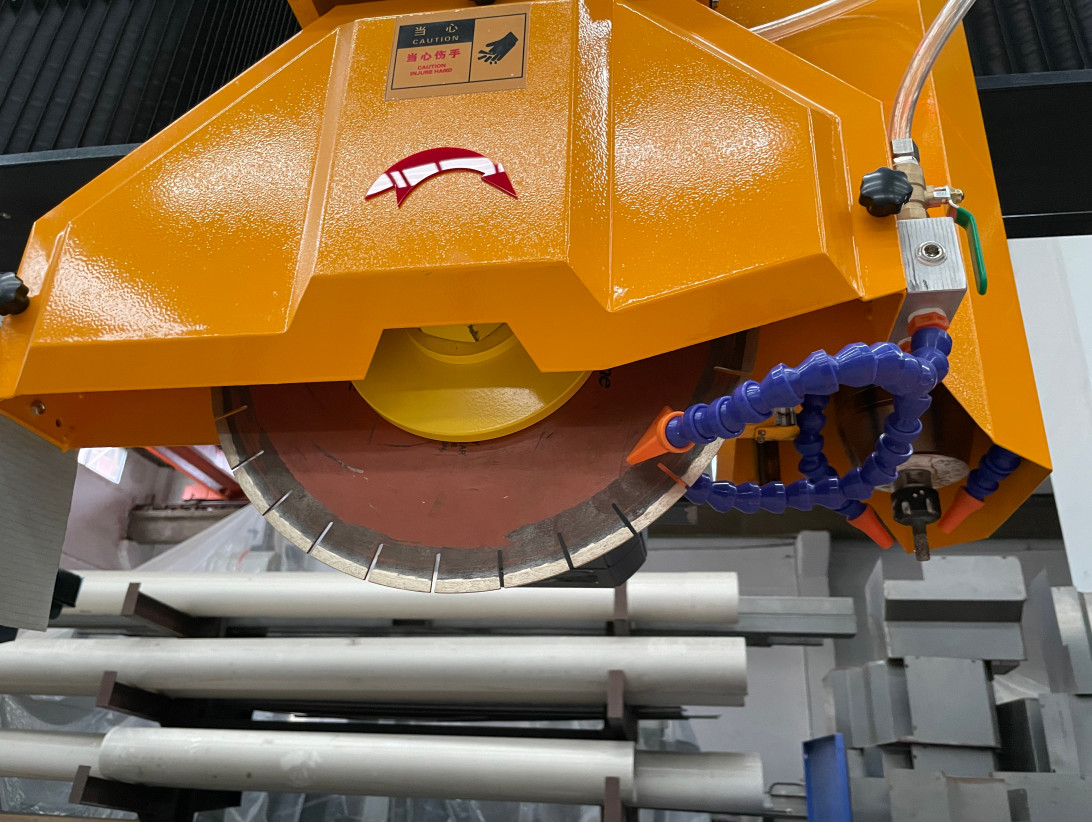

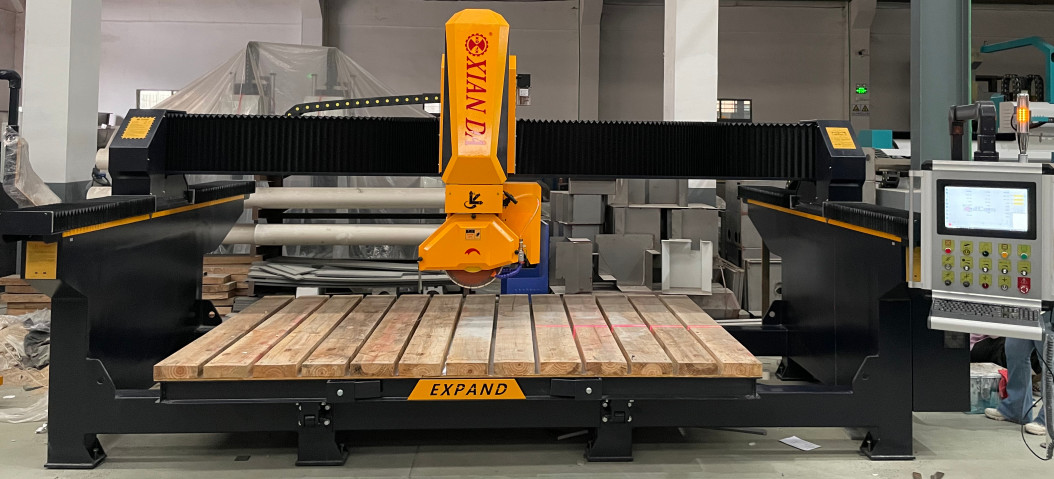

Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement
Product Overview

This industrial-grade bridge saw cutting machine features automatic table movement and comes with a 1-year warranty for manufacturing defects. Designed for precision profiling work, it delivers powerful performance with a 15kW motor and advanced cutting technology for demanding granite processing applications.

Key Specifications
Attribute Value
Water Consumption 3m³/H
Blade Diameter 350-450mm
Safety System Available
Main Power 15kw
Gross Weight 5100kg
Power Supply AC
Warranty 1 Year
Table Movement Automatic
Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement 0 Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement 1 Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement 2 Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement 3 Xianda Bridge Saw Cutting Machine For Profiling Automatic Table Movement 4
Technical Parameters
Parameter Unit Expand 450 Expand 450FA
Control system type / 4 Axis System Normal 5 Axis System
Blade diameter mm 350-450 350-450
Worktable size mm 3200*2000 3200*2000
Max processing size mm 3200*2000*100 3200*2000*100
Worktable tilting degree ° 0-85° 0-85°
Cutting head rotation degree ° 0-360° 0-360°
Cutting head rotation control mode / Servo motor control Servo motor control
Cutting head chamfer rotating degree ° 0-45° (Hydraulic Control) 0-90° (Servo Control)
Main motor power kw 15 18.5 (Permanent magnet motor)
Outline dimension mm 5000*3100*2700 5000*3100*2700
Water consumption m³/h 3 3
Applications

The Xianda Bridge Cutting Machine is engineered for precision granite processing with CNC capabilities for complex designs. Its versatile design makes it suitable for:

  • Granite processing factories and stone workshops
  • Construction sites requiring precise stone cutting
  • Art studios creating stone sculptures and decorative pieces
  • Processing various materials including marble, limestone, and sandstone
Support and Services
  • Professional installation and setup guidance
  • Comprehensive operator training program
  • Scheduled maintenance and repair services
  • 24/7 technical support hotline
  • Machine upgrade and customization options
Packaging and Shipping

Package Includes:

  • Bridge Saw Cutting Machine
  • Complete user manual

Shipping Information:

  • Estimated delivery: 30 business days
  • Tracking number provided
  • Shipping insurance included
Tag:

Bridge Saw Cutting Machine 3200x2000mm

marble block cutting machine 2800mm

Granite Stone Cutter 3200mm
