Home /Products/Bridge Saw Cutting Machine/Multi Blade Bridge Saw Cutting Machine Automatic Countertop Floor 3000mm 3500mm

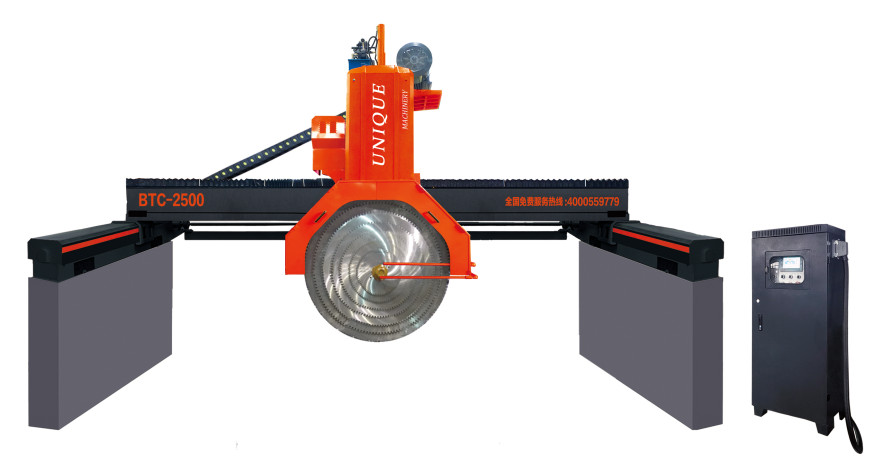

Multi Blade Bridge Saw Cutting Machine Automatic Countertop Floor 3000mm 3500mm

1set
MOQ
To Be Negotiated
Price
Multi Blade Bridge Saw Cutting Machine Automatic Countertop Floor 3000mm 3500mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: BTC-2500
Control: PLC
Max Blade Diameter: Φ2500mm
Max Processing Length: 3000/3500mm
Max Processing Width: 2500mm
Max Lifting Stroke: 1350mm
Water Consumption: 15m3/H
Main Motor: 45/55kw
Gross Motor: 56/66kw
Outline Dimension: 8000*48800*3700mm
Gross Weight: 14500kg
Blade: Multi-Blades
Transport Package: Load In A 40 Feet Container
Specification: 8000*48800*3700mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Bridge Cutting Machine
Usage: Granite
Application: Construction
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Highlight:

3000mm Bridge Saw Cutting Machine

,

2500mm granite countertop cutting machine

,

Countertop Floor Bridge Saw Cutting Machine
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: API
Model Number: BTC-2500
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets Per Year
Product Description
Multi Blade Bridge Saw Cutting Machine Automatic Countertop Floor 3000mm 3500mm
Product Specifications
Attribute Value
Model NO. BTC-2500
Control PLC
Max Blade Diameter Φ2500mm
Max Processing Length 3000/3500mm
Max Processing Width 2500mm
Max Lifting Stroke 1350mm
Water Consumption 15m³/H
Main Motor 45/55kw
Gross Motor 56/66kw
Outline Dimension 8000×48800×3700mm
Gross Weight 14500kg
Blade Multi-Blades
Transport Package Load in a 40 Feet Container
Specification 8000×48800×3700mm
Trademark UNIQUE
Origin Jinjiang, Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
Type Bridge Cutting Machine
Usage Granite
Application Construction
Source Voltage 380V
Automation Automatic
Cutting Ability High Speed
Customization Available
Product Description

The BTC-2200/2500/2800 Multi-blades Granite Marble Bridge Block Cutting Machine features inverter-controlled left-right feeding with adjustable speed. It utilizes a hydraulic lifting system combined with four guide poles and multi-function layer seals for waterproofing, dustproofing, and anti-spill protection.

The forward-backward slicing employs high-precision screw nut driving for automatic operation. Main spare parts use imported high-quality materials, and the block can be placed directly on the ground. This machine offers high cutting efficiency, precision slicing, excellent plate flatness after cutting, superior stability, and easy operation - making it an ideal equipment for stone fabrication plants.

Note: 360° rotating worktable is available as an optional feature.

Multi Blade Bridge Saw Cutting Machine Automatic Countertop Floor 3000mm 3500mm 0
Technical Parameters
Parameter Unit BTC-2200 BTC-2500 BTC-2800
Max blade diameter mm 2200 2500 2800
Max processing length mm 3600 3300 3200
Max processing width mm 2200 2200 2800
Max lifting stroke mm 1350 1350 1350
Water consumption m³/h 15 15 15
Main motor kw 45/55 45/55 55
Gross motor kw 56/66 56/66 66
Outline dimension mm 8000×4800×3700 8000×4800×3700 8000×4800×3700
Gross weight kg 14000 14500 15000
Our Service
  • Training for machine installation and operation
  • Engineers available for overseas machinery service
  • 24-hour online after-sales service

For any inquiries, please contact our sales or customer service departments at any time.

Frequently Asked Questions
Does this product support customization?

Yes, this machine is available with customization options to meet specific requirements.

How do you ship the products?

The machine is shipped in a 40-foot container for secure transportation.

What is the warranty for the product?

Please contact our sales department for detailed warranty information.

Tag:

Bridge Saw Cutting Machine 3200x2000mm

marble block cutting machine 2800mm

Granite Stone Cutter 3200mm
