Home /Products/Bridge Saw Cutting Machine/Laser Stone Granite Bridge Saw Cutting Machine 3200x2000mm

Laser Stone Granite Bridge Saw Cutting Machine 3200x2000mm

1set
MOQ
To Be Negotiated
Price
Laser Stone Granite Bridge Saw Cutting Machine 3200x2000mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: Zdqj-700
Control: PLC
Blade Diameter: Φ300-Φ700
Max Processing Size: 3200*2000*230mm
Dimension Of Worktable: 3200*2000mm
Workable Tilting Degree: 0-85°
Worktable Rotation Degree(Optional): 0-90° / 0-360°
Main Motor: 18.5kw
Gross Motor: 24kw
Water Consumption: 4m3/H
Outline Dimension: 6000*4800*3100mm
Gross Weight: 5750kg
Transport Package: Load In A 20 Feet Container
Specification: 6000*4800*3200mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Bridge Cutting Machine
Usage: Granite
Application: Construction
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Highlight:

Laser Stone Bridge Saw Cutting Machine

,

24kw granite gang saw cutting machine

,

Bridge Saw Cutting Machine 3200x2000mm
Basic Infomation
Brand Name: Unique
Certification: API
Model Number: zdqj-700
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets Per Year
Product Description
Laser Stone Granite Bridge Saw Cutting Machine 3200x2000mm
Product Specifications
Attribute Value
Model NO. zdqj-700
Control PLC
Blade Diameter Φ300-Φ700
Max Processing Size 3200*2000*230mm
Dimension of Worktable 3200*2000mm
Workable Tilting Degree 0-85°
Worktable Rotation Degree (Optional) 0-90° / 0-360°
Main Motor 18.5kw
Gross Motor 24kw
Water Consumption 4m3/H
Outline Dimension 6000*4800*3100mm
Gross Weight 5750kg
Transport Package Load in a 20 Feet Container
Specification 6000*4800*3200mm
Trademark UNIQUE
Origin Jinjiang, Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
Type Bridge Cutting Machine
Usage Granite
Application Construction
Source Voltage 380V
Automation Automatic
Cutting Ability High Speed
Customization Available

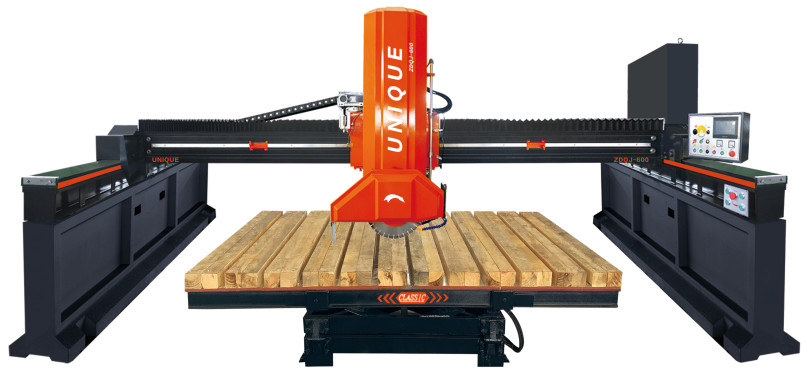

ZDQJ-700 Laser Stone Granite Bridge Saw

The ZDQJ-700 infrared automatic stone bridge cutting machine features three types, utilizing PLC system and human-machine interface. It incorporates ultra-high precision rotary encoder positioning and infrared device, with Chinese & English dual operation language. The machine uses inverter control for left-right feeding, adjusting speed according to stone material, and features a hydraulic lifting system equipped through 4 guide posts with unique side beam protection.

This high-performance machine is constructed with imported quality materials for main spare parts, delivering exceptional cutting efficiency, precision, and stability. It's particularly suitable for high-value granite and large-size marble processing.

Technical Parameters
Parameter Unit ZDQJ-450 ZDQJ-600 ZDQJ-700
Blade diameter mm 300-450 350-600 350-700
Max processing size mm 3200*2000*120 3200*2000*180 3200*2000*230
Dimension of worktable mm 3200*2000 3200*2000 3200*2000
Worktable tilting degree ° 0-85° 0-85° 0-85°
Worktable rotation degree ° 0-90°/0-360° 0-90°/0-360° 0-90°/0-360°
Main motor kw 15 18.5 18.5
Gross motor kw 21 24 24
Water consumption m³/h 4 4 4
Outline dimension mm 6000*4800*2900 6000*4800*3100 6000*4800*3200
Gross weight kg 5250 5500 5750
Our Service
  • Training for machine installation and operation
  • Engineers available for overseas machinery service
  • 24-hour online after-sales service
  • Dedicated support from sales and customer service departments
Frequently Asked Questions
Does this product support customization?

Yes, the ZDQJ-700 bridge saw is available with customization options to meet specific requirements.

How do you ship the products?

The machine is shipped in a 20-foot container for secure transportation.

What is the warranty for the product?

Please contact our sales department for specific warranty information on this machine.
