Home /Products/Bridge Saw Cutting Machine/Bridge Saw Stone Cutter Machine For Granite Marble Quartz

Bridge Saw Stone Cutter Machine For Granite Marble Quartz

1set
MOQ
To Be Negotiated
Price
Bridge Saw Stone Cutter Machine For Granite Marble Quartz
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: ZDBL-600
Control: PLC
Blade Diameter: Φ300-Φ600
Max Processing Size: 3200*2000*170mm
Dimension Of Worktable: 3200*2000mm
Workable Tilting Degree: 0-85°
Worktable Rotation Degree(Optional): 0-90° / 0-360°
Main Motor: 18.5kw
Gross Motor: 24kw
Water Consumption: 4m3/H
Outline Dimension: 5850*3500*2950mm
Gross Weight: 6750kg
Transport Package: Load In A 40 Feet Container
Specification: 5850*3500*2650mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Bridge Cutting Machine
Usage: Granite
Application: Construction
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Highlight:

Stone Cutter Machine For Granite

,

600mm marble bridge cutting machine

,

Stone Cutter Machine Quartz
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: API
Model Number: ZDBL-600
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets Per Year
Product Description
Bridge Saw Stone Cutter Machine For Granite Marble Quartz
Product Specifications
Attribute Value
Model NO. ZDBL-600
Control PLC
Blade Diameter Φ300-Φ600
Max Processing Size 3200*2000*170mm
Dimension of Worktable 3200*2000mm
Workable Tilting Degree 0-85°
Worktable Rotation Degree (Optional) 0-90° / 0-360°
Main Motor 18.5kw
Gross Motor 24kw
Water Consumption 4m³/H
Outline Dimension 5850*3500*2950mm
Gross Weight 6750kg
Transport Package Load in a 40 Feet Container
Specification 5850*3500*2650mm
Trademark UNIQUE
Origin Jinjiang, Fujian, China
HS Code 84641090
Supply Ability 1000 Sets/Year
Type Bridge Cutting Machine
Usage Granite
Application Construction
Source Voltage 380V
Automation Automatic
Cutting Ability High Speed
Customization Available
Product Description

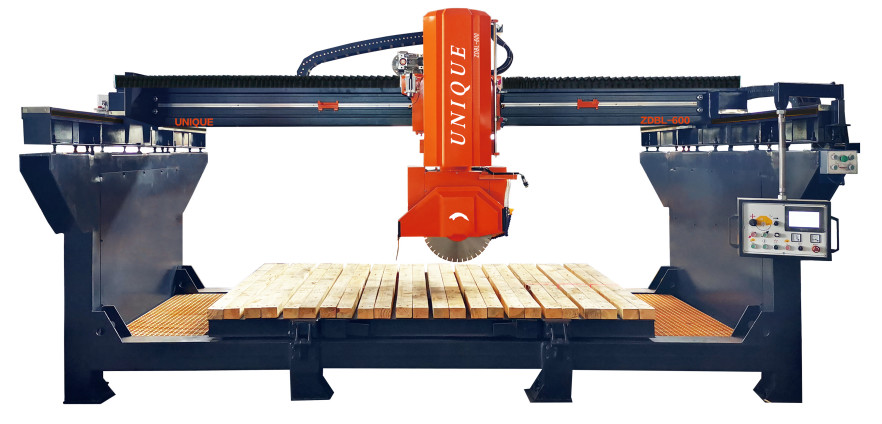

ZDBL-600 Integrated Bridge Cutting Machine

This advanced bridge cutting machine features a PLC system with human-machine intelligent operation interface. The main engine utilizes double hydraulic lifting combined with chrome guide sleeve for minimal clearance, durability, and aesthetic appeal. The multi-layer seal design in the guide sleeve ensures waterproof, dustproof, and leakproof performance.

The side beam incorporates high-precision linear slide tracks with encoder-controlled movement in all directions. Equipped with high-precision magnetic railing ruler detection, it automatically adjusts cutting speed based on stone material properties for superior accuracy. The dedicated stone machinery motor enables 0°-90° cutting head rotation for enhanced processing speed, while the 0°-45° blade tilt capability expands application range.

This integrated machine features a compact structure, user-friendly operation, and efficient cutting precision, making it the ideal choice for processing and chamfering high-value granite and marble.

Technical Parameters
Parameter Unit ZDBL-450 ZDBL-600
Blade diameter mm 300-450 350-600
Max processing size mm 3200*2000*100 3200*2000*180
Dimension of worktable mm 3200*2000 3200*2000
Worktable tilting degree ° 0-85° 0-85°
Worktable rotation degree ° 0-90° 0-90°
Main motor kw 15 18.5
Gross motor kw 21 24
Water consumption m³/h 4 4
Outline dimension mm 6000*4800*2900 6000*4800*3100
Gross weight kg 5250 5500
Our Service
  • Comprehensive training for machine installation and operation
  • Overseas engineering support for machinery servicing
  • 24-hour online after-sales service
  • Dedicated support from sales and customer service departments
Frequently Asked Questions
Does this product support customization?

Yes, this machine is available with customization options to meet specific requirements.

How do you ship the products?

The machine is shipped in a 40-foot container for secure transportation.

What is the warranty for the product?

Please contact our sales department for specific warranty information.
