Home /Products/Bridge Saw Cutting Machine/5 Axis CNC Bridge Cutting Machine For profiling shapes

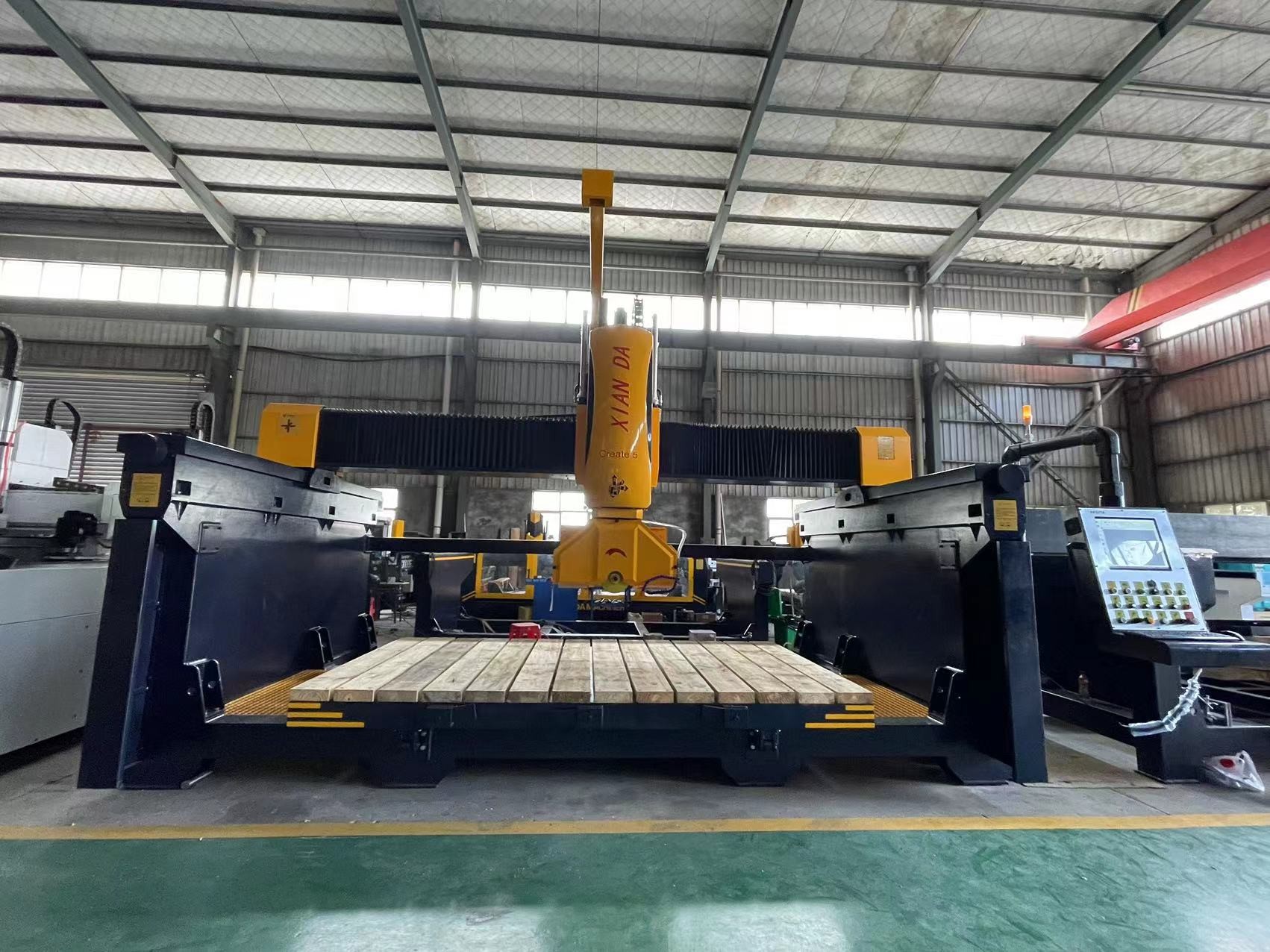

5 Axis CNC Bridge Cutting Machine For profiling shapes

1 set
MOQ
To Be Negotiated
Price
5 Axis CNC Bridge Cutting Machine For profiling shapes
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 5 Axis CNC Bridge Cutting Machine
Blade Material: Diamond
Type: Stone Bridge Cutting Machine
Blade Diameter: 350-600mm
Application: Marble,Granite,stones
Head Rotating Degree: 0-360°
Highlight:

1200mm Circular Saw Diamond Blade

,

100 mm Hole diamond circular blade

,

thin tile cutting blade 1600mm
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CE
Model Number: Create 450/600
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Delivery Time: 30 days
Supply Ability: 1000/Year
Product Description
5 Axis CNC Bridge Cutting Machine For Profiling Shapes
Product Specifications
Attribute Value
Product Name 5 Axis CNC Bridge Cutting Machine
Blade Material Diamond
Type Stone Bridge Cutting Machine
Blade Diameter 350-600mm
Application Marble, Granite, Stones
Head Rotating Degree 0-360°
Model: Create 450/600
Performance: Stable & Precise
Feature: Fast and precise Cutting Speed
Lifting Stroke: 500mm
Types: 5 axis bridge cutting machine
Table Tilting Degree: 0-85°
Blade Diameter Range: 350-600mm
Transport Package: Carton, Wooden Box
Specification: 3400*2000*180mm
Origin: Quanzhou City, Fujian Province, China
Air Speed: 15m/min
Production Capacity: 2000/YEAR
Technical Specifications
Item Value
Outline Dimension 5800*3650*3900mm
Max Processing Size 3400*2000*180mm
Lifting Stroke 500mm
Worktable Size 3400*2000mm
Head Tilting Degree 0-90°
Blade Diameter Range 350-600mm
Air Speed 15m/min
Gross Weight 7500kg
Water Consumption 3m³/h
Key Advantages
  • High Precision: Five-axis linkage technology enables all-round cutting with extreme precision. Coordinate measurement system monitors and adjusts cutting position in real time.
  • High Efficiency: CNC system enables automatic control and intelligent production.
  • Intelligence: Equipped with advanced intelligent operating system.
  • Environmental Protection: Low noise and minimal exhaust emissions.
  • Wide Application: Suitable for stone, woodworking, acrylic, PVC, foam and other industries requiring high-precision cutting.
Product Images
5 Axis CNC Bridge Cutting Machine For profiling shapes 0
5 Axis CNC Bridge Cutting Machine For profiling shapes 1
5 Axis CNC Bridge Cutting Machine For profiling shapes 2
5 Axis CNC Bridge Cutting Machine For profiling shapes 3
5 Axis CNC Bridge Cutting Machine For profiling shapes 4
Quality Control
5 Axis CNC Bridge Cutting Machine For profiling shapes 5
5 Axis CNC Bridge Cutting Machine For profiling shapes 6
Frequently Asked Questions
Q1: Are you a factory or trading company?
A: We are factory.
Q2: Where is your factory located? How can I visit you?
A: Our factory is located in Quanzhou City, Fujian Province, China. You can fly to Xiamen International Air Port or Jinjiang Air Port, and we will pick you up. Welcome to visit our factory.
Q3: How is your quality?
A: We have a very serious control system (PDCA principle and 7S). We guarantee the high performance of our products.
Q4: What should we do if your products cannot run well?
A: Give us detailed report. Analyze the reason. Try to find a way to solve the problem. If it's our problem and not possible to solve, we will give replacement.
Q5: Do you offer free samples?
A: We don't offer free samples. According to our experience, when people get the samples by paying, they will cherish what they get. Although the quantity of sample is small, its cost is higher than normal production.
