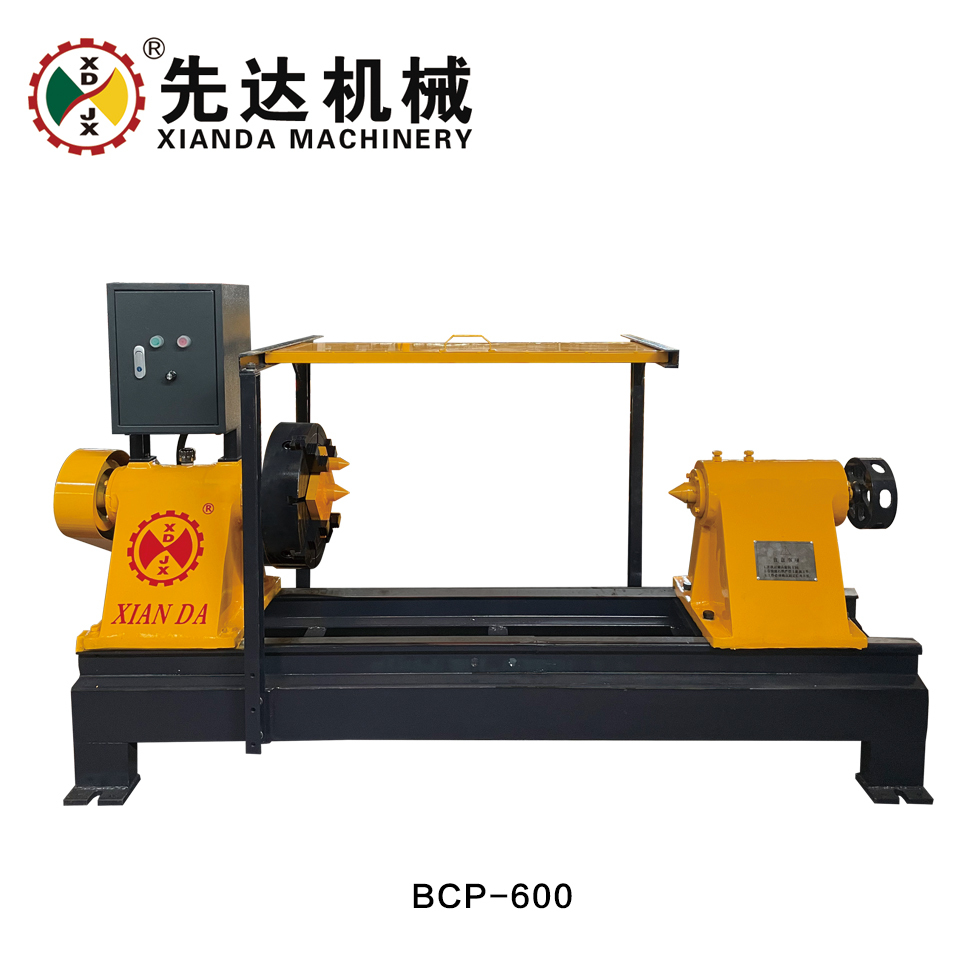

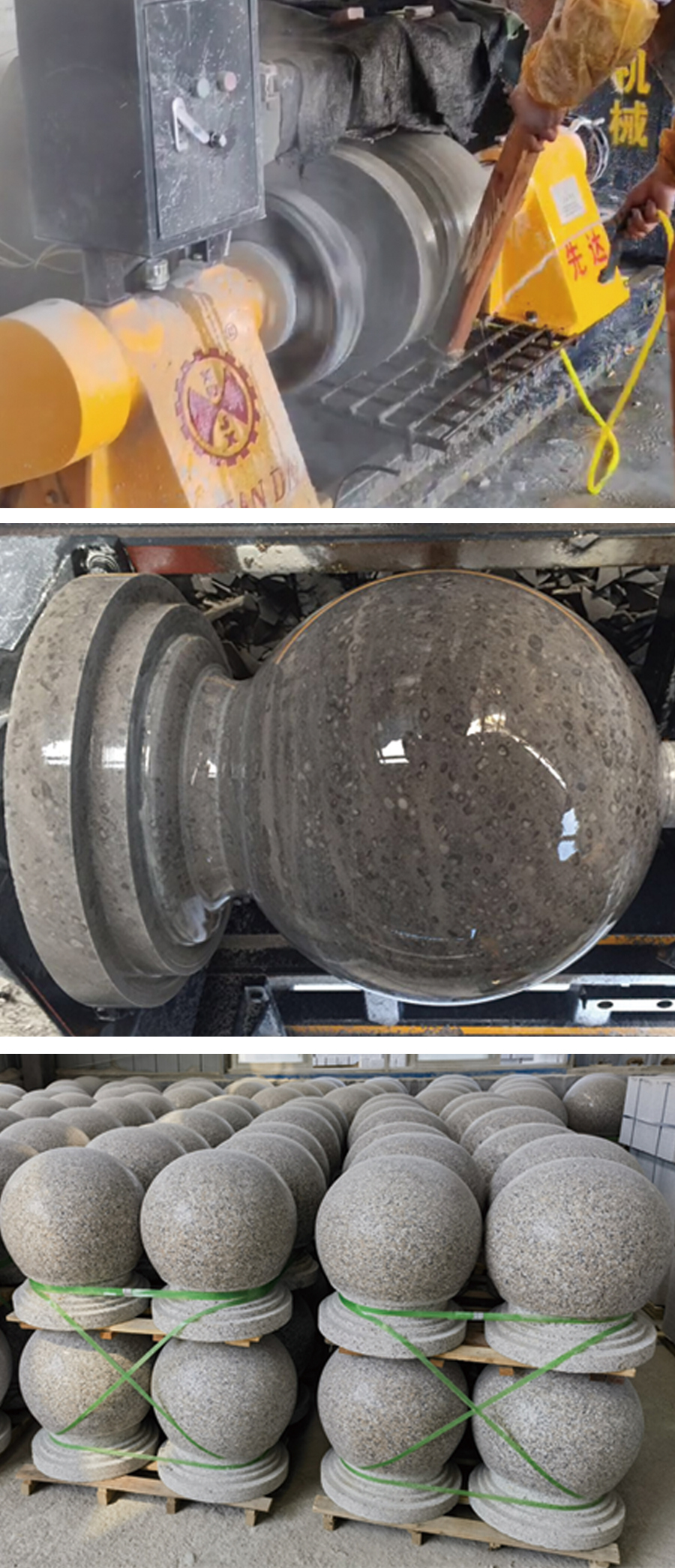

The Round Ball Profiling Machine adopts a gantry-type integrated structure with microcomputer control and optical fiber measurement. This advanced machine is designed to cut any shape of vase, balls, column bases, column caps, and other rotary stone materials. It effectively solves the shortcomings of manual polishing, including inconsistent production quality, high consumption rates, and poor precision.
This fully automatic machine enables efficient operation where, after proper setup, one worker can operate multiple machines simultaneously, significantly improving productivity.

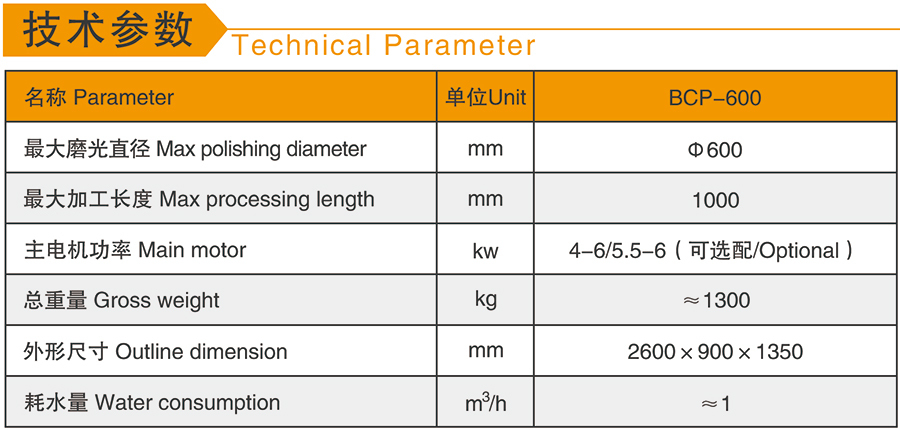

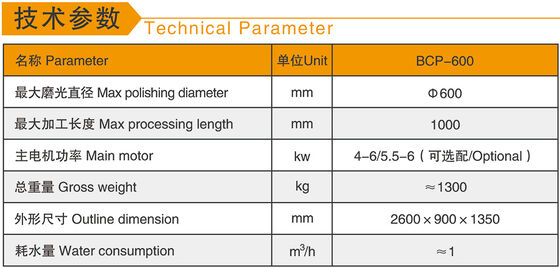

| Specification | BCP-600 |
|---|---|
| Max polishing diameter | φ600mm |
| Max processing length | 1000 |
| Main motor | 4-6/5.5-6kw (OPTIONAL) |
| Gross weight | 1300kg |
| Outline dimension | 2600 x 900 x 1350 |
| Water Consumption | 1m³/h |
