CNC Diamond Wire Saw Machine For Block Quarry And Slabs Cutting

1
MOQ
To Be Negotiable
Price
CNC Diamond Wire Saw Machine For Block Quarry And Slabs Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: Cnc-3000
Control: CNC
Name: Stone Cutting Machine (Diamond Wire Saw Machine)
Function: Cutting Marble, Granite, Slate, Nature Stone, Etc
Max Processing Size: 3000*2000*1500mm
Main Motor: 11kw
Outline Dimension: 7800*6300*3950mm
Gross Weight: 6500kg
Water Consumption: 4m3/H
Control Type: CNC
Transport Package: Load In A 20 Feet Container
Specification: 7800*6300*3950mm
Trademark: Xianda
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: CNC Cutting Machine
Usage: Jadestone
Application: Machinery & Hardware
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Wire Length: 10m
Water Consumption: 6m3/H
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

CNC Diamond Wire Saw Machine

,

Block Quarry diamond saw machine

,

11kw Diamond Wire Saw Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: CE, SGS, ISO9001
Model Number: cnc-3000
Payment & Shipping Terms
Packaging Details: Load in a 20 Feet Container
Supply Ability: 1000 Sets/Year
Product Description
CNC Diamond Wire Saw Machine For Block Quarry And Slabs Cutting
Product Specifications
Attribute Value
Model NO. cnc-3000
Control CNC
Function Cutting Marble, Granite, Slate, Nature Stone
Max Processing Size 3000*2000*1500mm
Main Motor 11kw
Gross Weight 6500kg
Water Consumption 4m3/H
Transport Package Load in a 20 Feet Container
Source Voltage 380V
Automation Automatic
Wire Diameter 0.6-1.8mm
Wire Length 10m
Cutting Precision High
Control System PLC SYSTEM
Product Description
CNC Stone Wire Saw Cutting Machine for marble & granite block
Applications

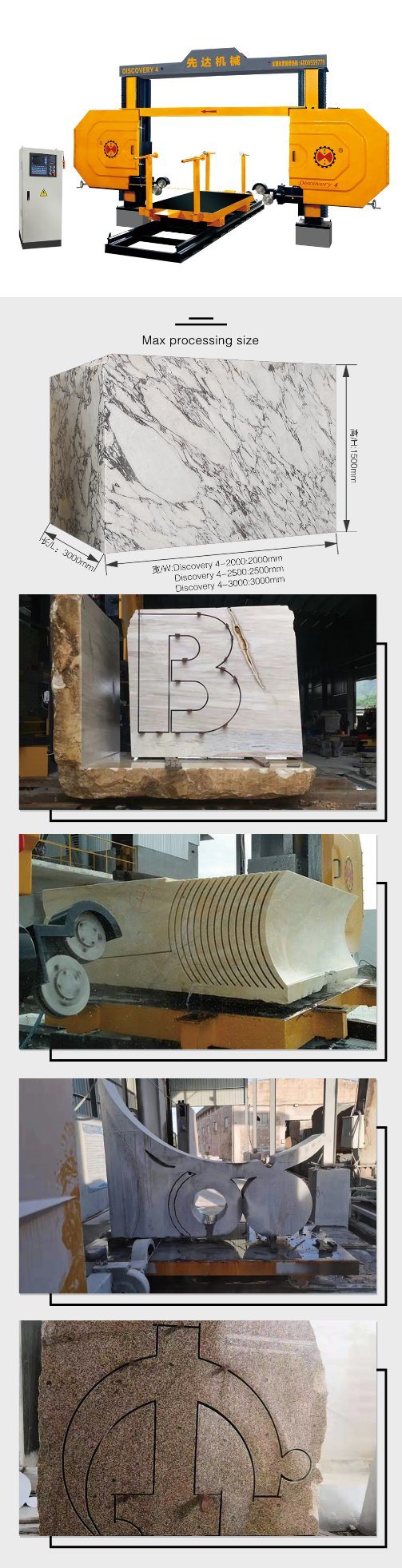

CNC-2000/2500/3000 Diamond Rope Saw function: Cutting column slabs, semi circular slabs, English letters, and other diversified complicated special shapes. Materials include marble, granite, natural stone etc.
CNC Diamond Wire Saw Machine For Block Quarry And Slabs Cutting 0

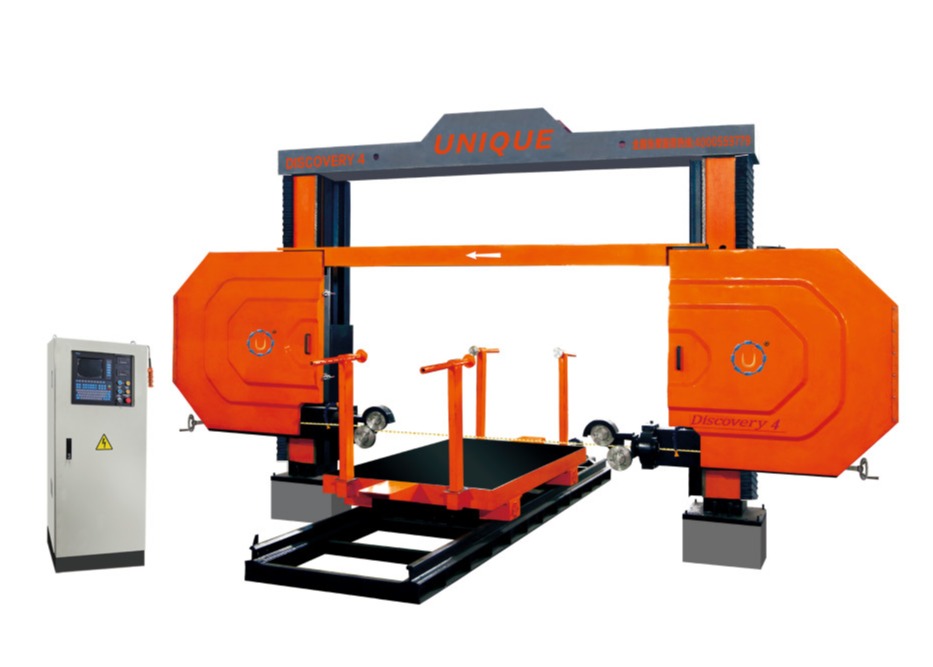

The CNC Diamond Wire Saw Stone Cutting Machine adopts CNC system with Four-Axis linkage, capable of processing circular stone slabs, roman columns, numerals, letters, Chinese characters and other designed shapes.
Key Features
  • Heavy load bearing structure with four orbits on each upright column for balance adjustment
  • Synchronized lifting system with enhanced accuracy through lead screw and double nuts
  • CNC-controlled guide wheel for precise diamond wire rope cutting direction
  • Worktable operates via lead screw and railway
  • Automatic wire break alarm system
  • 1600mm diameter aluminum wheel with oil pump controlled rope tension
Technical Parameters
Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size (L*W*H) mm 3000*2000*1500 3000*2500*1500 3000*3000*1500
Main motor Kw 7.5 7.5 7.5
Gross weight Kg 5000 5500 6000
Water consumption M3/h 4 4 4
About Xianda Machinery

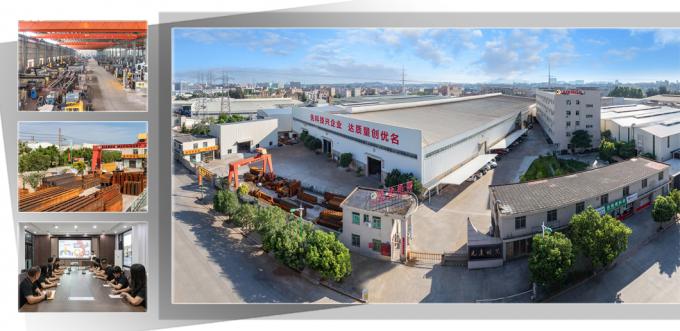

Fujian Jinjiang Xianda Machinery Co. Ltd, established in 1985, specializes in developing and producing column making machines, wire saw stone cutting machines, block trimming machines, and other stone processing equipment. Certified with ISO9001 and CE, we maintain "Advanced Technology and High Quality" as our aim.
CNC Diamond Wire Saw Machine For Block Quarry And Slabs Cutting 1 CNC Diamond Wire Saw Machine For Block Quarry And Slabs Cutting 2
Frequently Asked Questions
Does this product support customization?
Yes, customization is available based on your requirements.
What is the warranty for the product?
All machines come with one year warranty.
How do you ship the products?
Machines are typically loaded in 20 feet containers for shipping.
