Name: XIANDA 1200 Stone Splitting Machine, Stone Band‑Saw & Diamond Wire Saw for Marble Granite Thin Block Cutting, Tombstone Blank Processing
Brand: Fujian Xianda Machinery co.,ltd
SKU: Expand 450MC/450L-MC
Price: 27,508.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Suitable Material: Granite, Marble, Onyx, Semi‑precious Stone, Engineered Stone, Terrazzo

Model: 1200 / 1600 / 2200

Machine Type: Dual‑Tool Stone Splitting Machine(Stone Band‑Saw & Diamond Wire Saw)

Machine Weight(Model‑1200): 2.5 T

Overall Dimension(Model‑1200): 3500×3700×2200 mm

Optional Cutting Tool: Stone Band‑saw Blade(2‑7mm); Diamond Wire Saw(Φ6.3‑7.3mm)

Water Consumption: 2 M³/h

Main Motor Power: 7.5 KW

Highlight:

1200 stone splitting machine

diamond wire saw for marble

granite thin block cutting machine

Basic Infomation

Place of Origin: Jinjiang, Fujian, China

Brand Name: Xianda Machinery

Certification: CE, IAF-recognized ISO9001

Model Number: Expand 450MC/450L-MC

Payment & Shipping Terms

Packaging Details: Wire rope lashing,Suitable for sea/air/land/rail transportation.

Delivery Time: 1 Month

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 1000 Sets/Year

Gallery

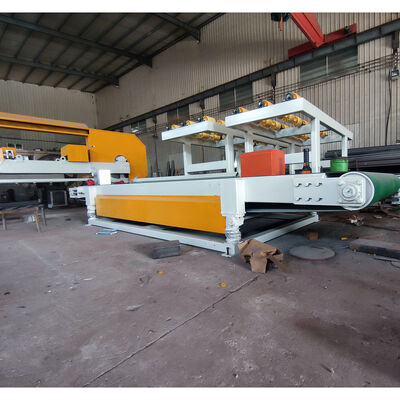

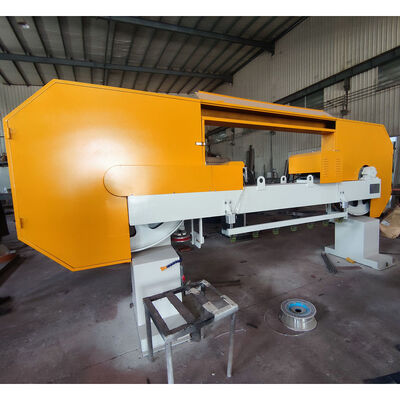

XIANDA 1200 Stone Splitting Machine, Stone Band‑Saw & Diamond Wire Saw for Marble Granite Thin Block Cutting, Tombstone Blank Processing

Product Description

XIANDA 1200 Stone Splitting Machine

Stone Band-Saw & Diamond Wire Saw for Marble Granite Thin Block Cutting, Tombstone Blank Processing

Why Choose XIANDA & Our Brand Strength

XIANDA is a professional manufacturer specializing in CNC stone processing machinery. Our factory holds IAF-recognized ISO9001:2015 Quality Management System Certification and CE safety certification. Adhering to standardized production and strict quality control, we deliver stable, high-precision and export-compliant machines for global markets.

We integrate independent R&D, precision manufacturing and complete after-sales services, providing reliable solutions for stone cutting, chamfering and custom profiling. Supported by flexible trade terms, full export documentation and lifelong online technical support, we supply cost-effective and durable stone machinery for worldwide customers.

Product Overview

This dual-tool stone splitting machine is independently developed by XIANDA Machinery. One machine supports two interchangeable cutting tools: stone band-saw blade and diamond wire saw. Customers can switch tools according to stone hardness, which greatly reduces equipment investment and saves factory floor space.

Human-friendly touch-screen HMI allows operators to set feeding speed and kerf compensation, and monitor real-time working data including motor current and wire tension. Ideal for small-to-medium stone factories for thin-block slicing of tombstone blanks, cultural stone, precious stone and artificial stone.

Main Features

Dual interchangeable cutting tools - Supports stone band-saw blade (2-7 mm kerf) and diamond wire saw (Φ6.3-7.3 mm). Stone band-saw creates narrow kerf for high material yield, perfect for marble, onyx and semi-precious stone. Diamond wire saw delivers long service life for hard granite. Quick tool replacement.
Fixed cutting head with anti-shift press-roller system - Elastic press rollers under cutting head clamp stone tightly while cutting, avoid workpiece bounce, reduce chipping edge and guarantee consistent slice thickness. Cutting head is fixed-structure for vertical 90° splitting only, no tilting function.
Complete automatic feeding carriage system - Composed of conveyor belt and supporting roller racks. Workpiece moves together with carriage during cutting process. Stable conveying for heavy stone blocks. No rotary or vacuum worktable.
Touch-screen parameter control - Digital adjustment for feeding speed and kerf compensation. Real-time monitoring for main motor current, cutting status and wire tension. Easy-to-learn operation for workshop workers. Parameter setting only, DXF / CAD file import is not supported.
Compact layout & low operating cost - Model-1200 total weight 2.5 ton, small footprint. Water consumption 2m³/h. Well-suited for medium and small stone processing workshops. Standard models 1200 /1600 /2200, custom working width supported.

Application Range

Tombstone & monument blank vertical splitting
Cultural stone, paving small block slicing
Precious marble, onyx, semi-precious stone thin slab production
Engineered stone, terrazzo block cutting
Reprocessing for leftover small stone blocks

Technical Parameters

Parameter	Unit	Value
Model	/	1200 / 1600 / 2200
Machine Type	/	Dual-Tool Stone Splitting Machine (Stone Band-Saw & Diamond Wire Saw)
Max Cutting Width (Model-1200)	mm	1250
Max Cutting Thickness	mm	100
Feeding Speed	mm/min	0-177
Main Motor Power	KW	7.5
Total Installed Power	KW	8.99
Water Consumption	m³/h	2
Machine Weight (Model-1200)	T	2.5

Minimum Order Quantity (MOQ)

MOQ: 1 Unit

Shipping Terms

Shipping Options: FOB, CIF, DAP and DDP trade terms are available. We offer sea freight for cost-effective bulk shipments, air freight for faster delivery, and land transport for regional orders.

Packaging: Machines are packed in heavy-duty custom wooden crates with shock-absorbing materials to ensure damage-free transit.

Documentation: We handle all export documentation, including customs declarations, technical certificates and compliance documents, to ensure seamless international shipment.

Warranty & Support

Warranty Period: 12 months warranty for machine components and PLC control system (excluding consumable parts).

Technical Support: Lifetime online support for operation guidance, troubleshooting and maintenance. On-site service is available within 72 hours, subject to regional availability.

Frequently Asked Questions

Q1: What does dual-tool design mean for this machine?

A: This machine supports two replaceable cutting tools: stone band-saw blade and diamond wire saw. You can swap tools according to stone hardness. Both tools are for vertical straight splitting. Band-saw blade brings narrow kerf to save raw material; diamond wire saw performs better for hard granite.

Q2: What is the maximum processing capacity? Are other sizes available?

A: For Model-1200: max cutting width 1250 mm, max cutting thickness 100 mm. We also provide Model-1600 and Model-2200. Custom-made working width is acceptable.

Q3: What types of stone materials can this machine process?

A: Suitable for marble, granite, onyx, semi-precious stone, engineered stone and terrazzo. Mainly for thin-block slicing and splitting. Not for super-large heavy quarry blocks.

Q4: Is the machine operation friendly for new users?

A: Equipped with a dedicated human-machine interface with English system language and simple operating logic. It supports both manual parameter input and automatic path generation after file import. We provide detailed English operation manuals and lifelong online guidance, so new operators can master basic operation quickly.

Q7: What certifications does this machine have for global sales?

A: This CNC bridge saw holds CE certification (mandatory for legal sales and customs clearance in European markets) and ISO quality management system certification. The ISO certificate is globally recognized, verifying our standardized production and stable quality control system, delivering reliable machine performance and trustworthy service for worldwide customers.
