Home /Products/Stone Slab Cutting Machine/Circular Arc Slab Band Saw Slab Stone Cutting Machine 1300mm

Circular Arc Slab Band Saw Slab Stone Cutting Machine 1300mm

1set
MOQ
To Be Negotiated
Price
Circular Arc Slab Band Saw Slab Stone Cutting Machine 1300mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: YHJJ-600-2000
Control: PLC
Column Of Diameter: Φ600mm-Φ2000mm
Max Cutting Width: 1300mm
Outline Dimension: 6300*5150*2100mm
Main Motor: 4kw
Gross Motor: 9.5kw
Gross Weight: 4500kg
Water Consumption: 4m3/H
Color: White,Blue
Transport Package: Load In A 20 Feet Container
Specification: 6300*5150*2100mm
Trademark: UNIQUE
Origin: Jinjiang, Fujian, China
HS Code: 84641090
Supply Ability: 1000 Sets/Year
Type: Stone Cutting Machine
Usage: Marble
Application: Construction
Source Voltage: 380V
Automation: Automatic
Cutting Ability: High Speed
Customization: Available | Customized Request
Highlight:

Stone Cutting Machine 1300mm

,

marble cutting machine 1300mm

,

600mm Stone Cutting Machine
Basic Infomation
Place of Origin: China
Brand Name: Unique
Certification: API
Model Number: YHJJ-600-2000
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation.
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets Per Year
Product Description

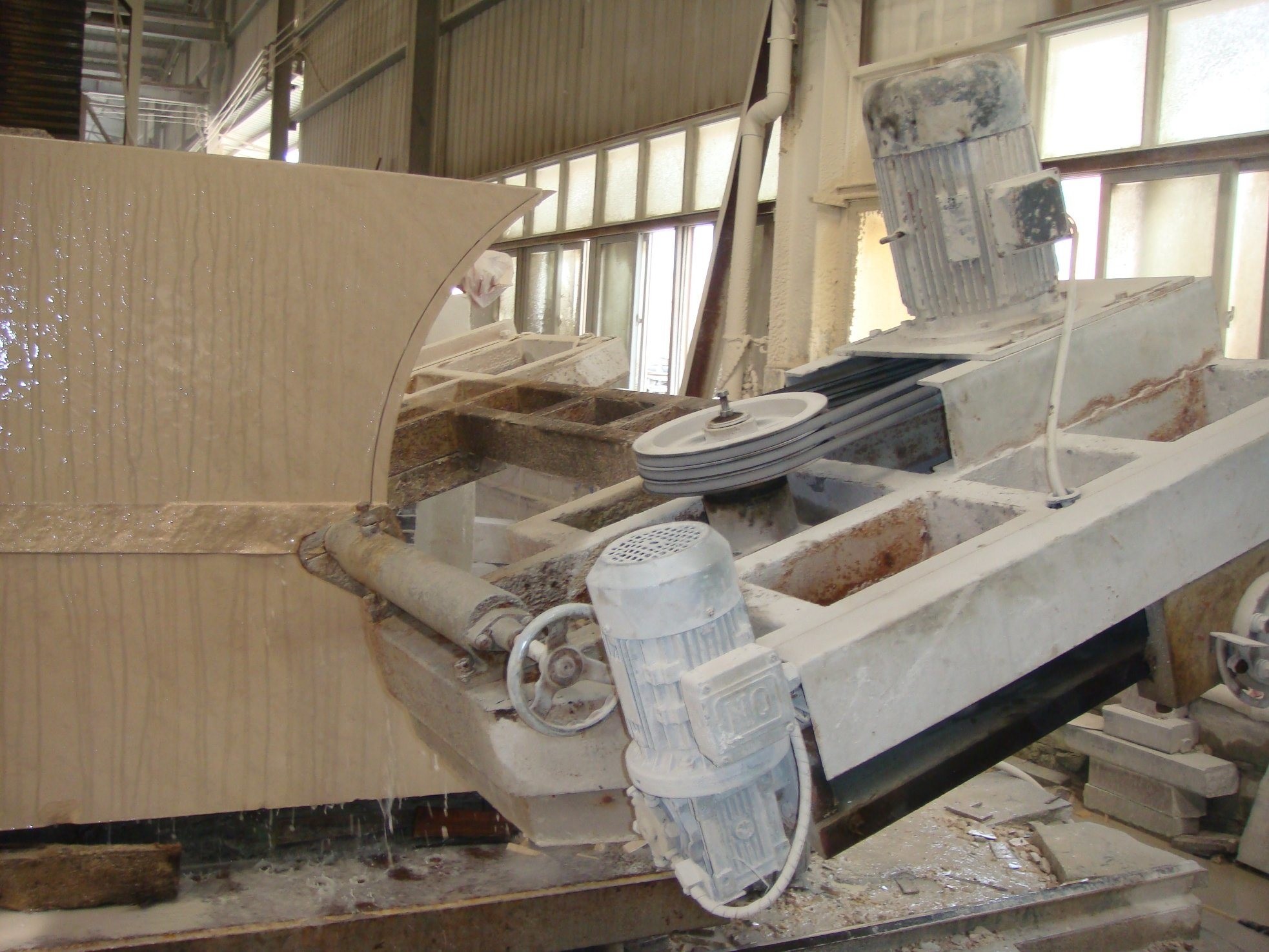

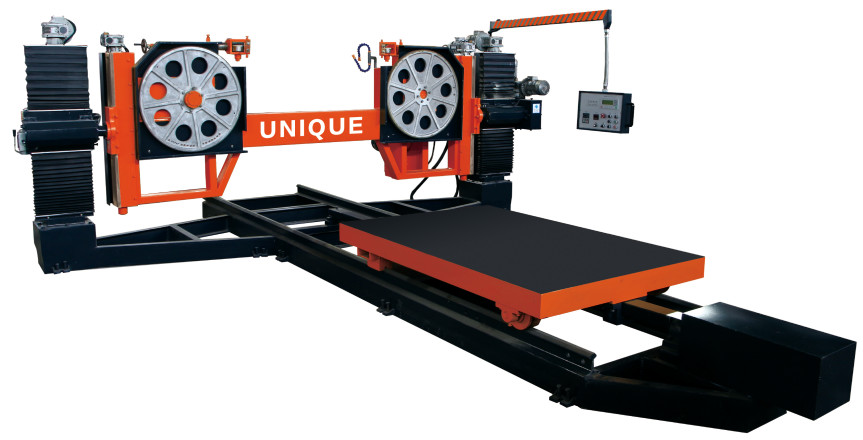

Circular Arc Slab Band Saw Cutting Machine


YHJJ-600-2000 granite stone  machine&stone cutting machine&marble cutting machine adopts the latest structure design, the saw blade which operates around the central axis, slicing blocks is controled by the worktable automatic feeding. It has the featrues of lower energy consumption and small saw kerfs(3mm sawkerfs), saving blocks, simple operation, high precision and high efficiency. Maximum's processing diameter range is 600 mm to 2000mm. It is recommended for processing the column slab at marble block.

Technical Parameter
Parameter
Unit
YHJJ-600-2000
Column of diameter


mm
600-2000
Max cutting width
mm
1300
Outline dimension
mm
6300*5150*2100
Main motor
kw
4
Gross motor
kw
9.5
Gross weight
kg
4500
Water consumption
m3/h
4


Our Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.
