CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

1 Set
MOQ
To Be Negotiable
Price
CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Type: CNC Dual-Purpose Stone Cutting Machine
Cutting Method: Band Saw + Diamond Wire Saw
Maximum Cutting Width: 1250 Mm
Maximum Cutting Thickness: 100 Mm
Conveyor Speed: 0–17 M/min
Main Motor Power: 7.5 KW
Diamond Wire Diameter: 6.3–7.3 Mm
Available Models: 1200 / 1600 / 2200, With Customized Widths Available
Highlight:

7.5KW Main Motor CNC Dual-Purpose Stone Cutting Machine

,

1250mm Max Cutting Width Diamond Wire Saw Machine

,

Variable Conveyor Speed Stone Splitting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: YCWK-1200/1600/2200
Payment & Shipping Terms
Packaging Details: Suitable for sea transport
Delivery Time: 25-35 working days after deposit
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000 Sets/Year
Product Description

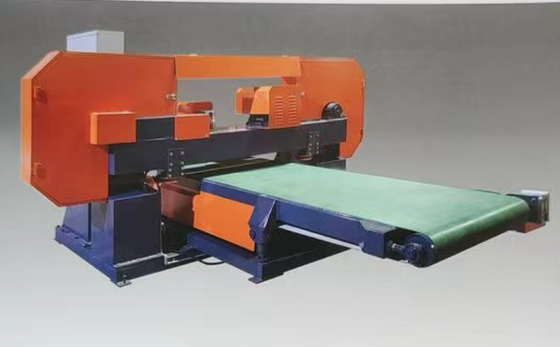

CNC Dual-Purpose Stone Splitting Machine

CNC Dual-Purpose Stone Cutting Machine | Band Saw & Wire Saw Integrated | Model 1200/1600/2200

The CNC Dual-Purpose Stone Cutting Machine Type 1200 is a versatile, high-efficiency cutting solution engineered for modern stone fabrication workshops. By integrating both a band saw and a wire saw into a single CNC-controlled platform, this machine eliminates the need for separate cutting stations, reducing floor space requirements and material handling time.

Designed for processing granite, marble, quartz, engineered stone, and other natural or artificial stone slabs, the Type 1200 delivers precise, repeatable cuts with a maximum cutting width of 1250mm and cutting thickness of 100mm. The variable-speed conveyor (0-177 mm/min) allows operators to fine-tune feed rates based on material hardness and desired finish quality.

With a robust 2.5-ton welded steel frame, a 7.5KW main motor, and a closed-loop water cooling system consuming only 2 m³/h, this machine balances cutting performance with energy and resource efficiency.


Key Features & Benefits
Feature Benefit
Dual-Purpose Design (Band Saw + Wire Saw) One machine handles both straight-line slab cutting and intricate contour cutting; reduces capital investment and floor space

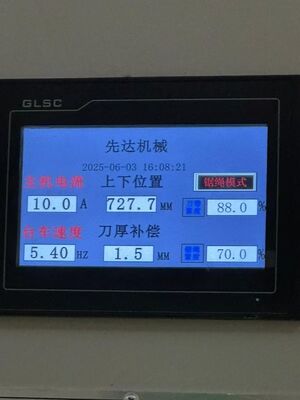

CNC Control System Programmable cutting paths ensure repeatable accuracy and minimize operator error
1250mm Max Cutting Width Accommodates standard and oversize stone slabs in a single pass
Variable Conveyor Speed (0-177 mm/min) Optimize feed rate for soft marble or hard granite; balance speed with cut quality
7.5KW Main Motor Sustained high-torque cutting through dense materials without stalling
Low Water Consumption (2 m³/h) Closed-loop cooling reduces water waste and slurry management costs
Multiple Models (1200 / 1600 / 2200) Scalable capacity to match workshop throughput; custom widths available on request

Technical Specifications
Parameter Value
Model Type 1200 (1600 & 2200 also available)
Maximum Cutting Width 1250 mm
Maximum Cutting Thickness 100 mm
Conveyor Speed 0-177 mm/min (variable)
Large Wheel Diameter 1100 mm
Band Saw Length 8300 mm
Wire Saw Length 8200 mm
Blade Thickness 2-7 mm
Rope Diameter 6.3-7.3 mm
Main Motor Power 7.5 KW
Total Power 8.99 KW
Water Consumption 2 m³/hour
Total Weight 2.5 tons
Machine Dimensions (L×W×H) 3500 × 3700 × 2200 mm

Applications
  • Granite and marble slab cutting & sizing
  • Quartz and engineered stone processing
  • Curved / contour cutting via wire saw mode
  • Straight-line rip cutting via band saw mode
  • Custom architectural stone elements
  • Tile and countertop blank preparation

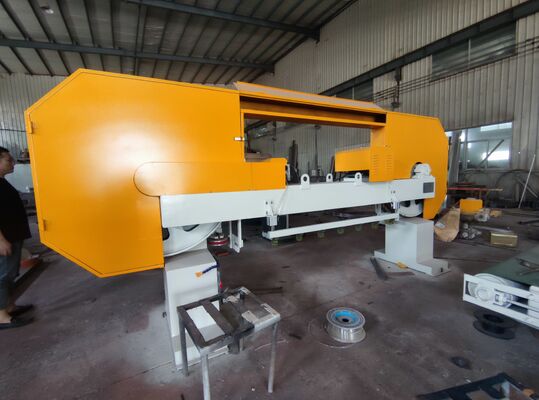

Xianda Family

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

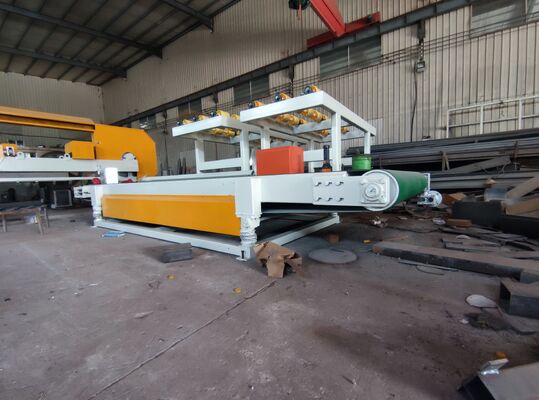

Xianda Workshop

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

CNC Dual-Purpose Stone Cutting Machine with 7.5KW Main Motor 1250mm Max Cutting Width and Variable Conveyor Speed

Frequently Asked Questions
Q1: What is the difference between the band saw and wire saw functions?
The band saw is optimized for fast, straight-line cuts through slabs, while the wire saw enables curved or contoured cuts for custom shapes. The dual-purpose design lets you switch between modes on the same machine.
Q2: Which stone materials can this machine cut?
It is suitable for granite, marble, limestone, travertine, quartz, engineered stone, and most natural or artificial stone materials within the 100mm thickness limit.
Q3: Are larger models available?
Yes. Models 1600 and 2200 offer increased cutting width. Custom width configurations can also be arranged to meet specific production requirements.
Q4: What is the delivery time?
Standard models typically ship within 30-45 days after order confirmation. Custom configurations may require additional lead time.
Q5: Does the machine come with installation and training support?
Yes. We provide overseas installation guidance, operator training, and a comprehensive user manual. Remote technical support is available after commissioning.
Q6: What are the power and water supply requirements?
The machine requires a 3-phase industrial power supply (specify voltage by destination country) and a water source capable of sustaining 2 m³/h for the cooling system.
