CNC Diamond Wire Saw Machine with 360° Rotating Table and 15KW Spindle for High Cutting Precision

1
MOQ
To Be Negotiable
Price
CNC Diamond Wire Saw Machine with 360° Rotating Table and 15KW Spindle for High Cutting Precision
Features Gallery Product Description Request A Quote
Features
Specifications
Gross Weight: 5500kg
Name: Diamond Wire Saw Machine
Wheel Diameter: 1600mm
Transport Package: Plastic Package, Suitable For Sea Transportation
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Key Words: Stone Machine
Wire Length: 10m
Max Processing Size: 2000*3000*1500mm
Max Processing Size: 3000*2500*1500mm
Wire Diameter: 0.6-1.8mm
Automation: Automatic
Water Consumption: 6m3/H
Control Type: CNC
Cutting Length: 20-60m
Diameter: 8.5mm To 11.5mm
Cutting Precision: High
Spindle: 15KW
Trolley Size: 1400*2500mm
Adjustment Distance: 450mm
Gross Motor: 11kw
Control System: PLC SYSTEM
Rated Power: 2.2kw
Highlight:

360° Rotating Table Diamond Wire Saw Machine

,

15KW Spindle CNC Wire Saw Machine

,

High Cutting Precision Stone Cutting Machine
Basic Infomation
Place of Origin: Jinjiang, Fujian, China
Brand Name: Xianda Machinery
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Model Number: CNC-2000/2500/3000
Payment & Shipping Terms
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 1000 Sets/Year
Product Description
CNC Diamond Wire Saw Machine with 360° Rotating Table
The CNC Diamond Wire Saw Machine is a precision stone cutting system designed for cutting, trimming and profiling granite, marble and other natural stones. Featuring a 360° rotating table, this machine delivers exceptional cutting accuracy and versatility for various stone processing operations.
Key Specifications
Attribute Value
Gross Weight 5500kg
Wheel Diameter 1600mm
Wire Length 16.7m
Max Processing Size 2000*3000*1500mm
Wire Diameter 0.6-1.8mm
Control Type CNC
Spindle Power 15KW
Certifications API, CCC, SONCAP, GOST, ISO, CE, SGS, IAF

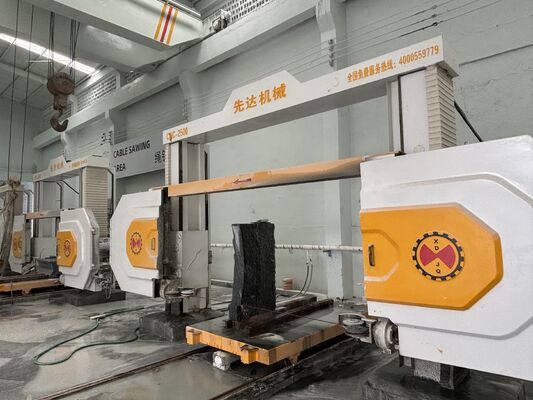

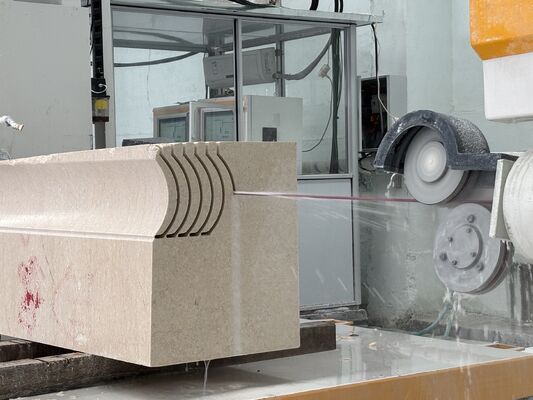

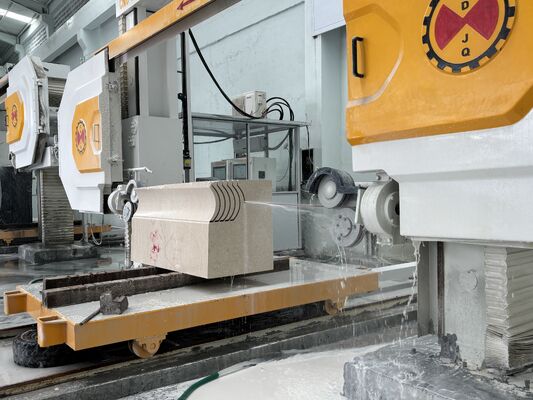

CNC Diamond Wire Saw Machine with rotating table cutting stone Close-up view of diamond wire saw cutting operation
Technical Specifications
Model Max Processing Size Wheel Diameter Trolley Size Main Motor Gross Weight Water Consumption
CNC-2000 2000*3000*1500mm 1600mm 1300*2500mm 11kw 5500kg 4m³/h
CNC-2500 2500*3000*1500mm 1600mm 1300*2500mm 11kw 5750kg 4m³/h
CNC-3000 3000*3000*1500mm 1600mm 1300*2500mm 11kw 6000kg 4m³/h
Key Features
  • CNC control system for precise operation
  • 360° rotating table for multi-angle cutting
  • High cutting precision with diamond wire technology
  • Robust construction with 15T table bearing capacity
  • Energy efficient with only 4m³/h water consumption
  • Multiple international certifications including CE and ISO
  • Plastic packaging suitable for sea transportation
Applications
  • Precision cutting of granite and marble slabs
  • Custom shape cutting for architectural stone elements
  • Stone profiling and edge treatment
  • Monument and sculpture production
  • Industrial stone processing operations
Xianda Family
Xianda Machinery team and facilities Xianda Machinery manufacturing environment Xianda Machinery production team
Xianda Workshop
Xianda workshop manufacturing area Xianda workshop equipment overview Xianda workshop production line Xianda workshop machinery assembly Xianda workshop quality control Xianda workshop technical area Xianda workshop storage area Xianda workshop assembly line Xianda workshop testing area Xianda workshop finishing area Xianda workshop complete facility
Customization Options

Brand: XIANDA MACHINERY

Models Available: CNC-2000, CNC-2500, CNC-3000

Minimum Order: 1 SET

Delivery Time: 1 month

Payment Options: L/C, T/T, D/P, Paypal

Support & Services
  • 24/7 technical assistance
  • Installation and maintenance services
  • Operator and safety training programs
  • Custom modifications and upgrades
  • Complete spare parts availability
  • 1-year warranty coverage
Packaging & Shipping
The machine is securely packaged in polystyrene foam and cardboard, then placed in a reinforced wooden crate for safe sea transportation. Special packaging solutions are available upon request.
Frequently Asked Questions
What certifications does this machine have?
The machine is certified by API, CCC, SONCAP, GOST, ISO, CE, SGS and IAF.
What is the production capacity?
Our annual production capacity is 1000 sets.
What is the wire speed range?
The wire speed is adjustable from 0-40m/s.
