CNC 4 Axis Diamond Wire Saw Machine for Stone Block Cutting and Profiling
Product Overview
The 4-Axis CNC Diamond Wire Saw Machine is an advanced stone cutting solution designed for high-precision processing of granite, marble, and other natural stones. Equipped with a CNC control system, four-axis linkage technology, and a large-diameter diamond wire cutting system, this machine delivers excellent cutting accuracy, stable performance, and efficient stone processing capability.
This CNC diamond wire saw machine is widely used for cutting stone blocks, slabs, curved panels, columns, letters, numbers, and customized stone shapes. It is an ideal choice for stone processing factories, monument manufacturers, architectural stone suppliers, and natural stone workshops.
- 360° Servo-Rotary Table: Cuts 360° cylinders, four-side dressing, and 3D reliefs without repositioning
- 16-Surface Slideway + 28 Rollers: Zero backlash, 20-ton load capacity, vibration-free wire guidance
- S-Type Waterproof Gearbox: Sealed against sludge, triple the gearbox lifespan
- 15 kW Permanent-Magnet Motor: Constant torque at 20-40 m/s, 15% energy savings
- Plus Frame Reinforcement: Absorbs 20-ton loads for superior stability

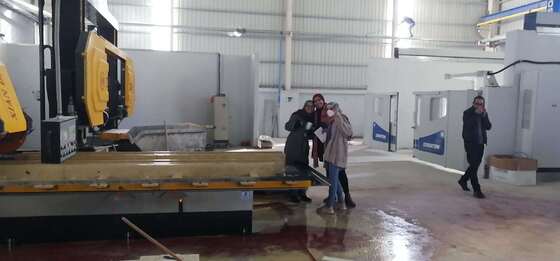

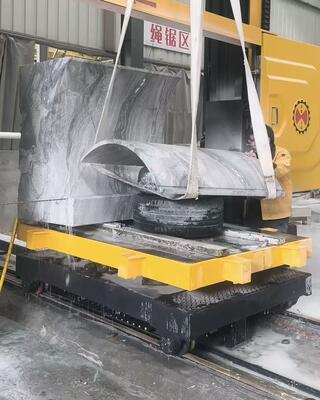

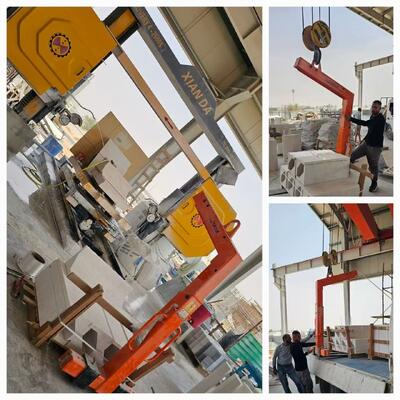

Machine Gallery
Technical Specifications
| Parameter |
Discovery 4-2500 |
Discovery 4-2500SA |
Discovery 4-3000 |
Discovery 4-3000SA |
| Maximum Processing Size |
2500 * 3000 * 1500 mm |
2500 * 3000 * 1500 mm |
3000 * 3000 * 1500 mm |
3000 * 3000 * 1500 mm |
| Wheel Diameter |
1600 mm |
1600 mm |
1600 mm |
1600 mm |
| Table Size |
1400 * 2000 mm |
1400 * 2000 mm |
1600 * 2500 mm |
1600 * 2500 mm |
| Table Bearing Weight |
20 Tons |
20 Tons |
20 Tons |
20 Tons |
| Table Rotation Angle |
0-360° |
0-360° |
0-360° |
0-360° |
| Wire Speed |
20-40 m/s |
20-40 m/s |
20-40 m/s |
20-40 m/s |
| Main Motor Power |
11 kW |
11 kW |
11 kW |
11 kW |
| Control Mode |
Ordinary Motor Drive |
Servo Motor Drive |
Ordinary Motor Drive |
Servo Motor Drive |
| Overall Dimension |
7800*6800*4250 mm |
7800*6800*4250 mm |
8800*6800*4250 mm |
8800*6800*4250 mm |
| Gross Weight |
Approx. 7750 kg |
Approx. 7750 kg |
Approx. 8000 kg |
Approx. 8000 kg |
| Water Consumption |
Approx. 3 m³/h |
Approx. 3 m³/h |
Approx. 3 m³/h |
Approx. 3 m³/h |
Applications
- Granite Block Cutting
The machine is suitable for granite quarry and stone processing factories for granite block cutting, large stone shaping, and custom architectural stone production.
- Marble Processing
For marble manufacturers, this machine can produce marble panels, curved marble components, decorative stone products, and luxury interior stone designs.
- Monument and Tombstone Manufacturing
The CNC diamond wire saw machine can process tombstones, memorial stones, stone lettering, and custom engraved stone products.
- Architectural Stone Fabrication
Widely used for hotel decoration projects, villa stone applications, building facades, landscape stone, and stone artworks.
Compatible Materials
This 4-axis CNC diamond wire saw machine can process granite, marble, limestone, sandstone, travertine, and other natural stones. Compatible materials include granite, marble, quartzite, basalt, and engineered stone.
Frequently Asked Questions
What materials can this CNC diamond wire saw machine cut?
It is mainly used for cutting granite, marble, limestone, travertine, and other natural stones.
What products can this machine process?
It can produce stone blocks, slabs, curved panels, columns, tombstones, letters, numbers, and customized stone shapes.
What is the maximum processing size?
The maximum processing size can reach 3000 * 3000 * 1500 mm, depending on the model.
What is the table loading capacity?
The rotary worktable can support up to 20 tons, suitable for large stone processing.
What is the advantage of a 4-axis CNC diamond wire saw machine?
The 4-axis CNC system with 360° rotary table enables precise cutting of complex shapes with higher efficiency and less material waste.
What is the wire speed and motor power?
The diamond wire speed is 20-40 m/s, and the main motor power is 11 kW.
Is this machine suitable for granite and marble factories?
Yes. It is ideal for stone processing factories, monument manufacturers, and architectural stone suppliers.
How can I choose the right model?
The model depends on stone size, material type, processing requirements, and production capacity. Our engineers can recommend the suitable solution.
Our Manufacturing Facility
Ordering & Shipping Information
Minimum Order Quantity: 1 machine
Shipping: Sea freight to nearest port included
Incoterms: FOB, CIF, DDP optional
Lead Time: 35 days stock / 50 days custom
Payment Terms: T/T 30% deposit, 70% before shipment; L/C at sight accepted
